Features
- mini DisplayPort 1.2 / HDMI 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts, unidirectional
- mini DisplayPort male to HDMI-A male
- High purity copper conductors and triple shielding
- 100% tested for professional AV applications

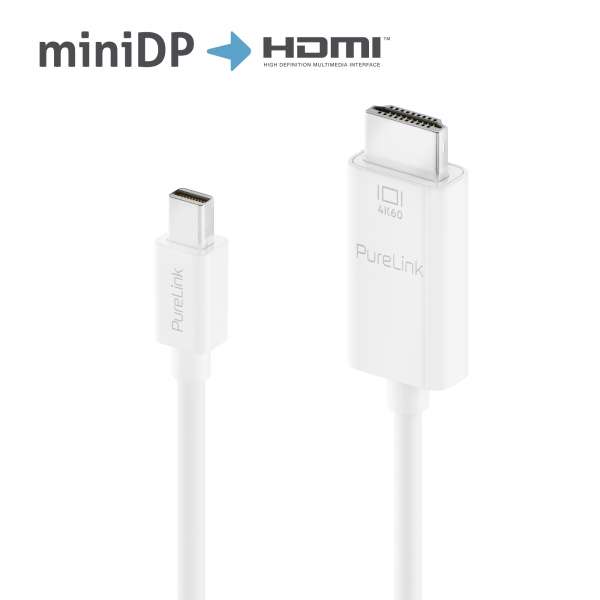

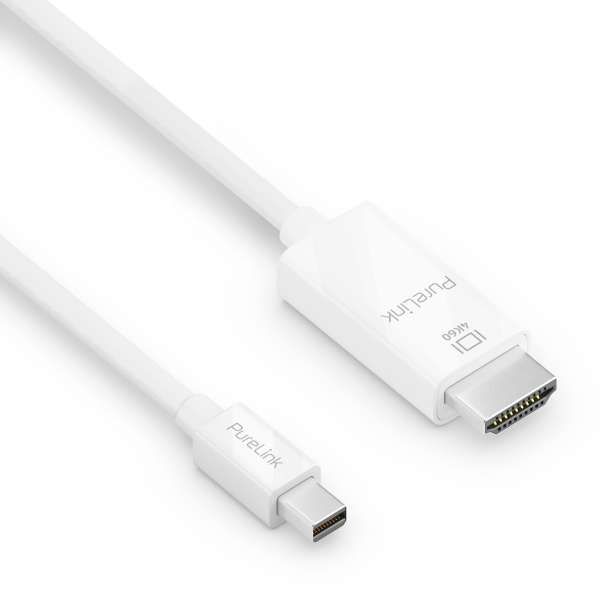

Premium Active 4K mini DisplayPort / HDMI Cable – 3.00m, White
The IS2100-030 from PureLinks iSeries is a 3.00 meter long and unidirectional mini DisplayPort to HDMI cable in white colour, equipped with connector housings made of ABS plastic. The cable connects a mini DisplayPort source device according to the HBR2 standard to an HDMI display device and enables a maximum transfer rate of 18 Gbps for resolutions up to 4K UltraHD 60Hz. The cable features connectors with gold-plated precision contacts and high-purity, stranded, tinned copper conductors with triple shielding. The cables are 100% tested, making them perfect for professional AV applications.
iSeries - Full Range of Cables and Adapters for All Common Types of AV Signals
The AV portfolio IS100 to IS171 (Adapters) and IS2000 to IS2221 (Cables) from PureLinks iSeries includes AV adapters and cables for the connection of source devices with DisplayPort, mini DisplayPort and USB-C connectors to display devices with HDMI, DVI, VGA and DisplayPort connectors. The cables and adapters enable the transmission of AV signals with the maximum bandwidth of the respective standard. Thus, all cables and adapters with HDMI connection support a bandwidth of up to 18 Gbps for resolutions up to 4K UltraHD 60Hz, those with DVI connection up to 4.95 Gbps for resolutions up to 2K WUXGA and the ones with DisplayPort connection up to 21.6 Gbps for resolutions up to 4K UltraHD 60Hz.The cables are essentially unidirectional, i.e. they can only transport the signal in one direction. This is always clearly indicated. Only the cables and adapters with the same signal type on both sides (e.g. DisplayPort to DisplayPort) can be used bidirectionally.All adapters feature a 0.10 meter long Portsaver pigtail cable with a very small bending radius, which provides effective strain relief to the connected devices sockets. All cables, including the Portsaver cables of the adapters, are triple-shielded and equipped with inner conductors made of tinned copper strands. Except the DisplayPort female sockets (PVC), the connectors of all cables and adapters are made of robust ABS material the metal plug housings themselves are always nickel-plated and the connection pins are always gold-plated. This allows for perfect signal transmission at all times while efficiently protecting against corrosion.The USB-C plug of IS2200 up to IS2221 cables can be used reversibly, so there is no need to pay attention to the plug direction. All USB-C cables transmit AV streams using DisplayPort Alternate Mode (DP Alt Mode), provided the source device also supports DP Alt Mode. They are not suitable for USB data and power transmission.The cable diameter varies between 4.5mm and 4.8mm depending on the signal type of the cable and is always 3.9mm for all cables with USB-C connection. All cables are available in two colour variants. White cables end with the number "0" in the item number, the black versions with a "1". The adapters and cables in this range at a glance.Adapters:IS100 / IS101: DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60HzIS110 / IS111: DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200IS120 / IS121: DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60HzIS140 / IS141: mini DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60HzIS150 / IS151: mini DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200IS160 / IS161: mini DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60HzIS170 / IS170: mini DisplayPort male to VGA female, unidirectional, max. 2K WUXGA 1920x1200Cables:IS2000 / IS2001: DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60HzIS2010 / IS2011: DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200IS2020 / IS2021: DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60HzIS2100 / IS2101: mini DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60HzIS2110 / IS2111: mini DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200IS2120 / IS2121: mini DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60HzIS2200 / IS2200: USB-C male to HDMI-A male, unidirectional, max. 18 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60HzIS2210 / IS2211: USB-C male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps via USB DP Alt-Mode, max. 2K WUXGA 1920x1200IS2220 / IS2221: USB-C male to DisplayPort male, unidirectional, max. 21.6 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60HziSeries - For mini DisplayPort or USB-C Devices such as MacBook,iMac and Mac mini™The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect the USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry.
| Features |
| mini DisplayPort 1.2 / HDMI 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz |
| Gold plated precision contacts, unidirectional |
| mini DisplayPort male to HDMI-A male |
| High purity copper conductors and triple shielding |
| 100% tested for professional AV applications |
| Logistics Information | |
| Product 1. Net Weight in Kg | 0,10 |
| Product 1. Gross Weight in Kg | 0,12 |
| Product 1. Length in cm | 12,5 |
| Product 1. Width in cm | 12,5 |
| Product 1. Height in cm | 2 |
| Packaging 1. Length in cm | 15 |
| Packaging 1. Width in cm | 13 |
| Packaging 1. Height in cm | 3 |
| Master Carton Length in cm | 48 |
| Master Carton Width in cm | 37 |
| Master Carton Height in cm | 33 |
| Product Information | |
| Europeans Customs Tariff Nr. | 84718000000 |
| Country of Origin | China |
| Packaging Material | Plastic |
| VPE Information | |
| Master Packaging Unit (pcs) | 60 |
| Secondary Packaging Unit (pcs) | 10 |
| Connections | |
| Connector material | ABS |
| Contact material | 24ct. gold plated, long-life design |
| Shielding | Yes |
| Connector 1 | mini DisplayPort Stecker |
| Connector 2 | HDMI-A male |
| Dimensions Con.1 | ca. 18,7 x 11 x 9 mm |
| Dimensions Con.2 | ca. 38 x 20,7 x 11 mm |
| Contacts | 24ct. gold plated, long-life design |
| Electric signal | |
| Maximum pixel clock / bandwidth | 18 Gbps |
| Cable | |
| Type | Round Cable |
| Lenght | 3.00m |
| Inner conductor material | Tinned Stranded Copper |
| AWG | 32AWG |
| Number of shieldings | 3 |
| Outer material | Very elastic PVC |
| Outer diameter | 4.8mm |
| Mechanical | |
| Operating temperature | Up to 80°C |
| Signal transmission | |
| Supported standards | mini DisplayPort 1.2, HBR2 | Premium High Speed HDMI, HDMI v2.0 |
| Transmission modes | Digital A/V signals |
| Supported Colors | mini DisplayPort 1.2 / HDMI v2.0 compliant |
| Supported audio standards | mini DisplayPort 1.2 / HDMI v2.0 compliant |
| Maximum resolution | 4K UltraHD 2160p @60Hz (4:4:4) |
| Further standards | Packaging Giftbox, PAP21 |
| Weiteres | |
| Safety | CE, ROHS, REACH, WEE |
| Colour | white |
| Warranty | 3 Years Manufacturer's Warranty |
| Delivery Content |
| 1x Premium Active 4K mini DisplayPort / HDMI Cable – 3.00m, White |
