Features
- DP 1.1 / HDMI 1.4 for resolutions up to WUXGA / 1920x1200, unidirectional
- Gold plated precision contacts with locking mechanism
- DisplayPort male to HDMI-A female, 10cm cable

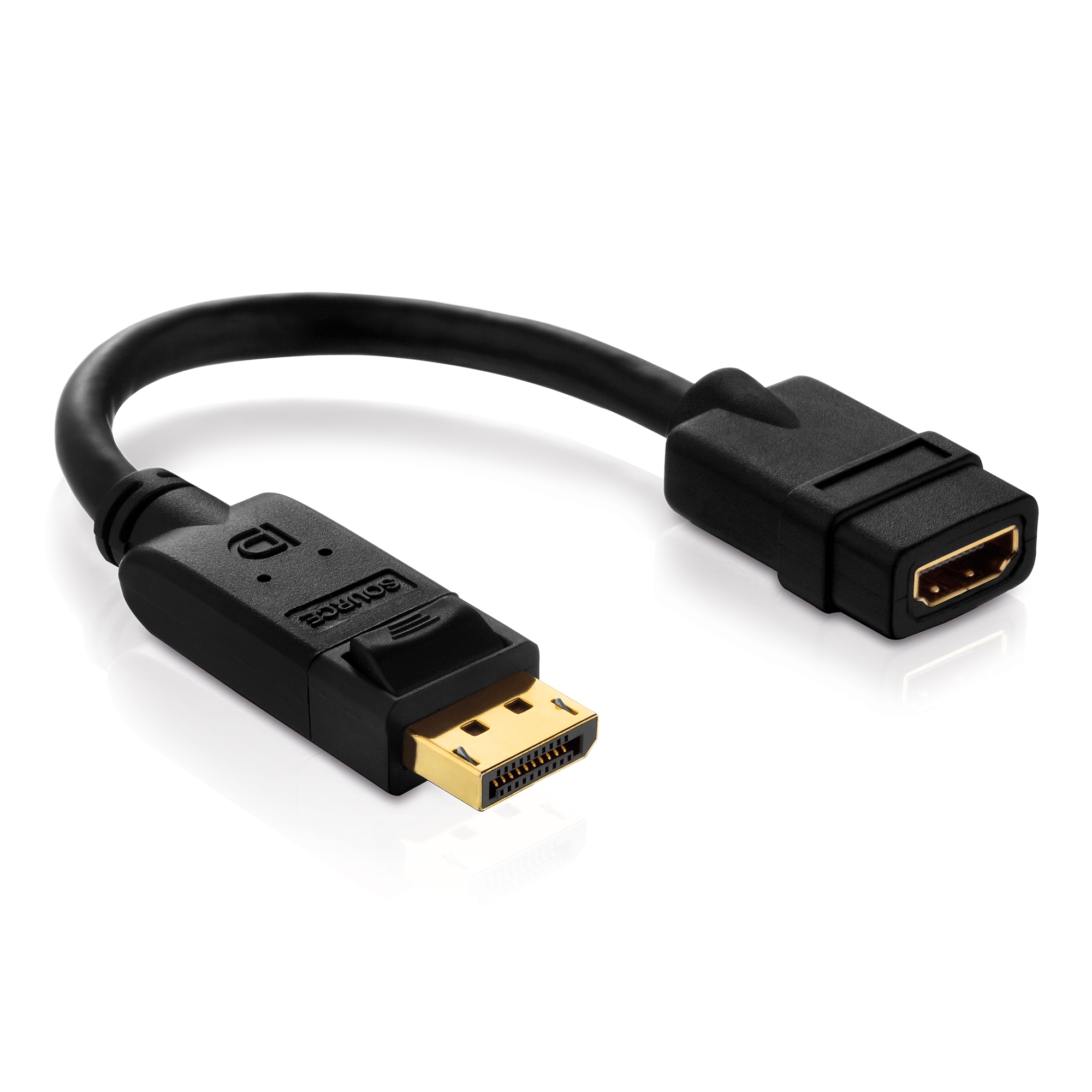

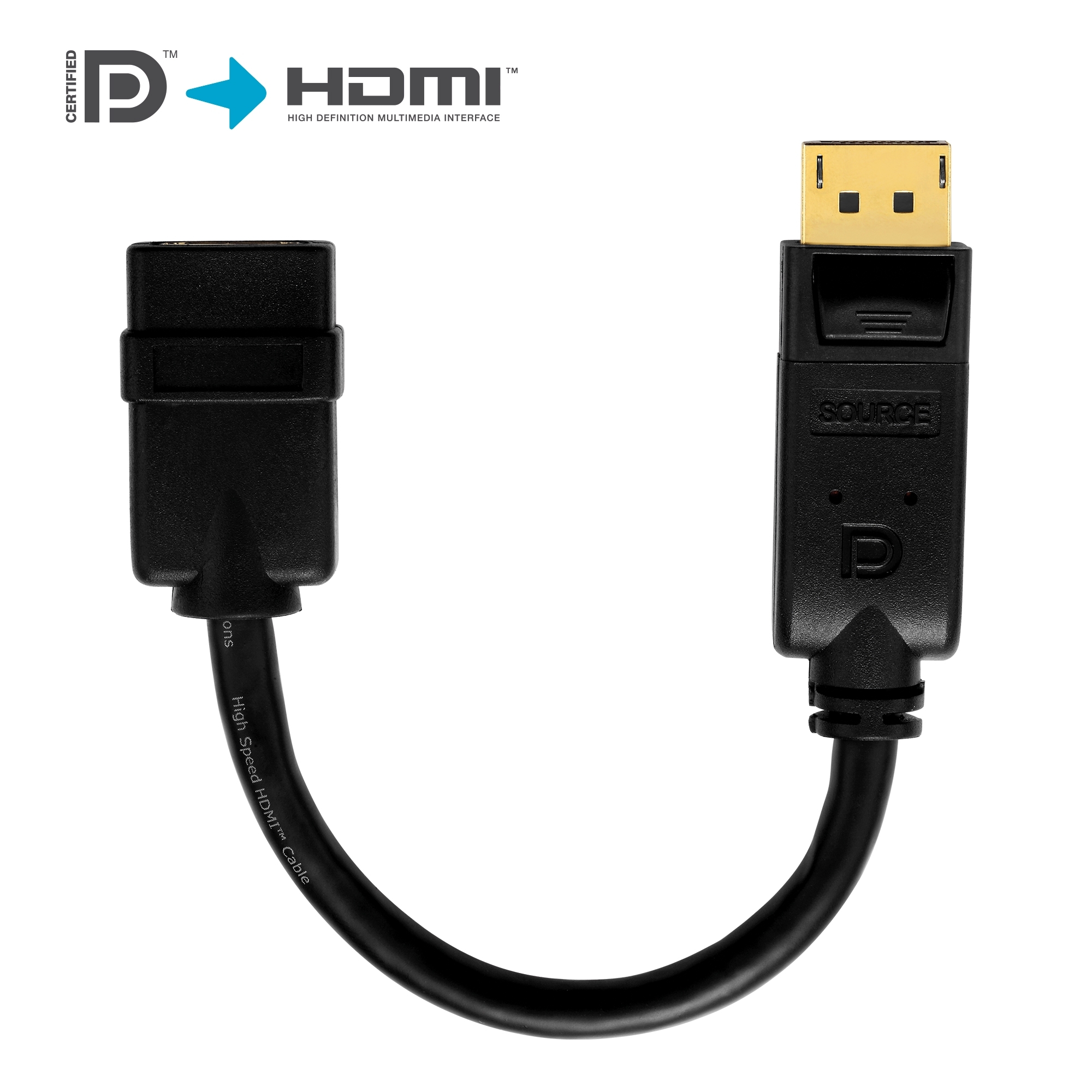

PI155 - DisplayPort to HDMI Portsaver Adapter
The PI155 connects DisplayPort to HDMI and at the same time protects sensitive sockets!This DisplayPort (plug) to HDMI (socket) adapter offers various features: It offers the connection of a DisplayPort source to a common HDMI cable and extends sources with DisplayPort by a HDMI output effectively. Additionally, the PI155 is a Portsaver, which offers traction relief at the socket and comes with a small bending radius - a professional product for professional use. Please note, that this adapter does not work bidirectionally, it cannot be used for HDMI sources to connect to DisplayPort-ready sinks.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.The Latest GenerationOur PureInstall HDMI to DisplayPort adapters comply with the latest HDMI standard - HDMI High Speed. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former DP and HDMI versions.Extended CompatibilityThe adapter converts signals from DisplayPort (plug) to HDMI-A (socket) and therefore extends the compatibility of sources with DisplayPort output effectively by a HDMI port for HDMI-ready screens. The adapter is, however, not bidirectionally (from HDMI source to DisplayPort sink) usable!Never Again Worry about Worn SocketsPortsavers are a reasonable addition when stiff and long and/or thick HDMI cables are being used. The Portsaver is being connected to the socket of the receiving device and reliefs it by picking up the traction coming from the connected cable. Additionally, our Portsavers have an extreme bending radius (up to 180°), thanks to their highly elastic manufacturing. This simplifies the use of stiff HDMI cables in fragile sockets.Secure-Lock-System™Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.Custom-fit, Durable and Without LossesThe highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.For Professional Purposes and InstallationsAll PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features |
DP 1.1 / HDMI 1.4 for resolutions up to WUXGA / 1920x1200, unidirectional |
Gold plated precision contacts with locking mechanism |
DisplayPort male to HDMI-A female, 10cm cable |
Logistics Information | |
Product 1. Net Weight in Kg | 0,04 |
Product 1. Gross Weight in Kg | 0,05 |
Product 1. Length in cm | 20 |
Product 1. Width in cm | 2,2 |
Product 1. Height in cm | 1,2 |
Packaging 1. Length in cm | 24,3 |
Packaging 1. Width in cm | 16,6 |
Packaging 1. Height in cm | 0,1 |
Master Carton Length in cm | 41 |
Master Carton Width in cm | 30 |
Master Carton Height in cm | 30 |
Product Information | |
Europeans Customs Tariff Nr. | 84718000000 |
Country of Origin | China |
Packaging Material | Paper |
VPE Information | |
Master Packaging Unit (pcs) | 130 |
Secondary Packaging Unit (pcs) | 10 |
Connections | |
Connector material | PVC |
Contact material | 24 ct. gold plated, long-life design |
Connector 1 | DisplayPort male (20pin) |
Connector 2 | HDMI Type A female (19pin) |
Dimensions Con.1 | 53,0 x 20,0 x 11,0 (mm) |
Dimensions Con.2 | 39,6 x 23,6 x 12,3 (mm) |
Contacts | 24 ct. gold plated, long-life design |
Electric signal | |
Maximum pixel clock / bandwidth | 4K / UltraHD / 2160p (4096x2160) |
HDCP | Yes |
EDID | Yes |
Cable | |
Type | Portsaver |
Lenght | 0.10m |
Inner conductor material | Tinned OFC copper |
AWG | AWG28 |
Number of shieldings | 3 |
Shielding 1 | Aluminium foil (100% density) |
Shielding 3 | Mesh (100% density) |
Outer material | Elastic PVC |
Outer diameter | 7.3mm |
Signal transmission | |
Supported standards | HDMI, DisplayPort |
Transmission modes | Digital audio and video signals |
Supported Colors | RGB/YUV, Deep Color, x.v.Color™ |
Further standards | HDCP, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
Weiteres | |
Safety | CE (incl. RoHS), FCC |
Colour | black |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x PI155 DisplayPort plug to HDMI-A socket portsaver |
Dokumente "Active 2K DisplayPort / HDMI Portsaver Adapter"
