PI175

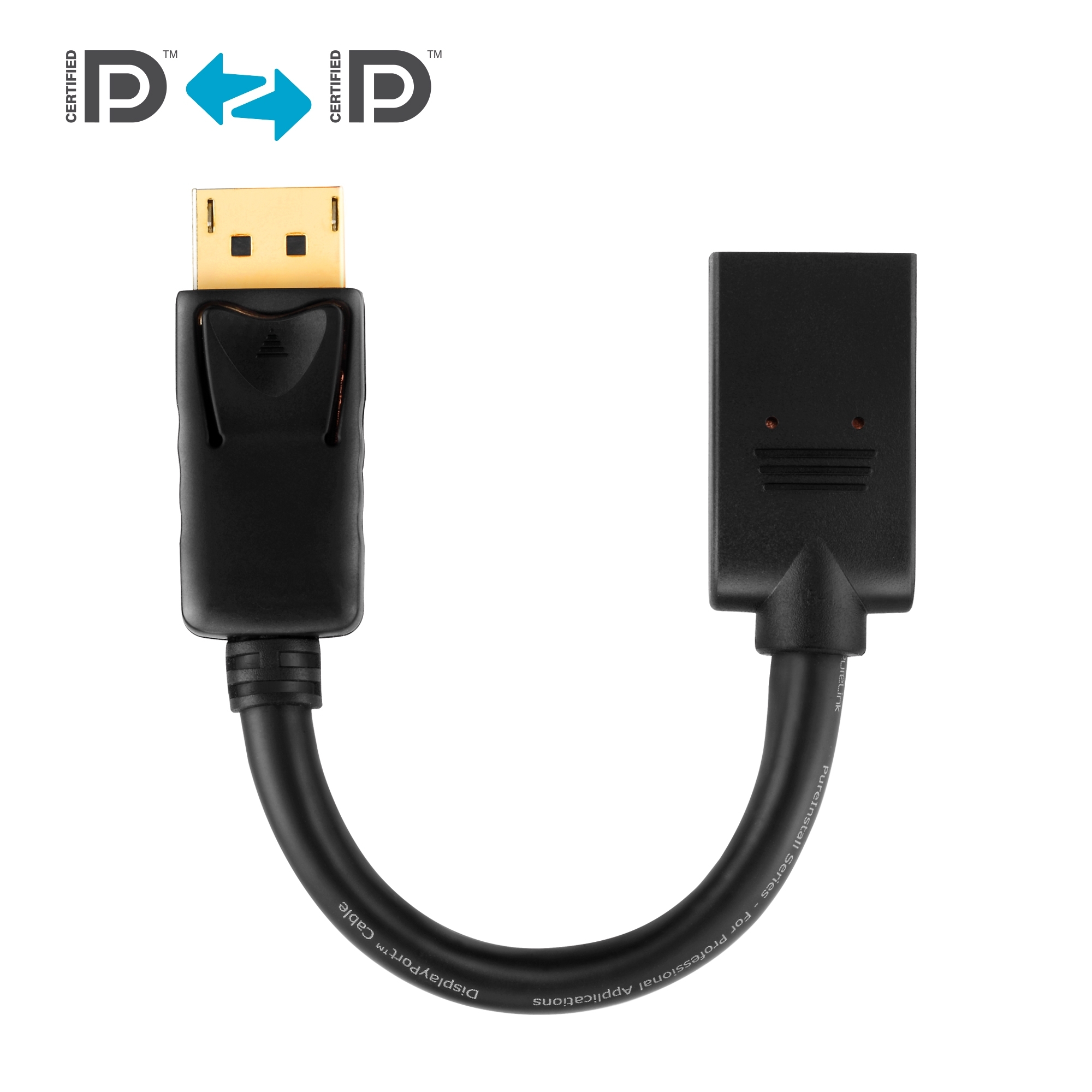

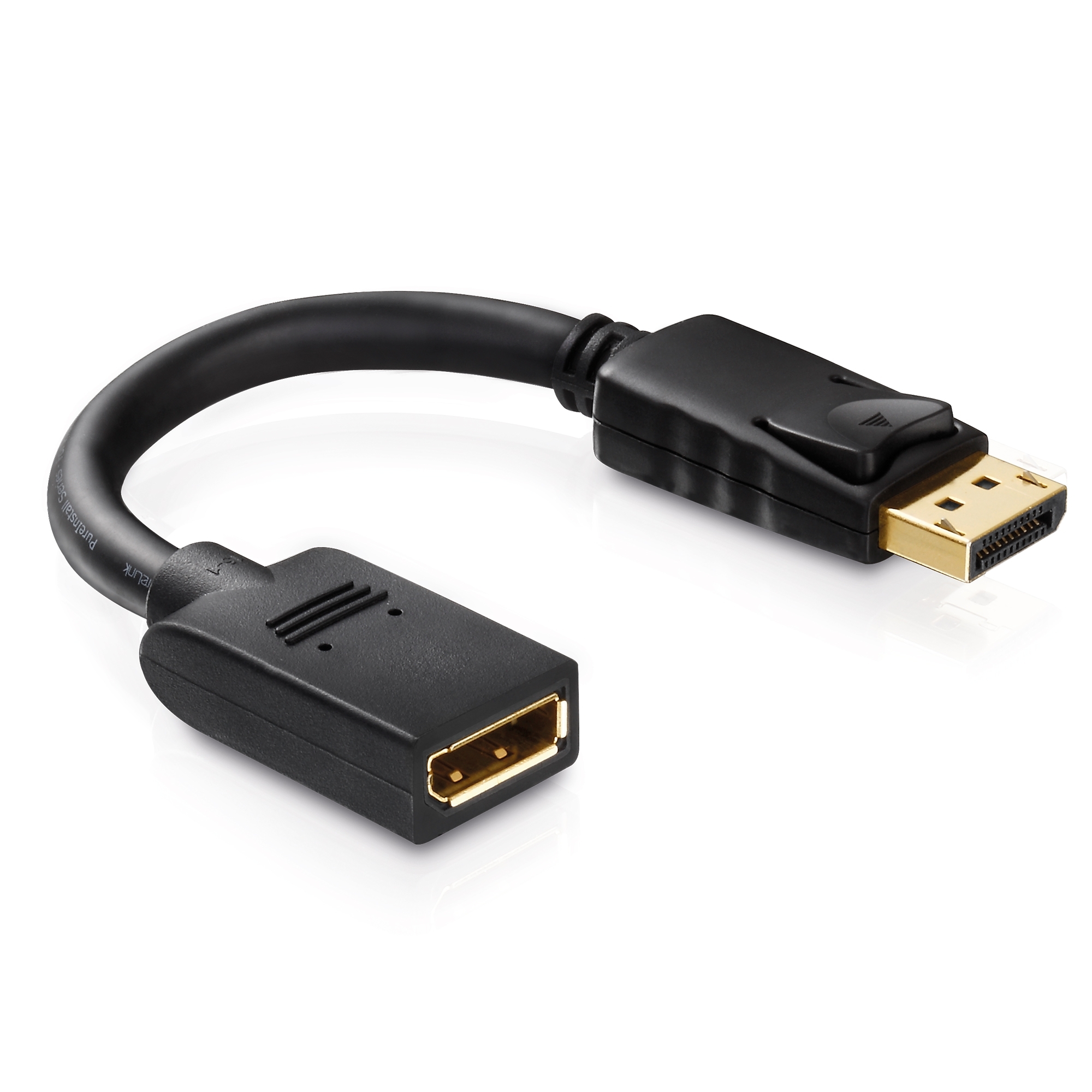

4K DisplayPort Portsaver

Preview: DisplayPort/DisplayPort Adapter - PureInstall 0,10m Preview: DisplayPort/DisplayPort Adapter - PureInstall 0,10m
DisplayPort/DisplayPort Adapter - PureInstall 0,10m
DisplayPort/DisplayPort Adapter - PureInstall 0,10m

PureLink
ONEAV B2B-SHOP
Features
  • DP 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz
  • Gold plated precision contacts with locking mechanism
  • DisplayPort male to DisplayPort female, 10cm cable
PureLink
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
PureLink® - PureInstall Series. Certified DisplayPort Portsaver Adapter with 24 ct. Gold plated precision contacts. VESA Standard. DisplayPort Male to DisplayPort Female. 100% tested for professional AV application. Length: 0,10m.
Features
Zurück
Features
DP 1.2 – 21.6Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with locking mechanism
DisplayPort male to DisplayPort female, 10cm cable
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 0,03
Product 1. Gross Weight in Kg 0,04
Product 1. Length in cm 15,5
Product 1. Width in cm 2,15
Product 1. Height in cm 11,5
Packaging 1. Length in cm 24,3
Packaging 1. Width in cm 16,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 39
Master Carton Height in cm 21
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 100
Secondary Packaging Unit (pcs) 10
Specifications
Zurück
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 DisplayPort male (20pin)
Connector 2 DisplayPort female (20pin)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K / UltraHD / 2160p (4096x2160)
HDCP Yes
EDID Yes
Cable
Type Portsaver
Lenght 0.10m
Inner conductor material Tinned OFC copper
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Signal transmission
Supported standards DisplayPort
Transmission modes Digital audio and video signals
Supported Colors RGB/YUV, Deep Color, x.v.Color™
Further standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x PI175 DisplayPort plug to DisplayPort socket portsaver adapter
Dokumente
Zurück
Dokumente "4K DisplayPort Portsaver"
