CS030

4K Premium High Speed mini HDMI / HDMI Adapter

Preview: Mini HDMI/HDMI Adapter - Cinema Serie Preview: Mini HDMI/HDMI Adapter - Cinema Serie
Mini HDMI/HDMI Adapter - Cinema Serie
Mini HDMI/HDMI Adapter - Cinema Serie

PureLink
ONEAV B2B-SHOP
Features
  • HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Gold plated precision contacts with designer connector
  • mini HDMI-C male to HDMI-A female
  • Optimal signal quality - Connection with high-quality PCB
  • Designer packaging optimised for Point-of-Sale environments
PureLink
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
CS030 - HDMI-A Socket to HDMI-C (Mini) Plug Adapter
Connect your Mini HDMI-ready device to a HDMI-A cable with this adapter!

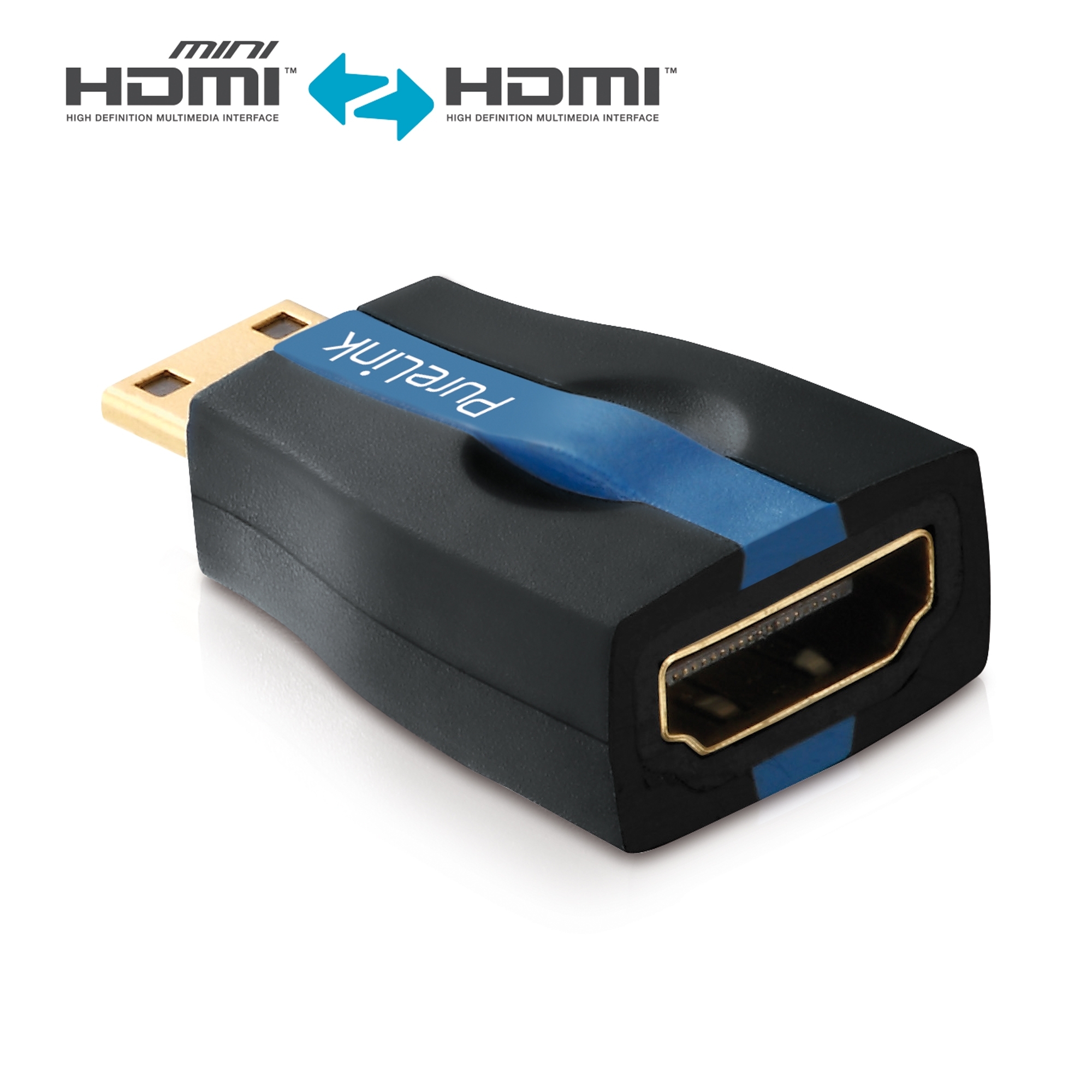

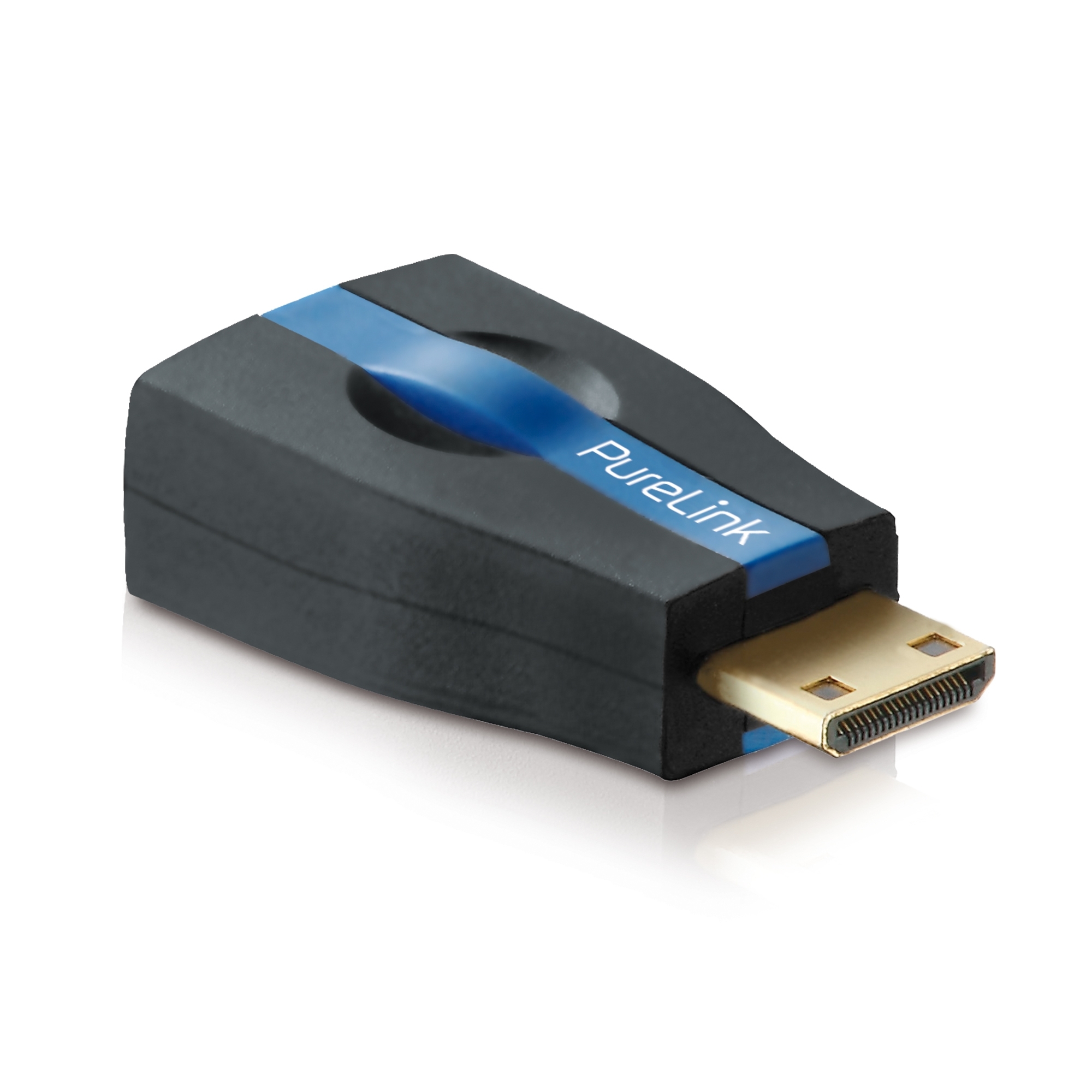

The Mini HDMI/HDMI adapter CS030 comes with a HDMI-A socket on one side and a Mini HDMI-C plug on the the other.
The adapter offers the latest HDMI 2.0 features including 3D, Ethernet-channel with resolutions of up to 4k (2160p) and crystal clear sound transmission. The CS030 is therefore a reliable and flexible companion for digital adaptations and additionally offers perfectly developed haptics and an aesthetic design.
NO COMPROMISES IN IMAGE, SOUND AND MULTIMEDIA APPLICATIONS
Features
Zurück
Features
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
Gold plated precision contacts with designer connector
mini HDMI-C male to HDMI-A female
Optimal signal quality - Connection with high-quality PCB
Designer packaging optimised for Point-of-Sale environments
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 0,01
Product 1. Gross Weight in Kg 0,03
Product 1. Length in cm 3,49
Product 1. Width in cm 2
Product 1. Height in cm 1,15
Packaging 1. Length in cm 8
Packaging 1. Width in cm 8
Packaging 1. Height in cm 2,5
Master Carton Length in cm 41
Master Carton Width in cm 39
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85366990990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 120
Secondary Packaging Unit (pcs) 10
Third Packaging Unit (pcs) 1
Specifications
Zurück
Connections
Connector material PVC
Contact material 24ct gold plated, long-life design
Connector 1 HDMI Type C Plug (19pin)
Connector 2 HDMI Type A Socket (19pin)
Contacts 24ct gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 4K (4096x2160)
HDCP Yes
CEC Yes
EDID Yes
Cable
Type Adapter
Number of shieldings Yes
Shielding 1 Aluminium Foil (100% density)
Signal transmission
Supported standards HDMI
Transmission modes Digital audio and video signals
Supported Colors 16/24 bit RGB/YUV, Deep Color, x.v.Color™
Supported audio standards Audio-Return-Channel (ARC), Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
Further standards HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (EMC, RED, LVD, R
Colour black
Warranty 3 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x CS030 Mini HDMI/HDMI Adapter
