Features
- HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz
- Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™)
- HDMI-A male to HDMI-A female, 270° angle

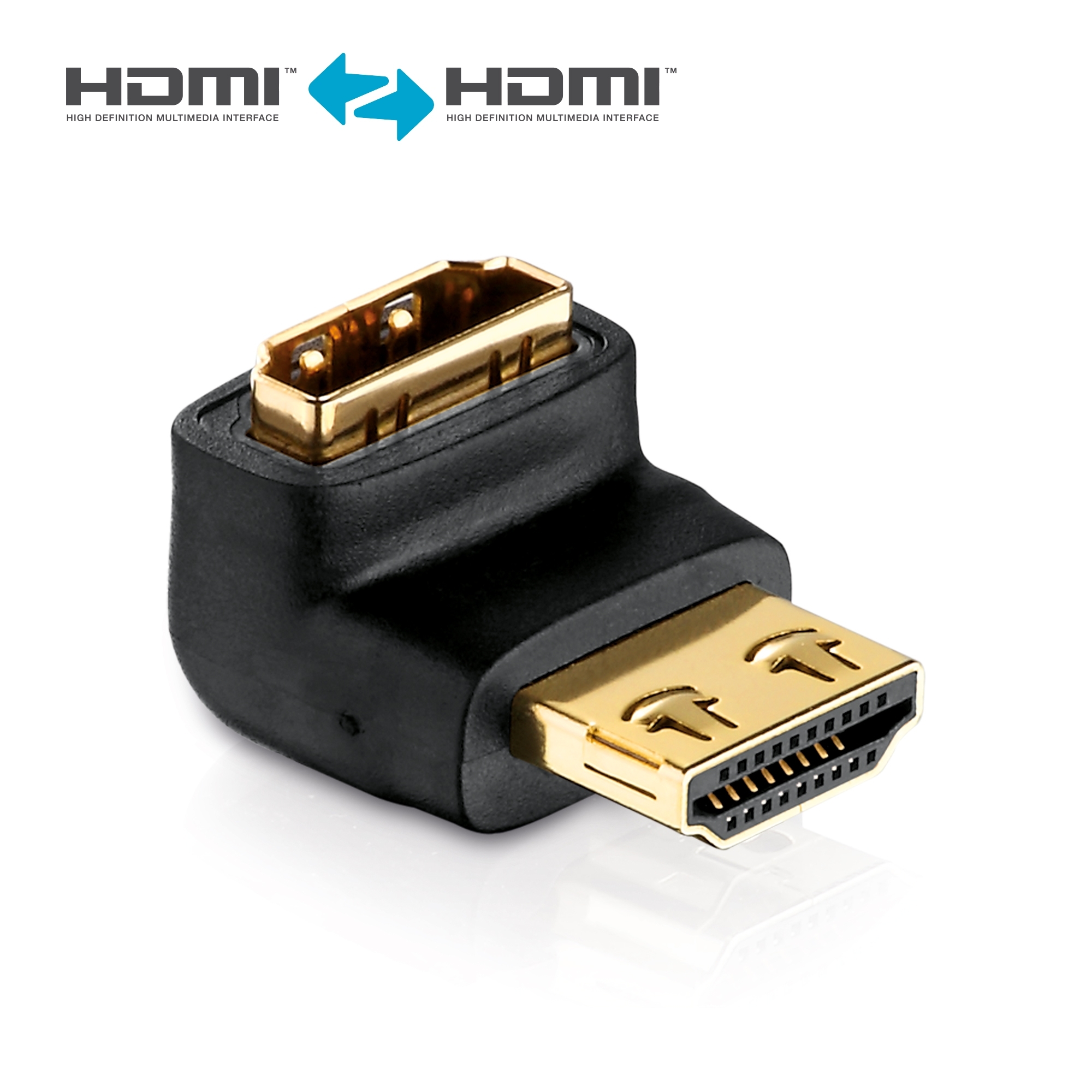

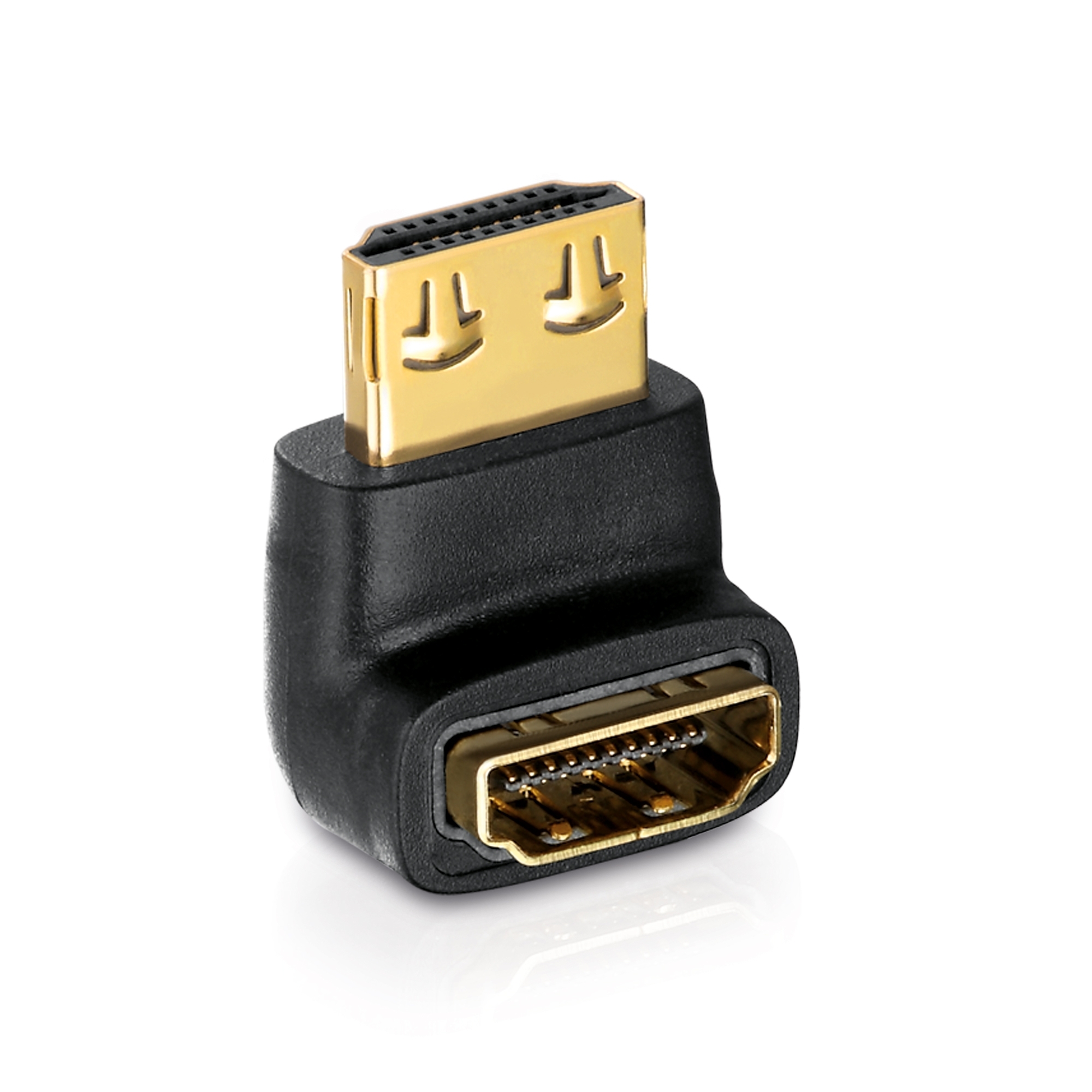

PI040 - High Speed HDMI 270° Angle Adapter
Our flexible cable guide for difficult to reach sockets!The PI040 angle adapter is meant to be used on hard to reach HDMI sockets and changes the plugs approach by 270° for an individually adapted cable guide. Thanks to bonusses like Ethernet channel (HEAC) and ARC, as well as its high reliability, it is especially well suited for professional applications and installations. This adapter is equipped with the Secure-Lock-System™ for a more secure and traction-coping use of HDMI connections. Mind the direction of the HDMI socket during installation - the reverse-directed adapter (90°) in our product line is the PI035.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.The Latest GenerationOur PureInstall HDMI adapters comply with the latest HDMI standard - HDMI 2.0 High Speedwith Ethernet. They support resolutions up to 4K (4096x2160) and are downward compatible with all former HDMI versions.Flexible Cable FeedThe PureInstall angle adapters change the predetermined direction of the cable feed towards the HDMI-ready devices. This allows for more flexibility when it comes to installation plans and when problems with set directions are comes across on location.Secure-Lock-System™Conventional HDMI plugs easily lose grip in the socket. The solution: PureLink® High Speed HDMI adapters with Secure-Lock-System™. The SLS™ technology was developed by PureLink especially for a more secure use of HDMI connections. This plug design is one of a kind on the current market and enhances the stability of the connection even with high traction rates, securing the connection permanently.Custom-fit, Durable and Without LossesThe highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.HDMI Ethernet Channel and Audio Return ChannelThe Ethernet channel (HEAC) within the HDMI cable is a new feature of the HDMI 1.4 standard. With this channel within the cable, you can integrate IP-based entertainment devices such as your TV, set-top-boxes or gaming consoles into your home network, including internet or IP-based services without additional cables. The audio return channel (ARC) eliminates (like the Ethernet channel does), an additional cable within the home cinema system. The ARC sends the digital audio signal - via the HDMI cable - back to your AV-receiver. Therefore, there is no more need for a separate connection with a Toslink cable. For Professional Purposes and InstallationsAll PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features |
HDMI version 2.0 – 18Gbps for resolutions up to 4K UltraHD 60Hz |
Gold plated precision contacts with PureLink SLS™ (Secure-Lock-System™) |
HDMI-A male to HDMI-A female, 270° angle |
Logistics Information | |
Product 1. Net Weight in Kg | 0,05 |
Product 1. Gross Weight in Kg | 0,07 |
Product 1. Length in cm | 2,8 |
Product 1. Width in cm | 2,4 |
Product 1. Height in cm | 1,7 |
Packaging 1. Length in cm | 13,5 |
Packaging 1. Width in cm | 8,5 |
Packaging 1. Height in cm | 1 |
Master Carton Length in cm | 41 |
Master Carton Width in cm | 30 |
Master Carton Height in cm | 30 |
Product Information | |
Europeans Customs Tariff Nr. | 85366990990 |
Country of Origin | China |
Packaging Material | Plastic |
VPE Information | |
Master Packaging Unit (pcs) | 300 |
Secondary Packaging Unit (pcs) | 10 |
Connections | |
Connector material | PVC |
Contact material | 24 ct. gold plated, long-life design |
Connector 1 | HDMI Type A male (19pin) |
Connector 2 | HDMI Type A male (19pin) |
Dimensions Con.2 | 27,1 x 20,2 x 16,4 (mm) |
Contacts | 24 ct. gold plated, long-life design |
Electric signal | |
Maximum pixel clock / bandwidth | 4K / UltraHD / 2160p (4096x2160) |
HDCP | Yes |
CEC | Yes |
EDID | Yes |
Cable | |
Type | Angle Adapter |
Signal transmission | |
Supported standards | High Speed HDMI with Ethernet |
Transmission modes | Digital audio and video signals |
Supported Colors | 16/24 bit RGB/YUV, Deep Color, x.v.Color™ |
Supported audio standards | ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD |
Further standards | HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
Weiteres | |
Safety | CE (incl. RoHS), FCC |
Colour | black |
Warranty | Optional 15 Years Manufacturer's Warranty |
Delivery Content |
1x PI040 HDMI-A socket to HDMI-A plug angle adapter 270° |
Dokumente "4K Premium High Speed HDMI Angle Adapter 270°"
