Features
  • HDMI version 1.4 for resolutions up to WUXGA / 1920x1200
  • Gold plated precision contacts
  • DVI-D Single Link (18+1) male to HDMI-A female, 10cm cable

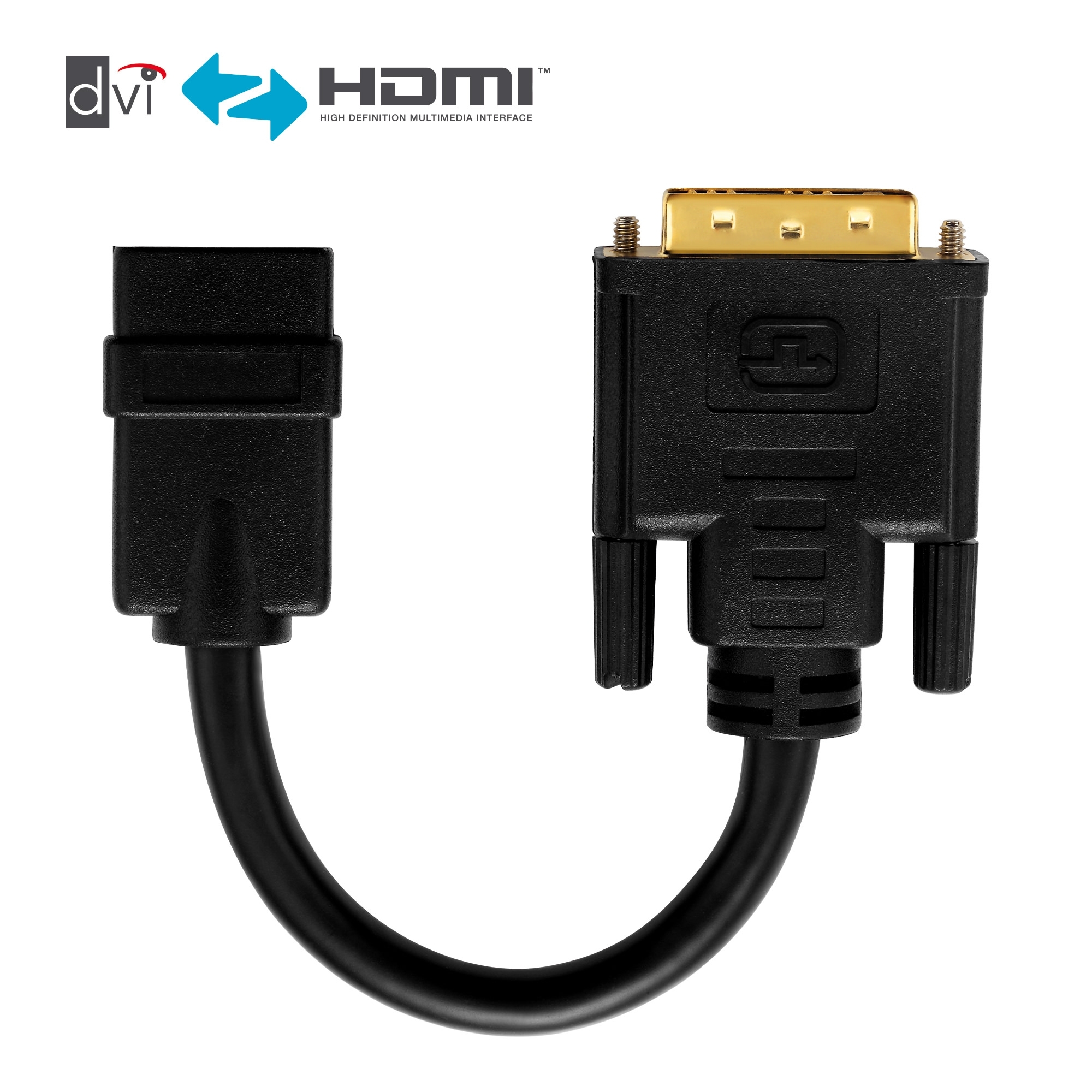

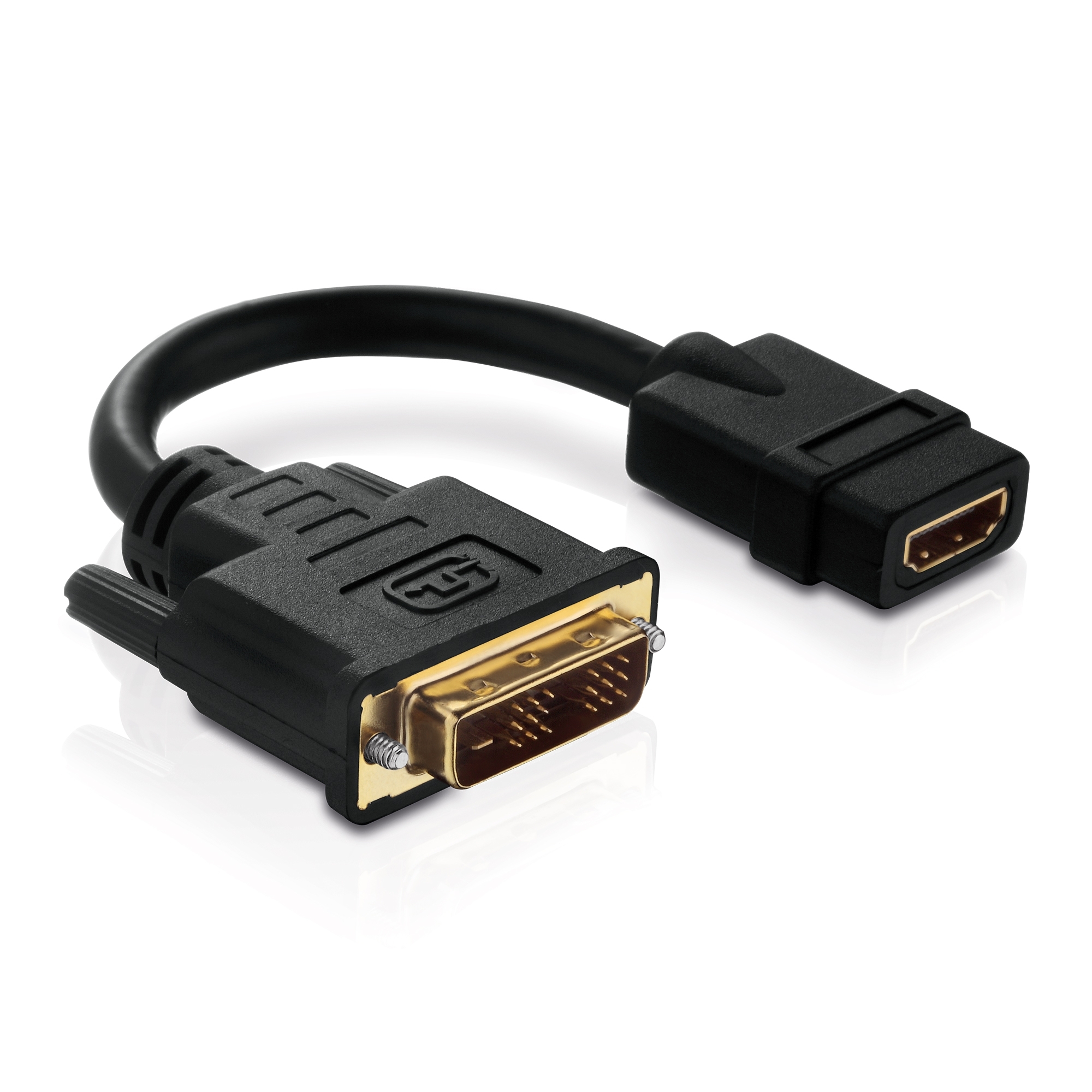

PI066 - High Speed HDMI to DVI Portsaver Adapter
The PI065 connects HDMI to DVI while going easy on the socket!
With the PI065 High Speed HDMI to DVI Portsaver, signals can be converted bidirectionally from HDMI-A (socket) to DVI-D (plug) and reverse way. Thanks to this the compatibility of DVI-ready screens is being extended to any source device with HDMI output. The Secure-Lock-System™ and the innovative and highly engineered plug manufacturing offer reliability especially for professional applications and installations.
BENCHMARK FOR PROFESSIONAL INSTALLATIONS
High-quality materials, custom-fit plugs and couplings, gold-plated pins as well as waiving unnecessary parts, PureInstall products are a good investment for any field of use.

The Latest Generation
Our PureInstall HDMI to DVI adapters comply with the latest HDMI standard - HDMI High Speed. They support resolutions up to WUXGA (1920x1200) and are downward compatible with all former HDMI versions.

Extended Compatibility
Due to the bidirectional possibility of converting signals from HDMI-A (plug) to DVI-D (socket) and reverse way, this product extends the compatibility of DVI-ready screens to any source device with HDMI output.

Never Again Worry about Worn Sockets
Portsavers are a reasonable addition when stiff and long and/or thick HDMI cables are being used. The Portsaver is being connected to the socket of the receiving device and reliefs it by picking up the traction coming from the connected cable. Additionally, our Portsavers have an extreme bending radius (up to 180°), thanks to their highly elastic manufacturing. This simplifies the use of stiff HDMI cables in fragile sockets.

Custom-fit, Durable and Without Losses
The highly precise manufactured and custom-fit 24-carat gold-plated pins guarantee a perfect transmission and permanently lasting functionality.

Space-Saving Installation
The product design has been reduced to a significant minimum, allowing for the use of PureInstall adapters in any space. Even if the space offered is limited as it often is when it comes to professional installations. The security aspect, however, is not left out: The DVI plug is of course equipped with the usual screw locks.

For Professional Purposes and Installations
All PureInstall adapters are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the adapters undergo over ten quality tests, making them the most reliable choice on the market.
Features
HDMI version 1.4 for resolutions up to WUXGA / 1920x1200
Gold plated precision contacts
DVI-D Single Link (18+1) male to HDMI-A female, 10cm cable
Logistics Information
Product 1. Net Weight in Kg 0,05
Product 1. Gross Weight in Kg 0,07
Product 1. Length in cm 18,7
Product 1. Width in cm 6,07
Product 1. Height in cm 2,81
Packaging 1. Length in cm 24,3
Packaging 1. Width in cm 16,6
Packaging 1. Height in cm 0,1
Master Carton Length in cm 41
Master Carton Width in cm 30
Master Carton Height in cm 30
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic
VPE Information
Master Packaging Unit (pcs) 90
Secondary Packaging Unit (pcs) 10
Connections
Connector material PVC
Contact material 24 ct. gold plated, long-life design
Connector 1 DVI-D male (18+1pin)
Connector 2 HDMI Type A female (19pin)
Dimensions Con.1 47,7 x 37,7 x 15,8 (mm)
Dimensions Con.2 39,6 x 23,6 x 12,3 (mm)
Contacts 24 ct. gold plated, long-life design
Electric signal
Maximum pixel clock / bandwidth 1920x1200 WUXGA
HDCP Yes
EDID Yes
Cable
Type Portsaver
Lenght 0.10m
Inner conductor material Tinned OFC copper
AWG AWG28
Number of shieldings 3
Shielding 1 Aluminium foil (100% density)
Shielding 3 Mesh (100% density)
Outer material Elastic PVC
Outer diameter 7.3mm
Signal transmission
Supported standards DVI, HDMI
Transmission modes Digital video signals
Supported Colors 8 bit RGB/YUV, Deep Color, x.v.Color™
Further standards FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Weiteres
Safety CE (incl. RoHS), FCC
Colour black
Warranty Optional 15 Years Manufacturer's Warranty
Delivery Content
1x PI065 HDMI-A socket to DVI-D plug portsaver adapter
