Features
- VGA via USB-C Alt-Mode for resolutions up to 2K / 1920x1080
- Gold plated precision contacts, unidirectional
- USB-C male to VGA female
- High purity copper conductors and triple shielding
- Portsaver for a narrow bending radius and strain relief of device ports
![](https://www.purelink.de/media/image/64/43/9e/USB-C-V32.png)
![](https://www.purelink.de/media/image/18/16/ee/VGA.png)
![](https://www.purelink.de/media/image/23/54/6d/WUXGA.png)
![](https://www.purelink.de/media/image/8c/45/cf/PlugAndPlay.png)

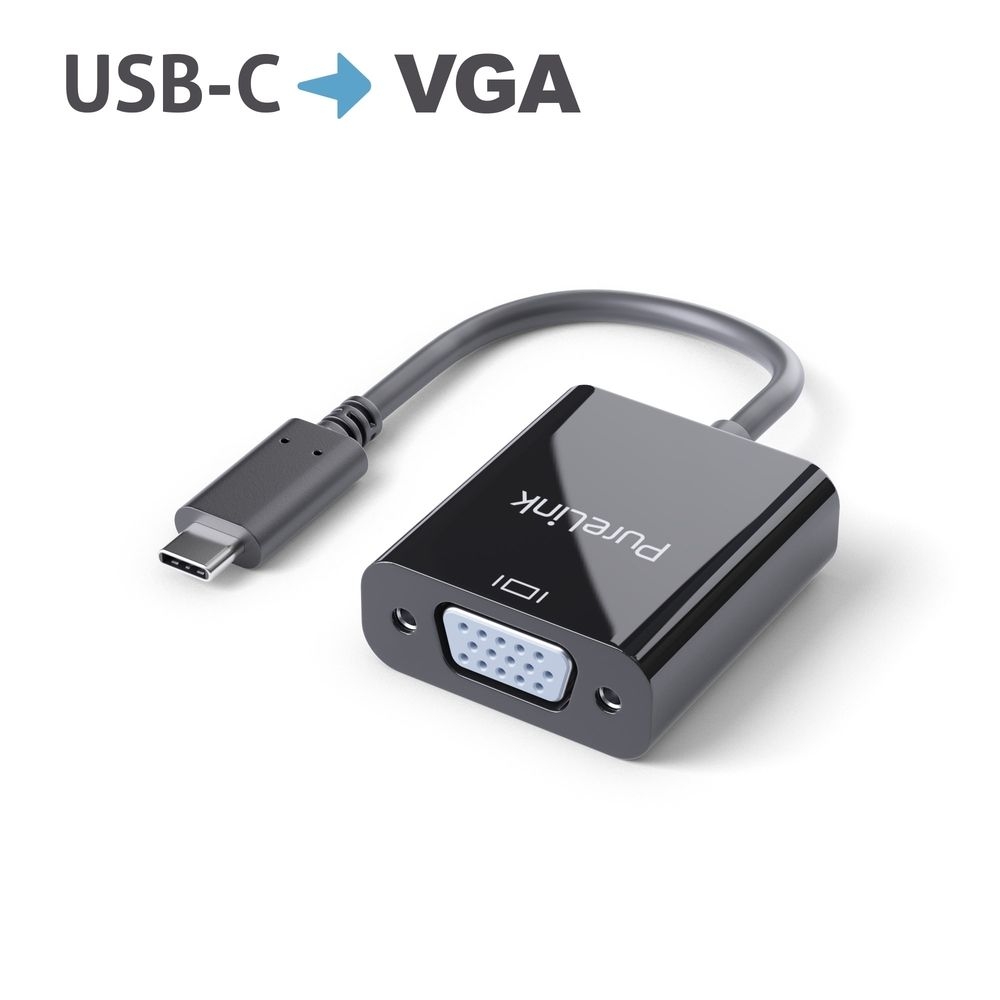

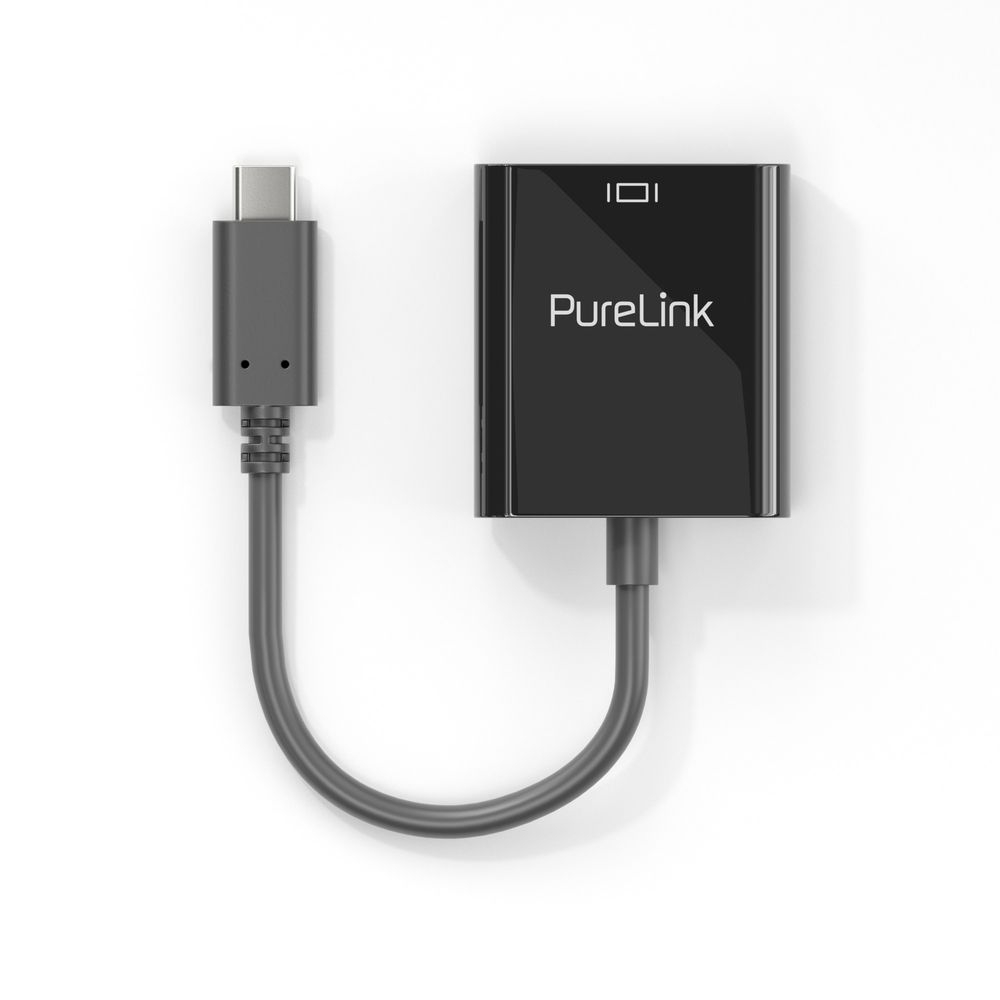

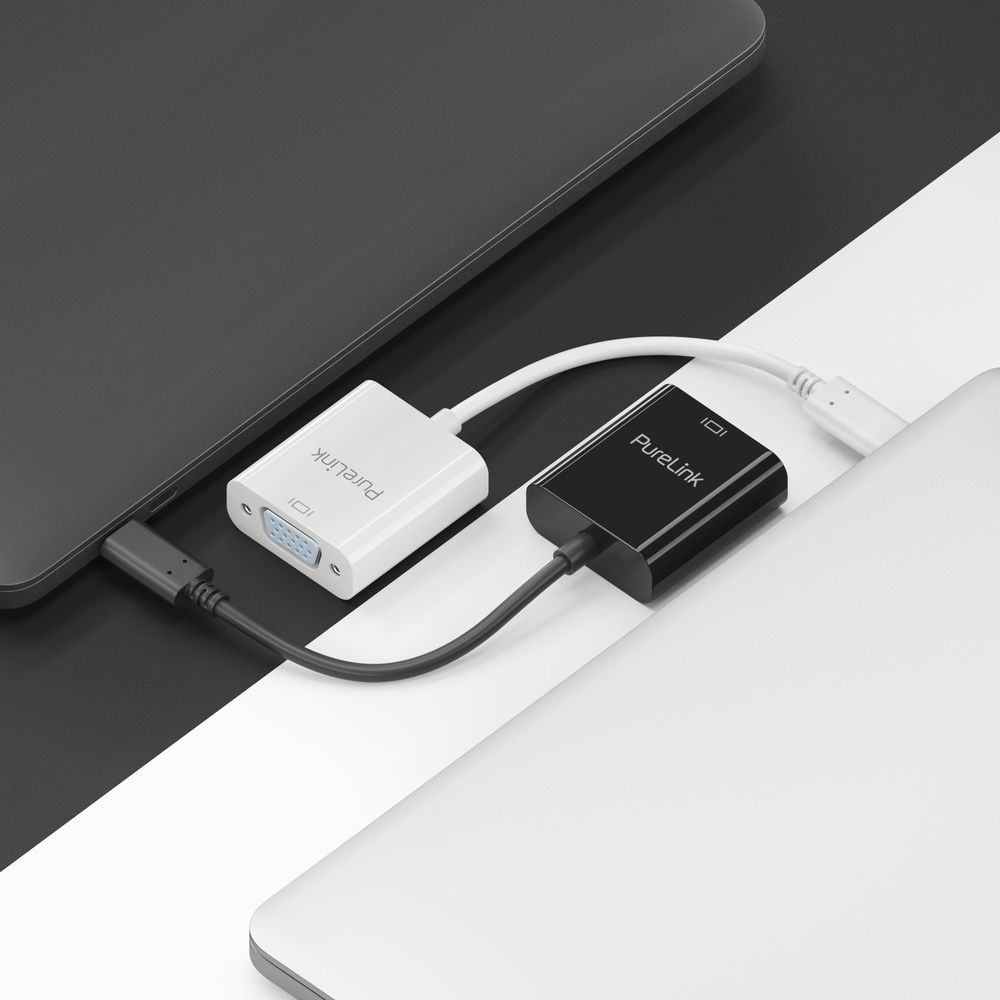

Premium USB-C to VGA (Alt Mode) Adapter, Portsaver 0.10m, black
Easy Connection of USB-C sources with VGA Display DevicesThe PureLink iSeries Premium USB-C to VGA adapters enable a USB-C source device, such as a PC or set-top-box to be connected to a VGA Display device, such as an LED-TV or projector. The adapter is able to transmit A/V signals with a bandwidth for 2K / FullHD / 1080p with a maximum resolutuion of WUXGA (1920x1200). The connectors feature a slim housing made of ABS plastic as well as a ca. 0.10m long portsaver cable, protecting the socket from damages.
PureLink iSerie - Full range for devices with a logo showing an apple
The high-quality cables and adapters included in our iSeries were developed by PureLink especially for Apple devices with Thunderbolt / Mini DisplayPort and/or USB-C connection. The full range of cables and adapters for all common A/V signal types enables direct connection to digital and analogue displays, while the USB-C / USB-A cables and multiport adapters for charging devices and for data transfer offer many useful functions for mobile devices.One connection - All common A/V signal types via Alt ModeThe products of the iSeries offer different ways of signal transmission from Mini DisplayPort / Thunderbolt or USB-C to HDMI, DVI, DisplayPort, Mini DisplayPort and/or VGA.A USB-C adapter for the integration of 1G Ethernet is als featured in the lineup.The full bandwidthIf the signal on the output side and the connection type itself allow it, the cables and adapters of the iSeries transmit the full bandwidth for resolutions up to 4K / UltraHD / 2160p.Power Delivery and OTG (On-The-Go) FeaturesThe iSeries OTG adapters offer a simple charging function for mobile devices as well as an OTG function for integrating USB mass storage devices or HID devices.With up to 60W power delivery via USB-C and a fast USB 3.1 Gen1 data connection, the adapters meet most modern data transfer requirements.Premium quality - High quality materials and lightweight designThe iSeries adapters are equipped with app. 0.10m Portsaver cables with gold or nickel plated precision plug contacts and are designed for demanding and failure critical applications thanks to the robust ABS housing.For mobile applications, PureLinks iSeries features a lightweight design for easy transport.
Features |
VGA via USB-C Alt-Mode for resolutions up to 2K / 1920x1080 |
Gold plated precision contacts, unidirectional |
USB-C male to VGA female |
High purity copper conductors and triple shielding |
Portsaver for a narrow bending radius and strain relief of device ports |
Logistics Information | |
Product 1. Net Weight in Kg | 0,02 |
Product 1. Gross Weight in Kg | 0,04 |
Product 1. Length in cm | 18,5 |
Product 1. Width in cm | 3,8 |
Product 1. Height in cm | 1,6 |
Packaging 1. Length in cm | 14,6 |
Packaging 1. Width in cm | 9 |
Packaging 1. Height in cm | 2 |
Master Carton Length in cm | 45 |
Master Carton Width in cm | 34 |
Master Carton Height in cm | 33,5 |
Product Information | |
Europeans Customs Tariff Nr. | 85444290900 |
Country of Origin | China |
Packaging Material | Plastic |
VPE Information | |
Master Packaging Unit (pcs) | 120 |
Secondary Packaging Unit (pcs) | 10 |
Third Packaging Unit (pcs) | 1 |
Connections | |
Connector material | ABS housing |
Contact material | nickel-plated, long-life design |
Connector 1 | USB-C male |
Connector 2 | VGA female |
Contacts | nickel-plated, long-life design |
Cable | |
Type | Portsaver Adapter |
Lenght | 0.10m |
Number of shieldings | 3 |
Shielding 1 | Aluminium foil |
Shielding 3 | Copper braid |
Outer material | Elastic PVC, ABS housing |
Signal transmission | |
Supported standards | USB-C, VGA |
Transmission modes | Digital A/V signals |
Supported audio standards | Digital audio signals incl. multi-ch with various standards |
Maximum resolution | WUXGA, 1920x1200px |
Weiteres | |
Safety | FCC, CE |
Colour | black |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x IS221 USB-C to VGA Adapter, ca. 0.10m Portsaver, black, retail packaging |
Dokumente "Premium Active 2K USB-C / VGA Portsaver Adapter – Black"
