Seamless Switching of HDMI 2.0 Multiformat Presentation Switchers

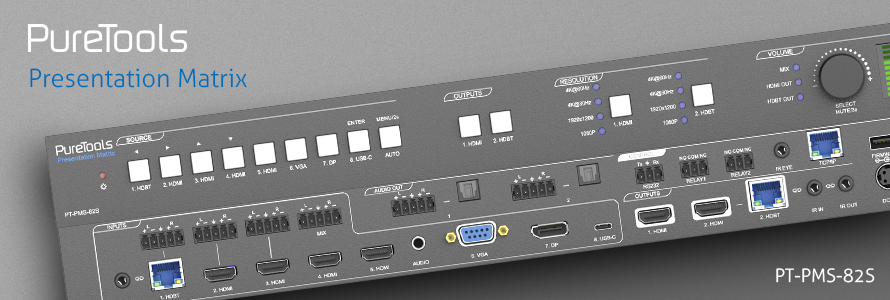

800x300px_PT-PMS-82S



Seamless Switching of HDMI 2.0 Multiformat Presentation Switchers

PureTools new Products provide 4K at 18 Gbps

With these features still rare in the market, the new PureTools Seamless Presentation Switchers provide a versatile all in one solution, simple and easy control and connectivity and collaborative solutions to modern meetings with any devices in any-size spaces.

The matrix switchers are designed to be the central component of AV system. They are ideal for applications where multiple signals with different resolutions must be optimized for displays. It is also suitable for presentation spaces where two displays are needed.

Features: HDMI 2.0 and HDCP 2.2 compliant. Supports video resolutions up to 4K@60Hz 4:4:4., down- and up-scaling, 1080P, 1920x1200P, 4K@30Hz, 4K@60Hz can be selected for HDMI and HDBaseT outputs and more.

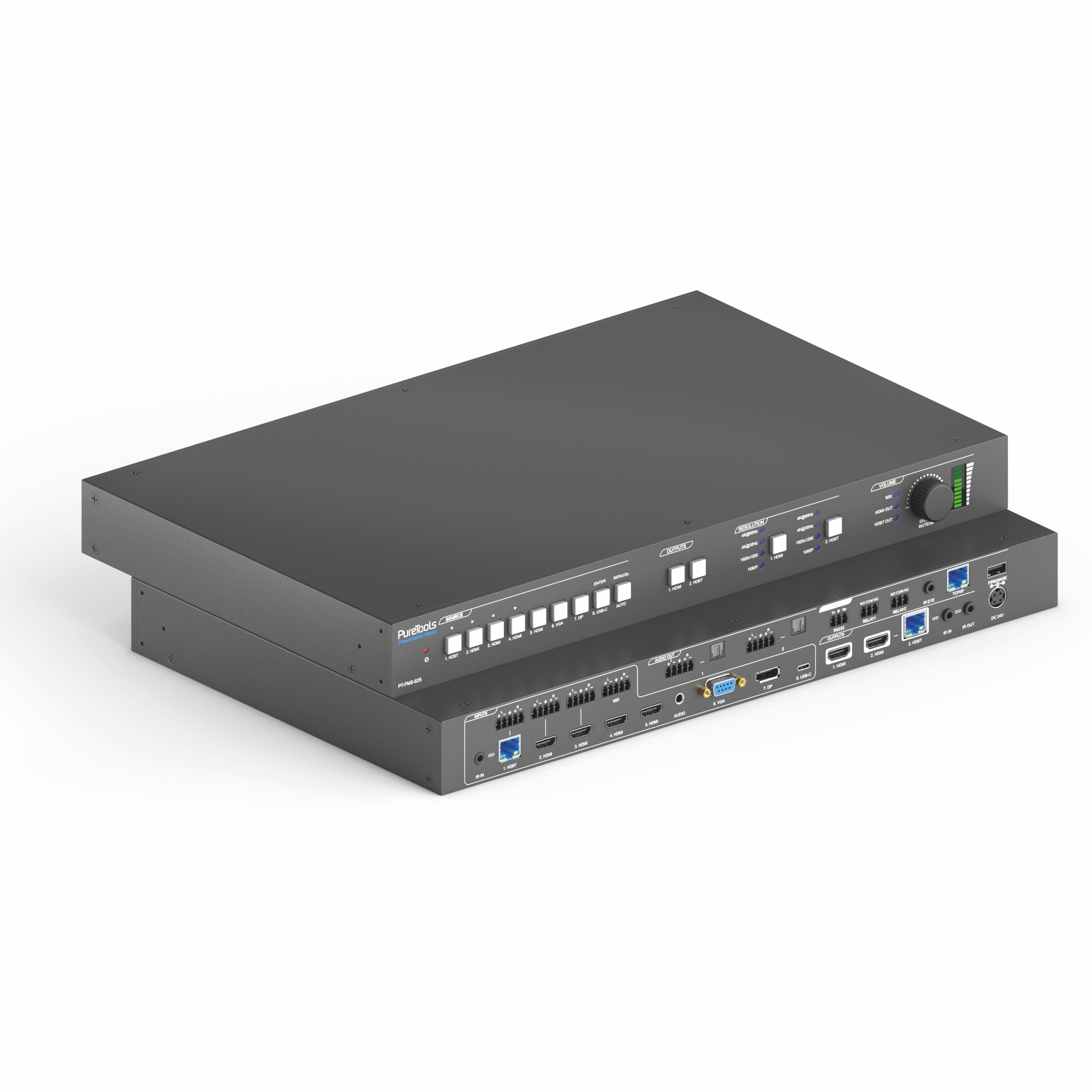

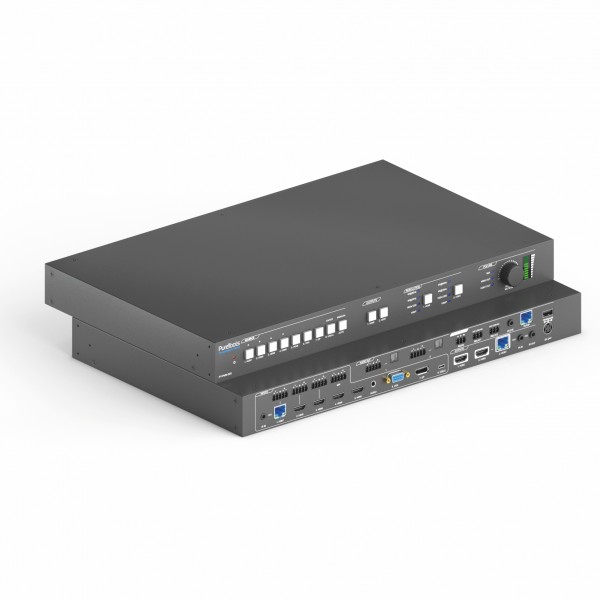

Seamless 4K 18Gbps Multiformat HDBaseT Presentation

PureTools new Products provide 4K at 18 Gbps

  • Matrix switcher with HDMI, USB-C, DP and VGA inputs and independent HDMI and HDBaseT outputs

  • Scaled output resolutions of up to 4K@60Hz, 4:4:4 via HDMI and 4K via HDBaseT

  • Compliant with HDCP 2.2, PoC to HDBaseT output as well as audio de-embedding
    embedding via bal. audio inputs & analog / S/PDIF audio outputs

  • Visually lossless (de-)compression for HDMI signals over 40m@4K and 70m@1080p on HDBaseT output

  • Seamless switching of HDMI and HDBaseT outputs incl. EDID Management

  • Control via RS-232, IR, TCP/IP, relay, CEC and GUI

New PureLink Multiformat Presentation Switchers provide 4K at 18 Gbps
