Features
- DisplayPort 1.1 / DVI-D for resolutions up to WUXGA / 1920x1200
- Gold plated precision contacts, unidirectional
- DisplayPort male to DVI-D Single Link (24+1) male
- High purity copper conductors and triple shielding
- 100% tested for professional AV applications

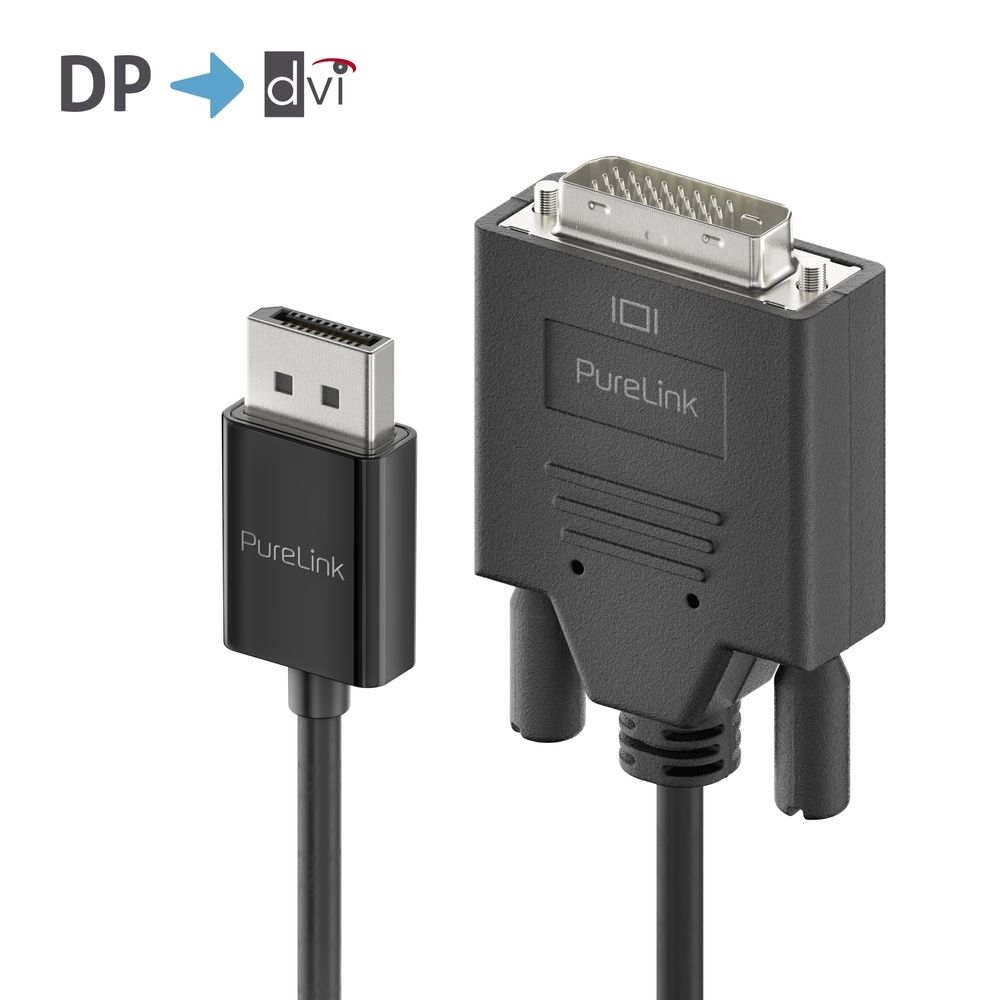

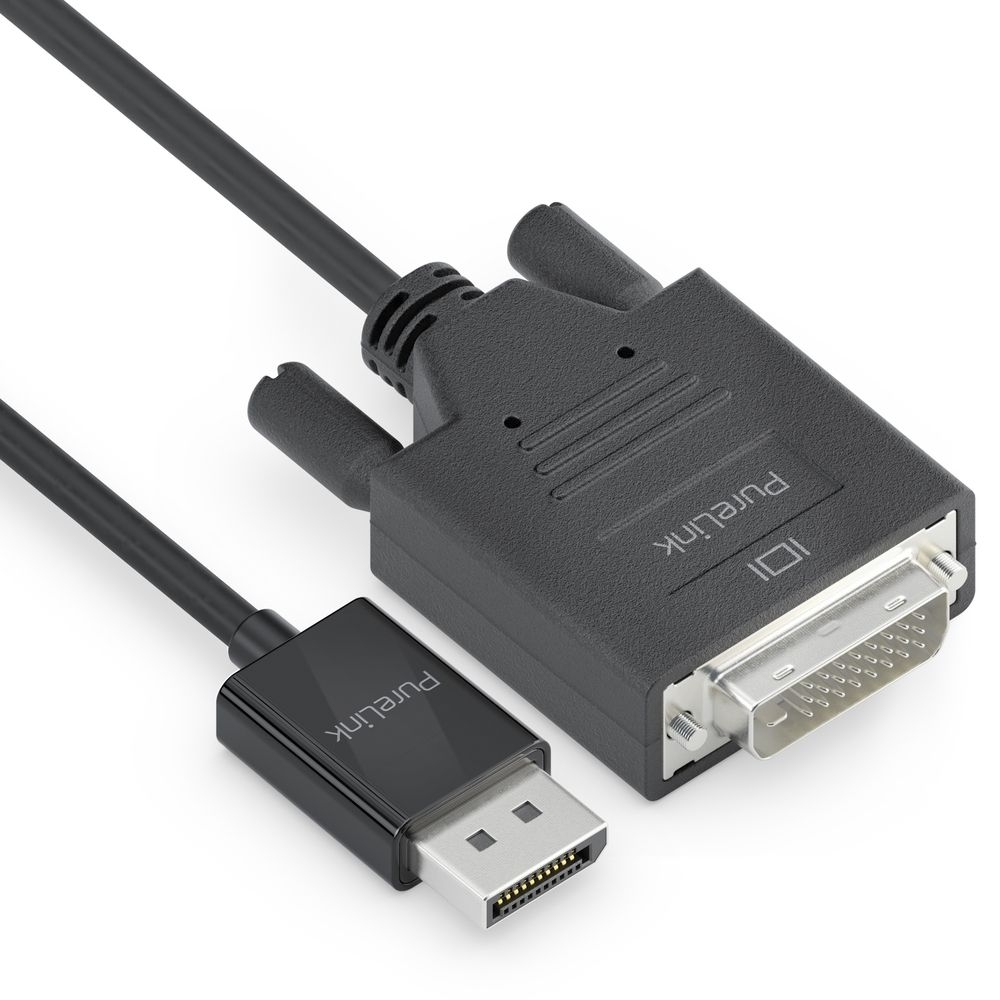

Premium DisplayPort to DVI Cable - 1920x1200 - WUXGA - Gold Plated Contacts
DisplayPort to DVI Cable - High-Quality Connection for Professional AV Applications
The DisplayPort to DVI Cable offers a reliable solution for connecting your devices with precision and clarity. Whether you're setting up a professional AV system or need a seamless connection for your home office, this cable delivers exceptional performance.
-
High-Resolution Display: Utilize DisplayPort 1.1 and DVI-D technology to achieve resolutions up to WUXGA (1920x1200). This ensures sharp and detailed visuals for your presentations, videos, and graphics.
-
Precision Connectivity: The gold-plated precision contacts and high purity copper conductors guarantee a stable and secure connection between your devices. Say goodbye to signal interference and enjoy uninterrupted viewing experiences.
-
Unidirectional Design: The DisplayPort male to DVI-D Single Link (24+1) male configuration ensures a seamless connection from your source device to the display. This unidirectional design simplifies the setup process and eliminates compatibility issues.
-
Triple Shielding: With triple shielding technology, this cable provides maximum protection against electromagnetic interference and signal degradation. Enjoy clear and consistent audio and video transmission without any disruptions.
-
Professional Grade Testing: Each cable is 100% tested to meet the standards of professional AV applications. Rest assured that this cable is reliable, durable, and ready to handle the demands of your audiovisual setup.
Whether you're a professional AV installer or a home user looking for reliable connections, this cable is the perfect solution for your audiovisual needs.
iSeries - Full Range of Cables and Adapters for All Common Types of AV Signals
The AV portfolio IS100 to IS171 (Adapters) and IS2000 to IS2221 (Cables) from PureLinks iSeries includes AV adapters and cables for the connection of source devices with DisplayPort, mini DisplayPort and USB-C connectors to display devices with HDMI, DVI, VGA and DisplayPort connectors. The cables and adapters enable the transmission of AV signals with the maximum bandwidth of the respective standard. Thus, all cables and adapters with HDMI connection support a bandwidth of up to 18 Gbps for resolutions up to 4K UltraHD 60Hz, those with DVI connection up to 4.95 Gbps for resolutions up to 2K WUXGA and the ones with DisplayPort connection up to 21.6 Gbps for resolutions up to 4K UltraHD 60Hz.
The cables are essentially unidirectional, i.e. they can only transport the signal in one direction. This is always clearly indicated. Only the cables and adapters with the same signal type on both sides (e.g. DisplayPort to DisplayPort) can be used bidirectionally.
All adapters feature a 0.10 meter long Portsaver pigtail cable with a very small bending radius, which provides effective strain relief to the connected devices sockets. All cables, including the Portsaver cables of the adapters, are triple-shielded and equipped with inner conductors made of tinned copper strands. Except the DisplayPort female sockets (PVC), the connectors of all cables and adapters are made of robust ABS material the metal plug housings themselves are always nickel-plated and the connection pins are always gold-plated. This allows for perfect signal transmission at all times while efficiently protecting against corrosion.
The USB-C plug of IS2200 up to IS2221 cables can be used reversibly, so there is no need to pay attention to the plug direction. All USB-C cables transmit AV streams using DisplayPort Alternate Mode (DP Alt Mode), provided the source device also supports DP Alt Mode. They are not suitable for USB data and power transmission.
The cable diameter varies between 4.5mm and 4.8mm depending on the signal type of the cable and is always 3.9mm for all cables with USB-C connection.
All cables are available in two colour variants. White cables end with the number "0" in the item number, the black versions with a "1".
The adapters and cables in this range at a glance.
Adapters:
IS100 / IS101: DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS110 / IS111: DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS120 / IS121: DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS140 / IS141: mini DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS150 / IS151: mini DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS160 / IS161: mini DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS170 / IS170: mini DisplayPort male to VGA female, unidirectional, max. 2K WUXGA 1920x1200
Cables:
IS2000 / IS2001: DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS2010 / IS2011: DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS2020 / IS2021: DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS2100 / IS2101: mini DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS2110 / IS2111: mini DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS2120 / IS2121: mini DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS2200 / IS2200: USB-C male to HDMI-A male, unidirectional, max. 18 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60Hz
IS2210 / IS2211: USB-C male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps via USB DP Alt-Mode, max. 2K WUXGA 1920x1200
IS2220 / IS2221: USB-C male to DisplayPort male, unidirectional, max. 21.6 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60Hz
iSeries - For mini DisplayPort or USB-C Devices such as MacBook,iMac and Mac mini™
The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect the USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry.
The cables are essentially unidirectional, i.e. they can only transport the signal in one direction. This is always clearly indicated. Only the cables and adapters with the same signal type on both sides (e.g. DisplayPort to DisplayPort) can be used bidirectionally.
All adapters feature a 0.10 meter long Portsaver pigtail cable with a very small bending radius, which provides effective strain relief to the connected devices sockets. All cables, including the Portsaver cables of the adapters, are triple-shielded and equipped with inner conductors made of tinned copper strands. Except the DisplayPort female sockets (PVC), the connectors of all cables and adapters are made of robust ABS material the metal plug housings themselves are always nickel-plated and the connection pins are always gold-plated. This allows for perfect signal transmission at all times while efficiently protecting against corrosion.
The USB-C plug of IS2200 up to IS2221 cables can be used reversibly, so there is no need to pay attention to the plug direction. All USB-C cables transmit AV streams using DisplayPort Alternate Mode (DP Alt Mode), provided the source device also supports DP Alt Mode. They are not suitable for USB data and power transmission.
The cable diameter varies between 4.5mm and 4.8mm depending on the signal type of the cable and is always 3.9mm for all cables with USB-C connection.
All cables are available in two colour variants. White cables end with the number "0" in the item number, the black versions with a "1".
The adapters and cables in this range at a glance.
Adapters:
IS100 / IS101: DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS110 / IS111: DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS120 / IS121: DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS140 / IS141: mini DisplayPort male to HDMI-A female, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS150 / IS151: mini DisplayPort male to DVI-D Single Link (24+1) female, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS160 / IS161: mini DisplayPort male to DisplayPort female, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS170 / IS170: mini DisplayPort male to VGA female, unidirectional, max. 2K WUXGA 1920x1200
Cables:
IS2000 / IS2001: DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS2010 / IS2011: DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS2020 / IS2021: DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS2100 / IS2101: mini DisplayPort male to HDMI-A male, unidirectional, max. 18 Gbps, max. 4K UltraHD 60Hz
IS2110 / IS2111: mini DisplayPort male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps, max. 2K WUXGA 1920x1200
IS2120 / IS2121: mini DisplayPort male to DisplayPort male, bidirectional, max. 21.6 Gbps, max. 4K UltraHD 60Hz
IS2200 / IS2200: USB-C male to HDMI-A male, unidirectional, max. 18 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60Hz
IS2210 / IS2211: USB-C male to DVI-D Single Link (24+1) male, unidirectional, max. 4.95 Gbps via USB DP Alt-Mode, max. 2K WUXGA 1920x1200
IS2220 / IS2221: USB-C male to DisplayPort male, unidirectional, max. 21.6 Gbps via USB DP Alt-Mode, max. 4K UltraHD 60Hz
iSeries - For mini DisplayPort or USB-C Devices such as MacBook,iMac and Mac mini™
The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect the USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry.
| Features |
| DisplayPort 1.1 / DVI-D for resolutions up to WUXGA / 1920x1200 |
| Gold plated precision contacts, unidirectional |
| DisplayPort male to DVI-D Single Link (24+1) male |
| High purity copper conductors and triple shielding |
| 100% tested for professional AV applications |
| Logistics Information | |
| Product 1. Net Weight in Kg | 0,10 |
| Product 1. Gross Weight in Kg | 0,10 |
| Product 1. Length in cm | 12 |
| Product 1. Width in cm | 12 |
| Product 1. Height in cm | 2 |
| Packaging 1. Length in cm | 16,5 |
| Packaging 1. Width in cm | 13 |
| Packaging 1. Height in cm | 2 |
| Master Carton Length in cm | 50 |
| Master Carton Width in cm | 33 |
| Master Carton Height in cm | 32 |
| Product Information | |
| Europeans Customs Tariff Nr. | 84718000000 |
| Country of Origin | China |
| Packaging Material | Plastic/Pape |
| VPE Information | |
| Master Packaging Unit (pcs) | 80 |
| Connections | |
| Connector material | ABS |
| Contact material | 24ct. gold plated, long-life design |
| Shielding | Yes |
| Connector 1 | DisplayPort male |
| Connector 2 | DVI-D (24+1) Single Link male |
| Dimensions Con.1 | ca. 26 x 20 x 9,5 mm |
| Dimensions Con.2 | 41 x 58 x 16 mm |
| Contacts | 24ct. gold plated, long-life design |
| Electric signal | |
| Maximum pixel clock / bandwidth | 4.95 Gbps |
| Cable | |
| Type | Round Cable |
| Lenght | 1.50m |
| Inner conductor material | Tinned Stranded Copper |
| AWG | 32AWG |
| Number of shieldings | 3 |
| Outer material | Very elastic PVC |
| Outer diameter | 4.8mm |
| Mechanical | |
| Operating temperature | Up to 80°C |
| Signal transmission | |
| Supported standards | DisplayPort 1.2, HBR2 | DVI-D Single Link with 18+1 Pins Connected |
| Transmission modes | Digital A/V signals |
| Maximum resolution | 2K WUXGA 1920x1200 @60Hz |
| Further standards | Packaging Giftbox, PAP21 |
| Weiteres | |
| Safety | CE, ROHS, REACH, WEE |
| Colour | black |
| Delivery Content |
| 1x Premium Active 2K DisplayPort / DVI Cable – 1.50m, Black |
Dokumente "Premium Active 2K DisplayPort / DVI Cable- 1.50m, black"
