Features
- HDMI / DVI-D for resolutions up to WUXGA / 1920x1200
- Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™)
- HDMI-A male to DVI-D Single Link (24+1) male
- High purity OFC copper conductors and triple shielding, AWG30
- Patented wave soldering and locking technology

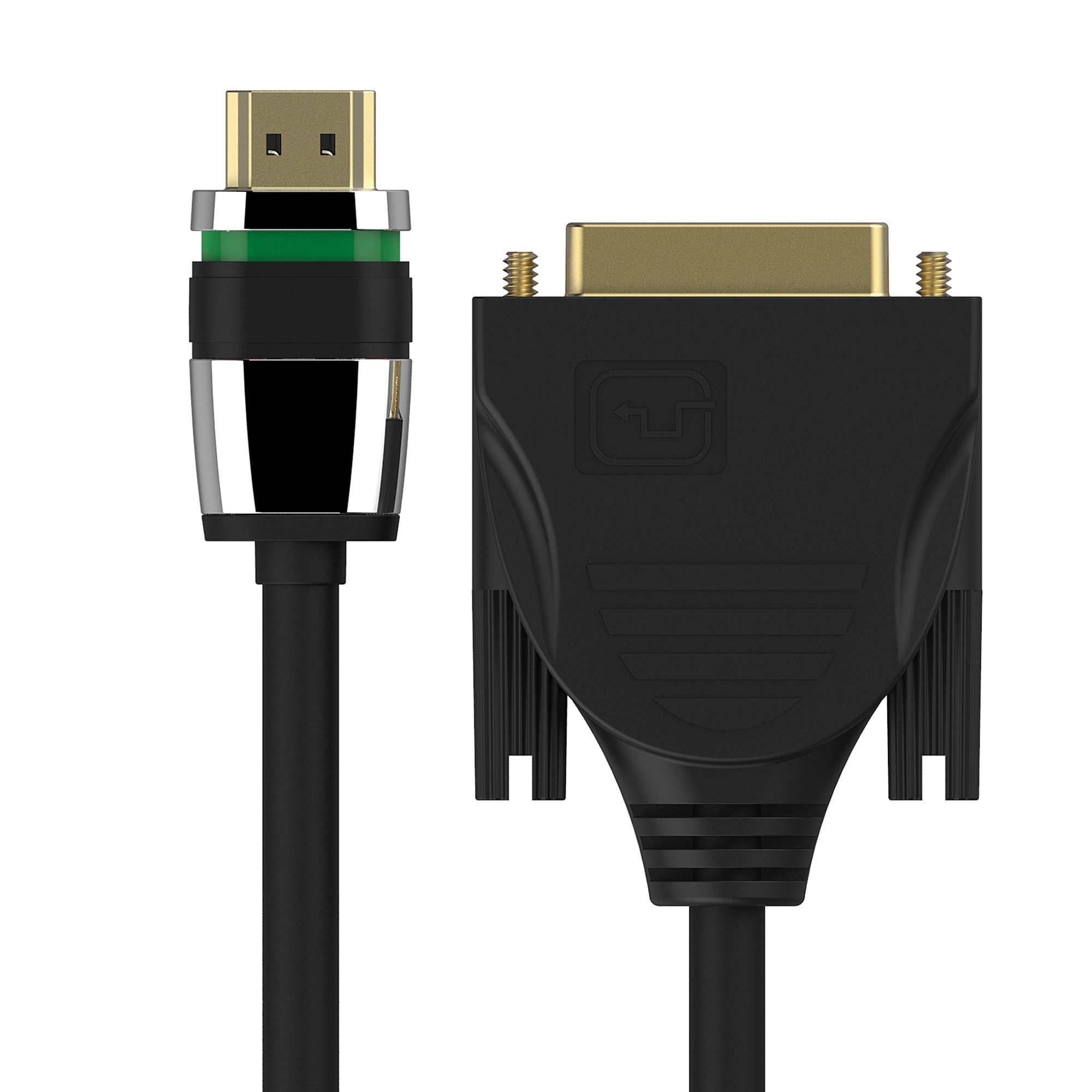

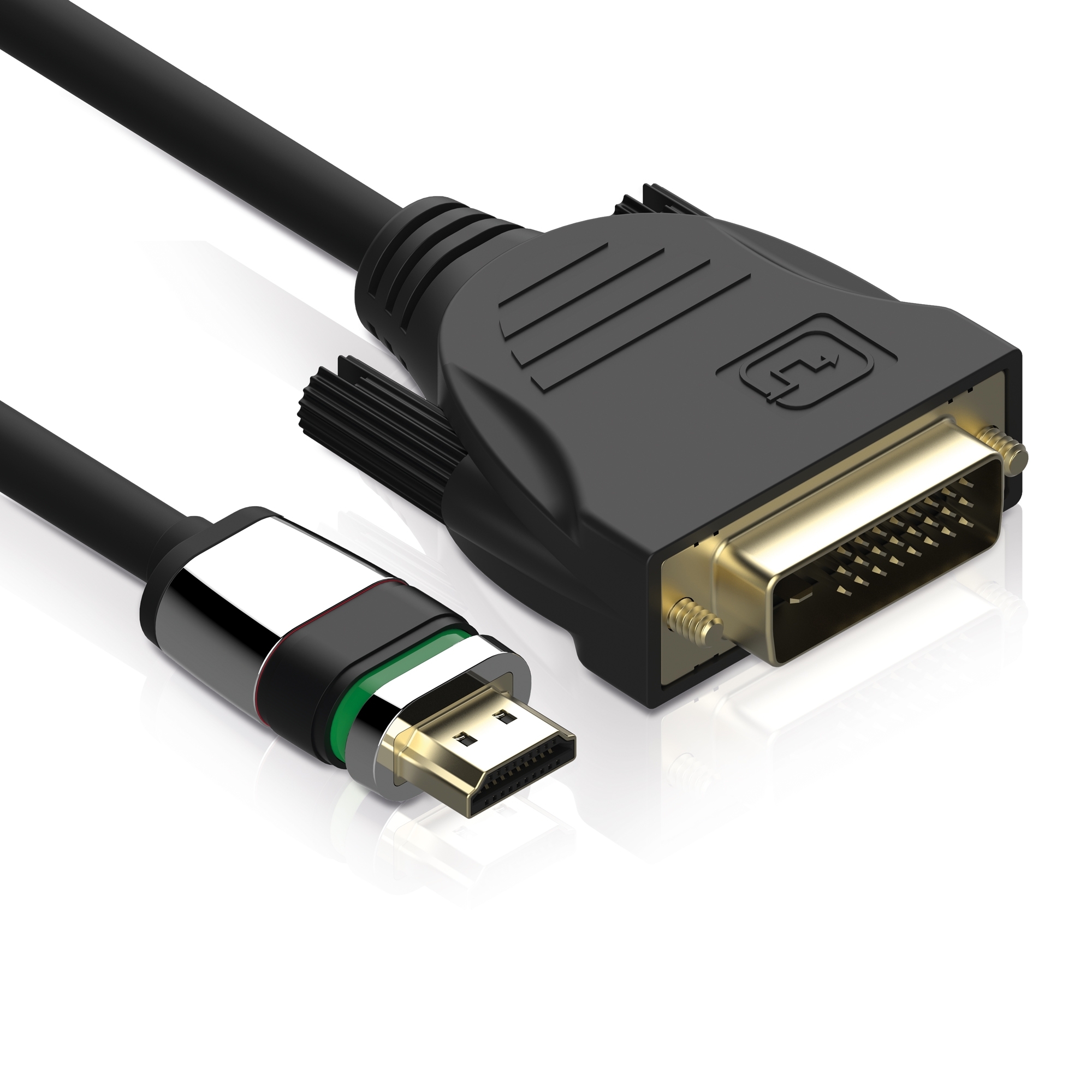

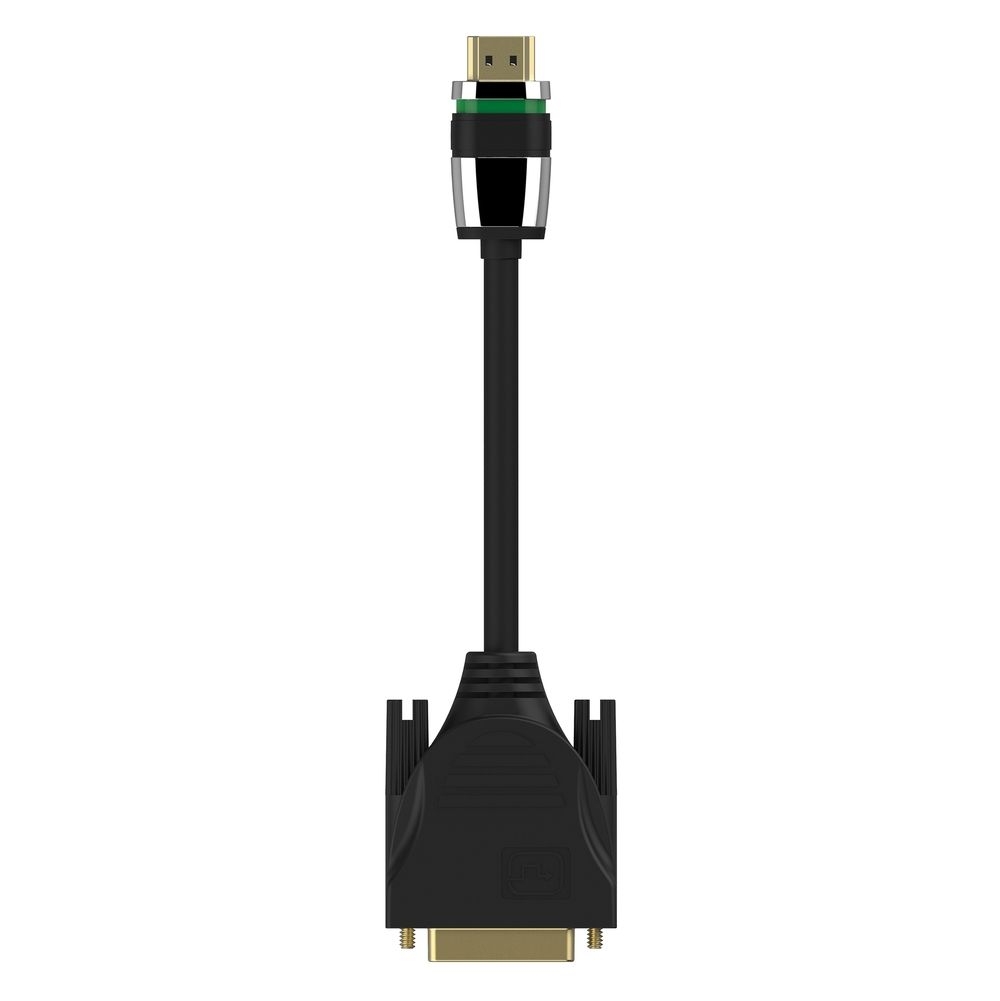

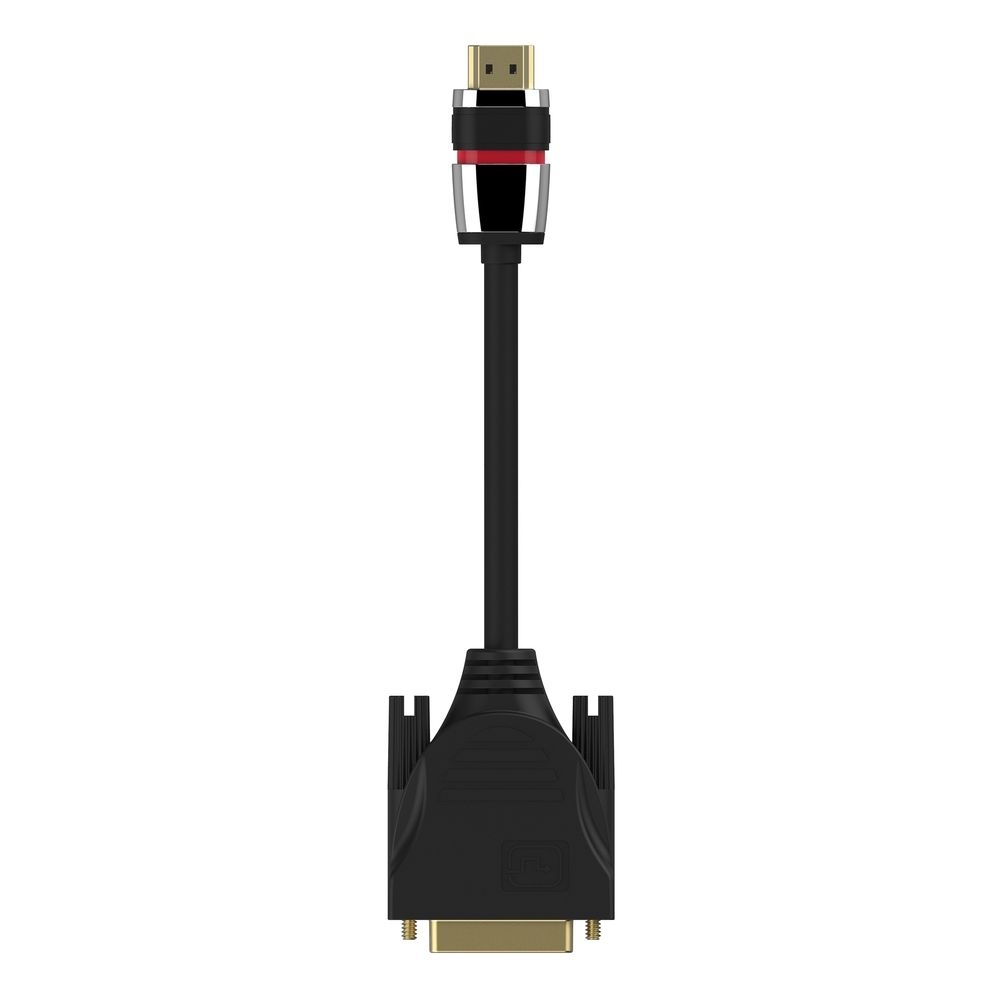

ULS1300 - High Speed HDMI / DVI Connection Cable with ULS™
The Ultimate Connection.The ULS1300 HDMI to DVI Connection cable (HDMI plug / DVI plug) features the patented Ultra-Lock System™ for uninterrupted, secure HDMI connections. It complies with all demands of the new HDMI 2.0 standard and offers an easy to handle security system for all HDMI Connections. The high-purity triple shielded OFC copper conductor, 24 carat gold plated contacts and 360° interlock switch provide ultimate connection quality. The DVI side is equipped with 2 standard screw caps. Ethernet channel (HEAC) and audio return channel are included.
Ultra Lock System™ - The patented, most secure Locking System for HDMI connections.
The PureLink HDMI to DVI Connection cable ULS1300 (HDMI male / DVI male) included in the Ultimate series provides the safest locking system for HDMI: The patented Ultra Lock System™. The cable with HDMI-A connector and DVI-I (24+1) connector allows resolutions up to FullHD / 1080p resolution.Ultra Lock System™ULS™ technology has been developed specifically for the uninterrupted and secure use of HDMI Connections. The innovative design locks the connector securely into the socket and is unique on the market. The safety lock can be used universally with any HDMI socket (female) and can be easily switched between the "Locked" and" Unlocked" positions using a 360° locking switch.Triple shieldingThe unique, three-layered shielding structure consists of a combination of 100% closed aluminium foil, a dense braid and an additional inner shielding. This makes the cables immune to interference and crosstalk. The high-purity inner conductor made of OFC copper can thus develop its full performance capability.Precisely fitting, durable and without lossesThe precision-manufactured and perfectly fitting plugs with 24-carat gold plated contacts guarantee optimum signal transmission and long-term reliable functionality.For professional applications and installationsOur Ultimate Series cables and adapters are manufactured exclusively in state-of-the-art manufacturing facilities and 100% tested prior to shipping. During the manufacturing process, the cables are subjected to more than ten quality tests, making them the most reliable choice on the market.
Features |
HDMI / DVI-D for resolutions up to WUXGA / 1920x1200 |
Gold plated precision contacts with PureLink ULS™ (Ultra-Lock-System™) |
HDMI-A male to DVI-D Single Link (24+1) male |
High purity OFC copper conductors and triple shielding, AWG30 |
Patented wave soldering and locking technology |
Logistics Information | |
Product 1. Net Weight in Kg | 0,18 |
Product 1. Gross Weight in Kg | 0,23 |
Product 1. Length in cm | 15 |
Product 1. Width in cm | 15 |
Product 1. Height in cm | 2,3 |
Packaging 1. Length in cm | 22,8 |
Packaging 1. Width in cm | 16,6 |
Packaging 1. Height in cm | 0,01 |
Master Carton Length in cm | 39,5 |
Master Carton Width in cm | 36,5 |
Master Carton Height in cm | 30 |
Product Information | |
Europeans Customs Tariff Nr. | 85444290900 |
Country of Origin | China |
Packaging Material | Plastic |
VPE Information | |
Master Packaging Unit (pcs) | 36 |
Secondary Packaging Unit (pcs) | 18 |
Connections | |
Connector material | Plastics / Metal |
Contact material | 24 ct. gold plated, long-life Design |
Shielding | Yes |
Connector 1 | HDMI Type A Plug (19pin) incl. ULS™ |
Connector 2 | DVI-D male (24+1) |
Contacts | 24 ct. gold plated, long-life Design |
Electric signal | |
Maximum pixel clock / bandwidth | 2K / FullHD / 1080p / WUXGA (1920x1200) @60Hz |
HDCP | Yes |
EDID | Yes |
Cable | |
Type | Round Cable |
Lenght | 3.0m |
Inner conductor material | High-purity, oxygen-free OFC Copper |
AWG | 30AWG |
Number of shieldings | 3 |
Shielding 1 | Aluminium Foil (100% Density) |
Shielding 3 | Mesh (100% Density) |
Outer material | Highly elastic PVC |
Outer diameter | 5.7 mm |
Signal transmission | |
Supported standards | HDMI 2.0, DVI-D (24+5) |
Transmission modes | Digital Audio and Video Signals |
Supported Colors | Deep Color, x.v.Color™ |
Supported audio standards | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD |
Further standards | HDCP, FullHD (1080i/p), HD ready (720i/p), SDTV (480i/p) |
Weiteres | |
Safety | CE, ATC |
Colour | black |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x ULS1300-030 High Speed HDMI / DVI Connection Cable, 3,0m |
Dokumente "Certified 2K HDMI / DVI Cable – 3.00m"
