Features
  • USB 3.2 (Gen 2x1) – 10Gbps data transmission
  • Gold plated precision contacts
  • USB-C male to USB-C male
  • High purity copper conductors and triple shielding
  • E-Marker, USB Power Delivery 100W, DP Alt-Mode

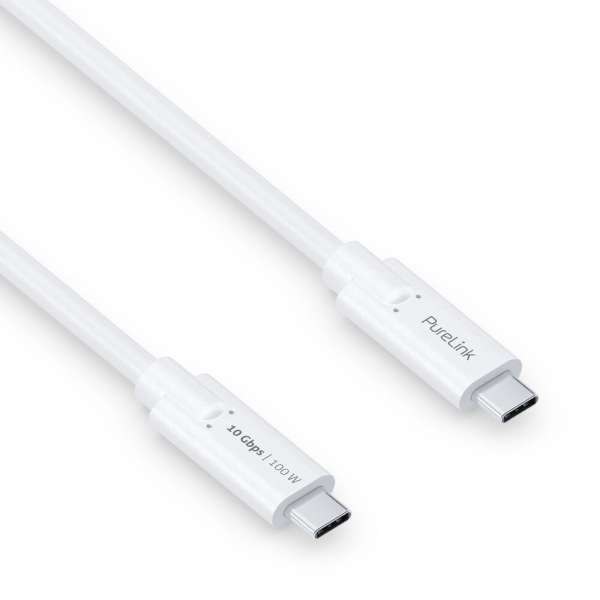

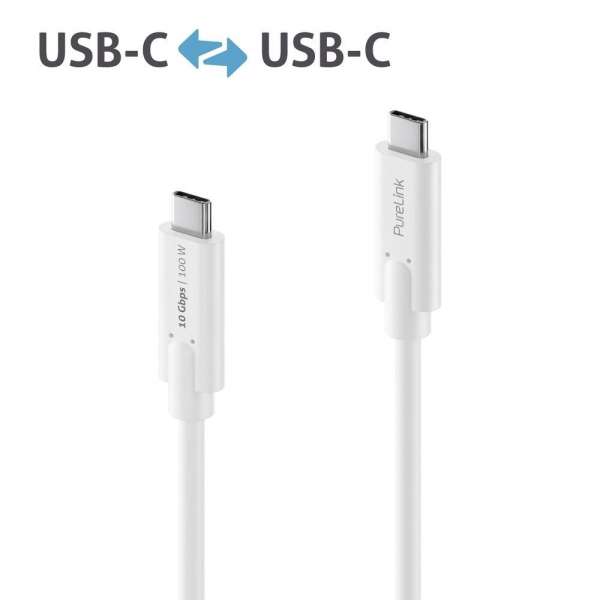

Versatile connectivity and reliable performance with the iSeries premium USB-C male to USB-C male cable.

USB 3.2 (Gen 2x1) Cable: High-Speed Data Transmission and Reliable Connectivity

The USB 3.2 (Gen 2x1) cable offers a range of features for seamless and efficient data transfer. With its high-speed performance and reliable connectivity, this product meets the needs of professional AV setups and IT environments.

  • High-Speed Data Transmission: The USB 3.2 (Gen 2x1) cable supports 10Gbps data transmission, ensuring fast and efficient transfer of files and data.

  • Reliable Connectivity: Featuring gold plated precision contacts and high purity copper conductors with triple shielding, this cable provides reliable connectivity for uninterrupted data transfer.

  • USB Power Delivery 100W: The cable supports USB Power Delivery up to 100W, allowing for fast charging of compatible devices.

  • 4K60 DP Alt-Mode: With 4K60 DP Alt-Mode support, this cable enables video output from USB-C devices to DisplayPort displays for enhanced multimedia experiences.

PureLink iSeries - Cables and Adapters for Apple Devices and More
The iSeries' USB 3.2 cable range IS2400 to IS2611 by PureLink is designed for connecting devices with USB-C and/or USB-A ports. The cables enable data transfer via USB with 5Gbps or 10Gbps and are compliant with the USB 3.2 (Gen1 or Gen2) standard, also called SuperSpeed USB 5Gbps / SuperSpeed USB 10Gbps or formerly SuperSpeed USB / SuperSpeed+ USB. The cables in the range are equipped with USB-C or USB-A connectors on both sides, or with USB-C on one side and a USB-A connector on the other. They are equipped with a nickel-plated housing and gold-plated precision contacts. The USB-C plug is reversible, so there is no need to pay attention to the plug direction. The cables themselves are triple-shielded and equipped with high-purity copper inner conductors. Of course, all cables are backwards compatible with the older USB 2.0 / 1.1 specification.
All cables with USB-C connectors on both sides (IS2500 to IS2511) are equipped with E-Marker and therefore support USB Power Delivery (USB PD) with up to 5A / 20V / 100W. They also feature DisplayPort Alt Mode compatibility and can therefore be used for the transmission of AV streams in addition to data and power, provided that the source and display devices also support the DisplayPort Alt Mode. This mode thus also enables the connection of USB docking stations with multiple USB and separate AV connections, such as HDMI or DisplayPort.
All cables with at least one USB-A connector (IS2400 to IS2411 and IS2600 to IS2611) do not support DisplayPort Alt-Mode or USB Power Delivery but are suitable for a maximum charging power up to 3A / 5V / 15W.
The cable diameter varies depending on the length of the cable. All cables are available in two colour variants. White cables end with the digit "0" in the item number, the black versions with a "1".

The cables in this range at a glance:
IS2400 / IS2401: USB-A to USB-A, USB 3.2 (Gen1), 5 Gbps, 3A / 5V / 15W max. power output
IS2410 / IS2411: USB-A to USB-A, USB 3.2 (Gen2), 10 Gbps, 3A / 5V / 15W max. power output
IS2500 / IS2501: USB-C to USB-C, USB 3.2 (Gen1), 5 Gbps, DP Alt-Mode, E-Marker, USB Power Delivery up to 3A / 20V / 60W
IS2510 / IS2511: USB-C to USB-C, USB 3.2 (Gen2), 10 Gbps, DP Alt-Mode, E-Marker, USB Power Delivery up to 5A / 20V / 100W
IS2600 / IS2601: USB-C to USB-A, USB 3.2 (Gen1), 5 Gbps, 3A / 5V / 15W max. power output
IS2610 / IS2611: USB-C to USB-A, USB 3.2 (Gen2), 10 Gbps, 3A / 5V / 15W max. power output

iSeries - For mini DisplayPort / USB-C Devices such as MacBook, iMac and Mac mini™
The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect your USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry with you, wherever you go.
Features
USB 3.2 (Gen 2x1) – 10Gbps data transmission
Gold plated precision contacts
USB-C male to USB-C male
High purity copper conductors and triple shielding
E-Marker, USB Power Delivery 100W, DP Alt-Mode
Logistics Information
Product 1. Net Weight in Kg 0,03
Product 1. Gross Weight in Kg 0,03
Product 1. Length in cm 10
Product 1. Width in cm 8,5
Product 1. Height in cm 1,5
Packaging 1. Length in cm 14,5
Packaging 1. Width in cm 9
Packaging 1. Height in cm 2
Master Carton Length in cm 45
Master Carton Width in cm 34
Master Carton Height in cm 34
Product Information
Europeans Customs Tariff Nr. 85444290900
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 120
Secondary Packaging Unit (pcs) 10
Connections
Connector material PVC, nickel-plated housing
Shielding Yes
Connector 1 USB-C male
Connector 2 USB-C male
Dimensions Con.1 33,9 x 12,4 x 6,3 mm
Dimensions Con.2 33,9 x 12,4 x 6,3 mm
Electric signal
Maximum data rate Gen 2 - 10Gbps
Cable
Type Round Cable
Lenght 0.50m
Inner conductor material Tinned Copper
AWG AWG30
Number of shieldings 3
Outer material Very elastic PVC
Outer diameter 5.2mm
Mechanical
Operating temperature Up to 80°C
Humidity 0~95°%
Signal transmission
Transmission modes Data, Power incl. USB Power Delivery, DP Alt-Mode
Weiteres
Safety CE, FCC, ROHS, REACH
Colour white
Warranty 3 Years Manufacturer's Warranty
Delivery Content
1x IS2510-005 Premium USB 3.2 (Gen 2) USB-C Cable - 0.50m, white
