- Connection Cables
- USB
- IS2600-005
- USB 3.2 (Gen 1x1) – 5Gbps data transmission
- Gold plated precision contacts
- USB-C male to USB-A male
- High purity copper conductors and triple shielding
- Power transmission with max. power output 3A / 5V / 15W

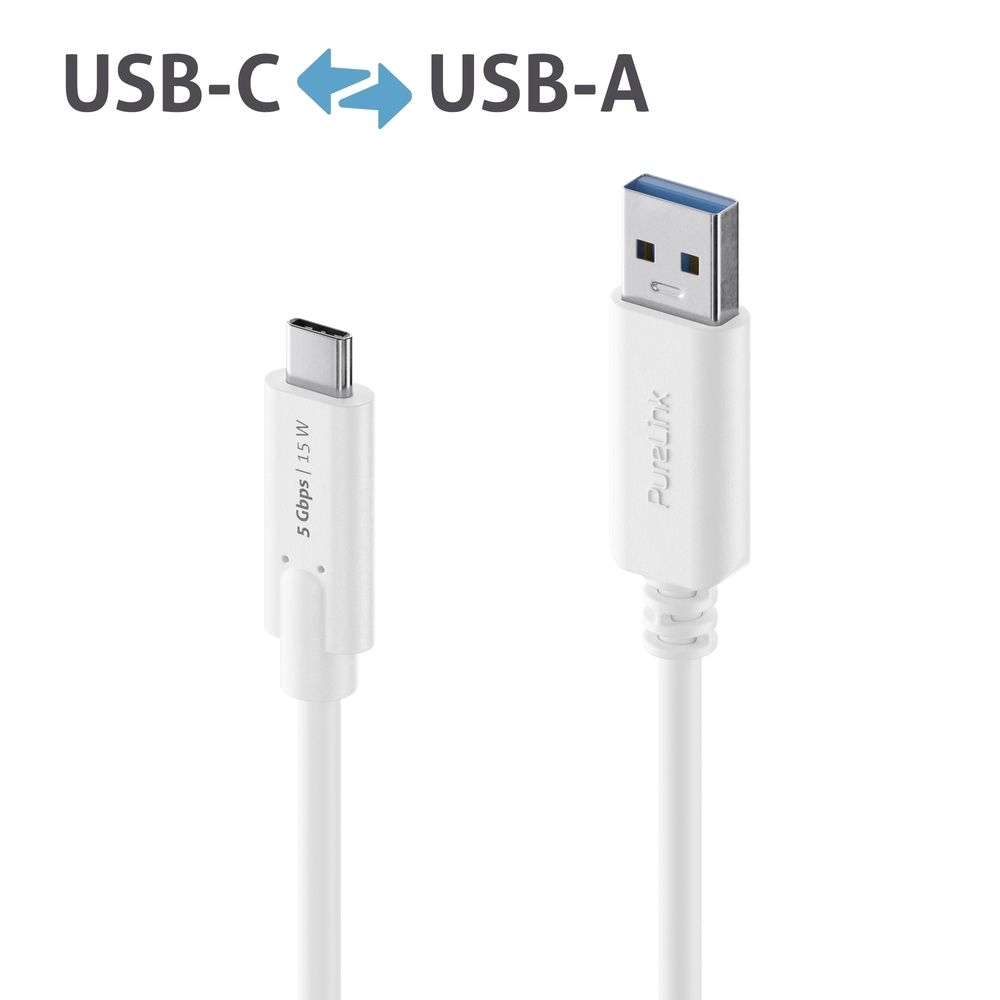

USB 3.2 Gen 1x1 Gold-Plated Cable: Reliable Data Transmission and Power Delivery
The USB 3.2 Gen 1x1 Gold-Plated Cable is designed to provide seamless connectivity and power delivery for your devices. Whether you need to transfer data or charge your devices, this cable offers high performance and reliability.
-
Fast Data Transmission: With a data transmission speed of 5Gbps, this cable ensures quick and efficient transfer of files and data between your devices. Say goodbye to slow transfer speeds and enjoy a seamless experience.
-
Precision Gold-Plated Contacts: The gold-plated contacts on this cable ensure a stable and reliable connection between your devices. Experience minimal signal loss and interference for a smooth and uninterrupted data transfer process.
-
USB-C Male to USB-A Male: This cable features a USB-C male connector on one end and a USB-A male connector on the other end, providing compatibility with a wide range of devices. Connect your USB-C devices to USB-A ports with ease.
-
High-Quality Construction: The cable is built with high purity copper conductors and triple shielding to ensure maximum durability and signal integrity. Enjoy a long-lasting and reliable connection for all your data transmission needs.
-
Power Delivery Capability: With a maximum power output of 3A/5V/15W, this cable supports power delivery for charging your devices efficiently. Keep your devices powered up and ready to use at all times.
The USB 3.2 Gen 1x1 Gold-Plated Cable is the perfect solution for all your data transfer and power delivery needs.
All cables with USB-C connectors on both sides (IS2500 to IS2511) are equipped with E-Marker and therefore support USB Power Delivery (USB PD) with up to 5A / 20V / 100W. They also feature DisplayPort Alt Mode compatibility and can therefore be used for the transmission of AV streams in addition to data and power, provided that the source and display devices also support the DisplayPort Alt Mode. This mode thus also enables the connection of USB docking stations with multiple USB and separate AV connections, such as HDMI or DisplayPort.
All cables with at least one USB-A connector (IS2400 to IS2411 and IS2600 to IS2611) do not support DisplayPort Alt-Mode or USB Power Delivery but are suitable for a maximum charging power up to 3A / 5V / 15W.
The cable diameter varies depending on the length of the cable. All cables are available in two colour variants. White cables end with the digit "0" in the item number, the black versions with a "1".
The cables in this range at a glance:
IS2400 / IS2401: USB-A to USB-A, USB 3.2 (Gen1), 5 Gbps, 3A / 5V / 15W max. power output
IS2410 / IS2411: USB-A to USB-A, USB 3.2 (Gen2), 10 Gbps, 3A / 5V / 15W max. power output
IS2500 / IS2501: USB-C to USB-C, USB 3.2 (Gen1), 5 Gbps, DP Alt-Mode, E-Marker, USB Power Delivery up to 3A / 20V / 60W
IS2510 / IS2511: USB-C to USB-C, USB 3.2 (Gen2), 10 Gbps, DP Alt-Mode, E-Marker, USB Power Delivery up to 5A / 20V / 100W
IS2600 / IS2601: USB-C to USB-A, USB 3.2 (Gen1), 5 Gbps, 3A / 5V / 15W max. power output
IS2610 / IS2611: USB-C to USB-A, USB 3.2 (Gen2), 10 Gbps, 3A / 5V / 15W max. power output

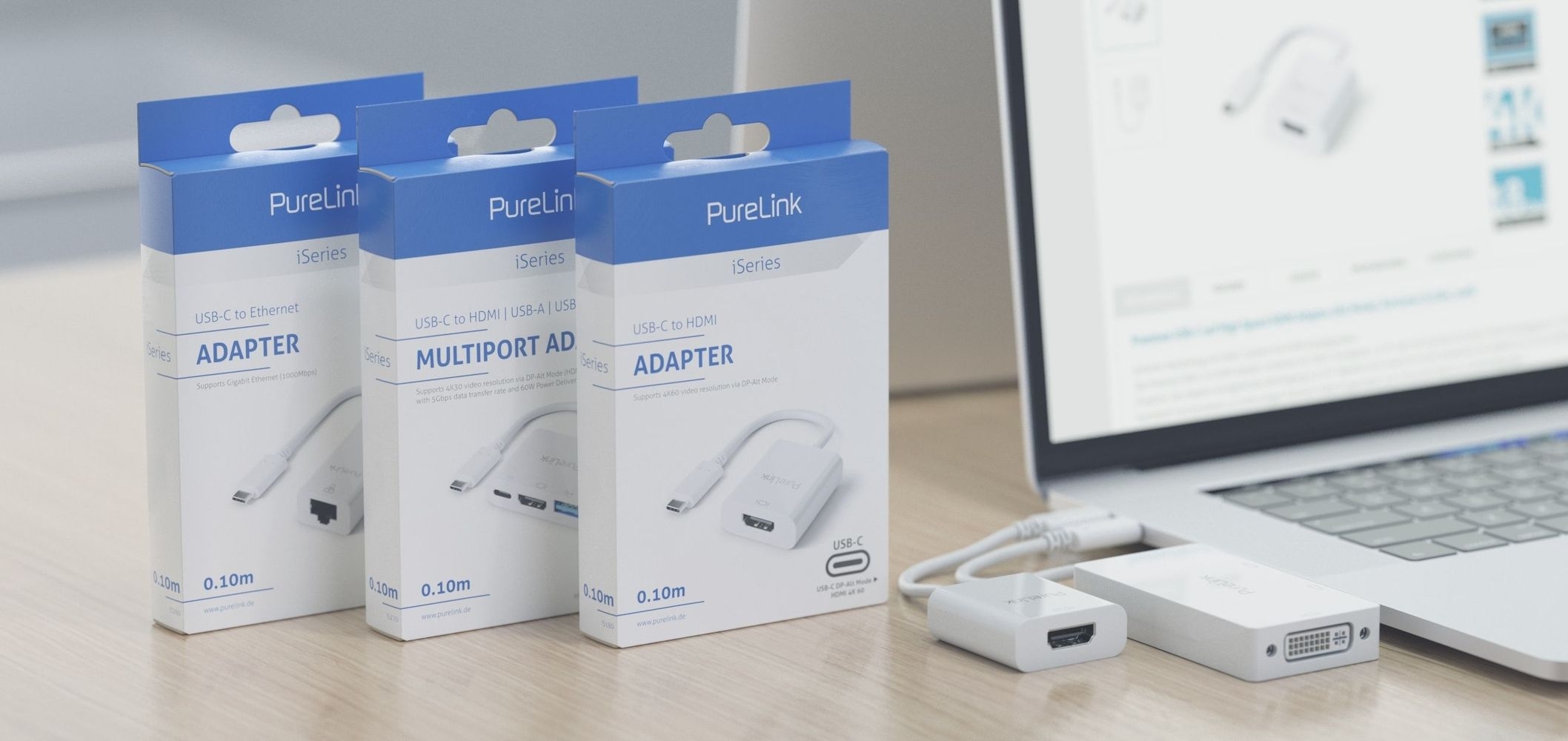

iSeries - For mini DisplayPort / USB-C Devices such as MacBook, iMac and Mac mini™
The iSeries from PureLink offers a full range of cables and adapters for all common types of AV signals, as well as pure USB-C cables for charging devices and transferring AV and/or data. Connect your USB-C, mini DisplayPort or Thunderbolt enabled Apple device directly to any standard digital or analog display via USB-C, VGA, DVI, HDMI or DisplayPort. Designed with portability in mind, the iSeries is lightweight, compact and easy to carry with you, wherever you go.
Features |
USB 3.2 (Gen 1x1) – 5Gbps data transmission |
Gold plated precision contacts |
USB-C male to USB-A male |
High purity copper conductors and triple shielding |
Power transmission with max. power output 3A / 5V / 15W |
Logistics Information | |
Product 1. Net Weight in Kg | 0,02 |
Product 1. Gross Weight in Kg | 0,02 |
Product 1. Length in cm | 10 |
Product 1. Width in cm | 8,5 |
Product 1. Height in cm | 1,5 |
Packaging 1. Length in cm | 14,5 |
Packaging 1. Width in cm | 9 |
Packaging 1. Height in cm | 2 |
Master Carton Length in cm | 45 |
Master Carton Width in cm | 34 |
Master Carton Height in cm | 34 |
Product Information | |
Europeans Customs Tariff Nr. | 85444290900 |
Country of Origin | China |
Packaging Material | Plastic/Paper |
VPE Information | |
Master Packaging Unit (pcs) | 120 |
Connections | |
Connector material | PVC, nickel-plated housing |
Shielding | Yes |
Connector 1 | USB-C male |
Connector 2 | USB-A male |
Dimensions Con.1 | 33,9 x 12,4 x 6,3 mm |
Dimensions Con.2 | 38,4 x 15,5 x 8,15 mm |
Electric signal | |
Maximum data rate | Gen 1 - 5Gbps |
Cable | |
Type | Round Cable |
Lenght | 0.50m |
Inner conductor material | Tinned Copper |
AWG | AWG30 |
Number of shieldings | 3 |
Outer material | Very elastic PVC |
Outer diameter | 4.5mm |
Mechanical | |
Operating temperature | Up to 80°C |
Humidity | 0~95°% |
Signal transmission | |
Transmission modes | Data and power |
Weiteres | |
Safety | CE, FCC, ROHS, REACH |
Colour | white |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x IS2600-005 Premium USB 3.2 (Gen 1) USB-C / USB-A Cable - 0.50m, white |
