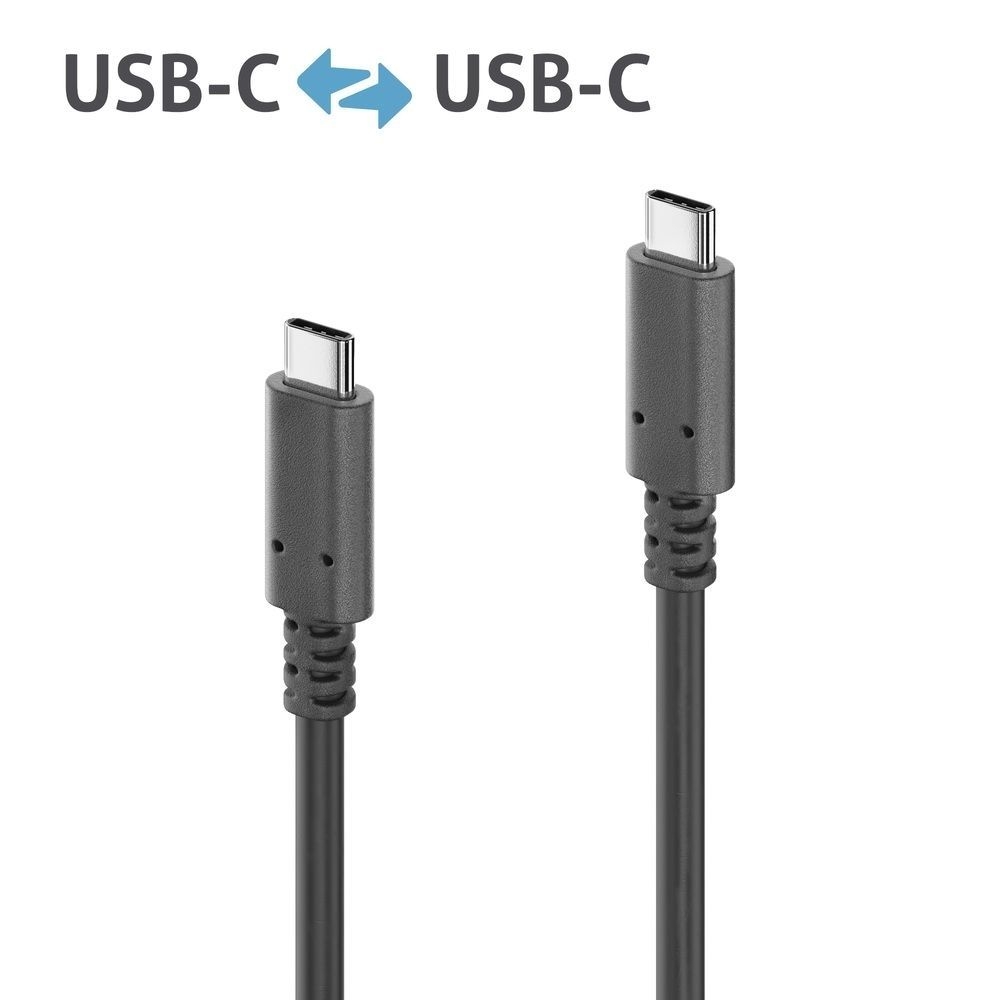

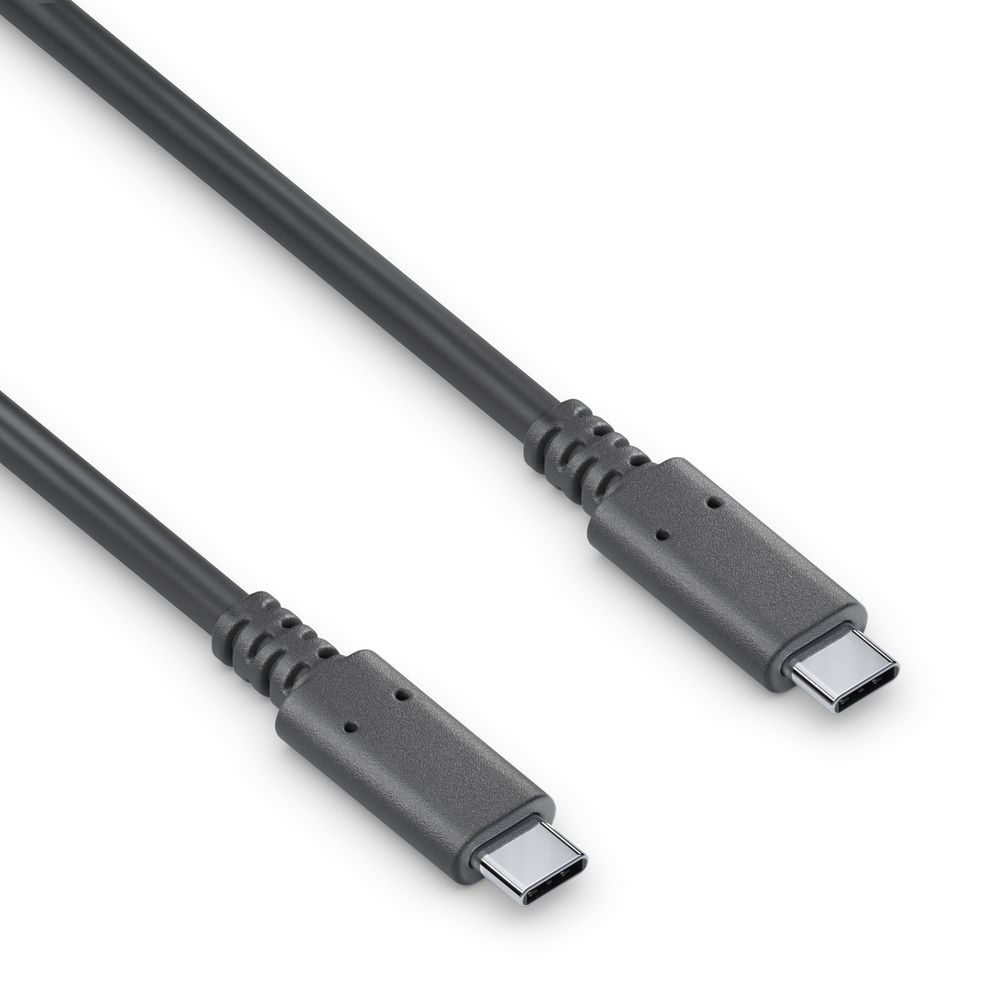

USB 3.2 USB-C Cable with E-Marker – 0.50m

The USB-C cable range PI6000 to PI6100 in the PureInstall series from PureLink is designed for connecting devices with USB-C or USB-C / USB-A ports. The cables enable data transfer via USB with up to 20Gbps and are compliant with various USB 3.2 SuperSpeed standards. The cables in the range are equipped with USB-C connectors on both sides (PI6000), or with USB-C on one side and USB-A connector on the other (PI6100). They feature a nickel-plated plug housing and gold-plated precision contacts. The USB-C plug is reversible, so there is no need to pay attention to the plug direction. The cables themselves are triple-shielded and equipped with inner conductors made of high-purity copper. All cables are of course also backwards compatible with the older USB 2.0 / 1.1 specifications.

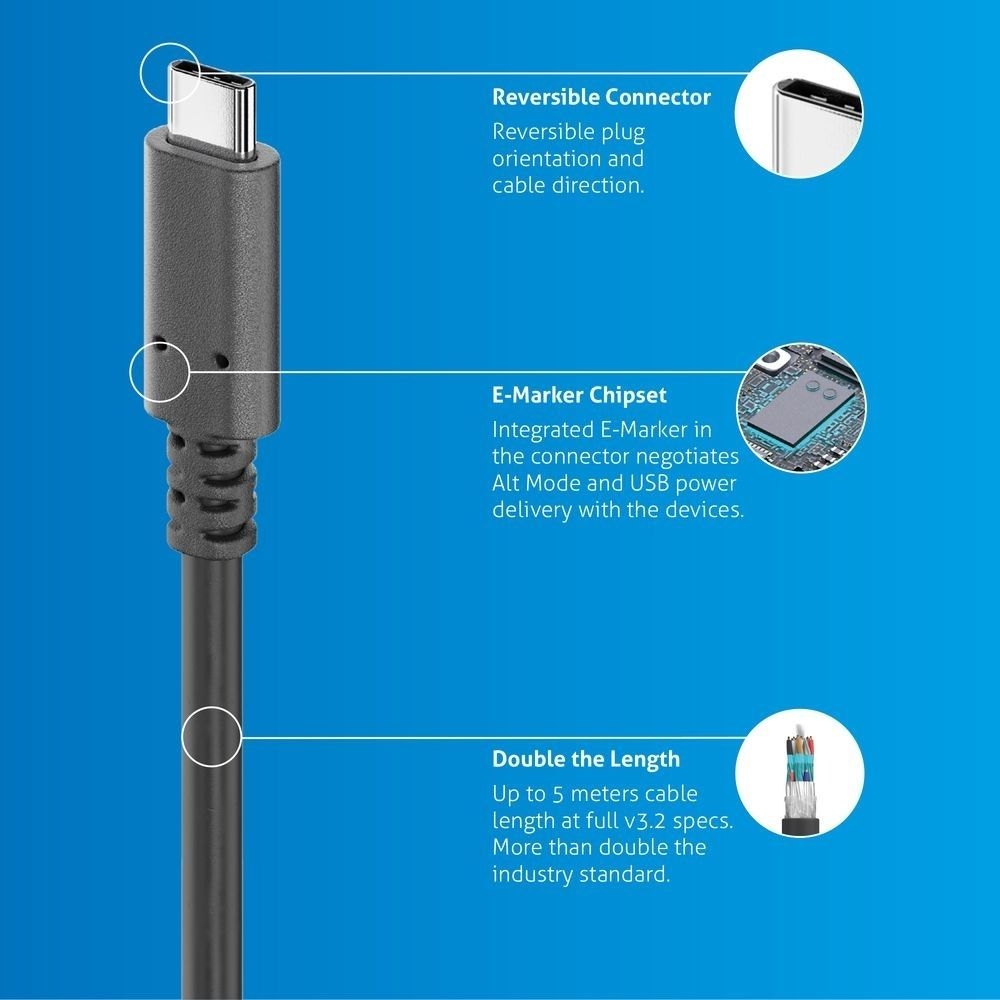

The USB-C only cables (PI6000) are equipped with E-Marker chipset and therefore support USB Power Delivery (USB PD) with up to 5A / 20V / 100W. They are also compatible with the "DisplayPort Alt-Mode" and can therefore be used for the transmission of AV streams in addition to data and power transmission, provided that the source and display device also support the DP Alt-Mode. The transmission is according to DisplayPort 1.4 / 1.2 Alt-Mode standard and supports resolutions up to 8K / UltraHD-2 with 30Hz. When transmitting DisplayPort 1.4 AV signals via Alt-Mode, the cables support a maximum data rate of the USB 2.0 specification for the simultaneous data connection. A full data rate can be achieved if the simultaneous AV resolution matches the DisplayPort 1.2 specification.
USB Alt-Mode also enables the connection of USB docking stations with multiple USB and separate AV ports as well as USB Power Delivery.
All cables with USB-A connector (PI6100) include no E-Marker and do not support DisplayPort Alt-Mode as well as USB Power Delivery. Their maximum charging power is 3A / 5V / 15W.

The cables in this range at a glance:
PI6000 0.50m / 1.00m: passive, USB-C to USB-C, USB 3.2 (Gen 2x2) with 20Gbps or USB4 (Gen 2x2) with 20Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 5A / 20V / 100W.
PI6000 1.50m / 2.00m: passive, USB-C to USB-C, USB 3.2 (Gen 1x2) with 10Gbps or USB4 (Gen 2x2) with 20Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 5A / 20V / 100W
PI6000 3.00m / 5.00m: active with APO™, USB-C to USB-C, USB 3.2 (Gen 2x1), 10Gbps, DP Alt-Mode up to 8K 30Hz, E-Marker, USB Power Delivery up to 3A / 20V / 60W
PI6100 0.50m / 1.00m: passive, USB-C to USB-A, USB 3.2 (Gen 2x1), 10Gbps, 3A / 5V / 15W max. output power
PI6100 1.50m / 2.00m: passive, USB-C to USB-A, USB 3.2 (Gen 1x1), 5Gbps, 3A / 5V / 15W max. output power
PI6100 3.00m / 5.00m: active with APO™, USB-C to USB-A, USB 3.2 (Gen 2x1), 10Gbps, 3A / 5V / 15W max. output power

PureInstall - Benchmark for Professional Installations
Our high-end PureInstall Series guarantees certified PureLink quality at best value. Premium materials, perfectly fitting plugs and connectors, gold plated contacts, as well as the absence of anything unnecessary make PureLink products a good investment wherever they are used. In order to offer the greatest degree of flexibility the PureInstall series includes premium cables, multi-use adapters, as well as signal amplifiers, wall plates and other installation accessories. By choosing the best quality from one source, you can be sure that everything fits together and simply works.
