PM-CART-70CB

PureMounts® TV Cart - Single Display up to 70"

Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70" Preview: PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"
PureMounts® TV Standfuß mobil - Single Display bis 70"

PureMounts
ONEAV B2B-SHOP
Features

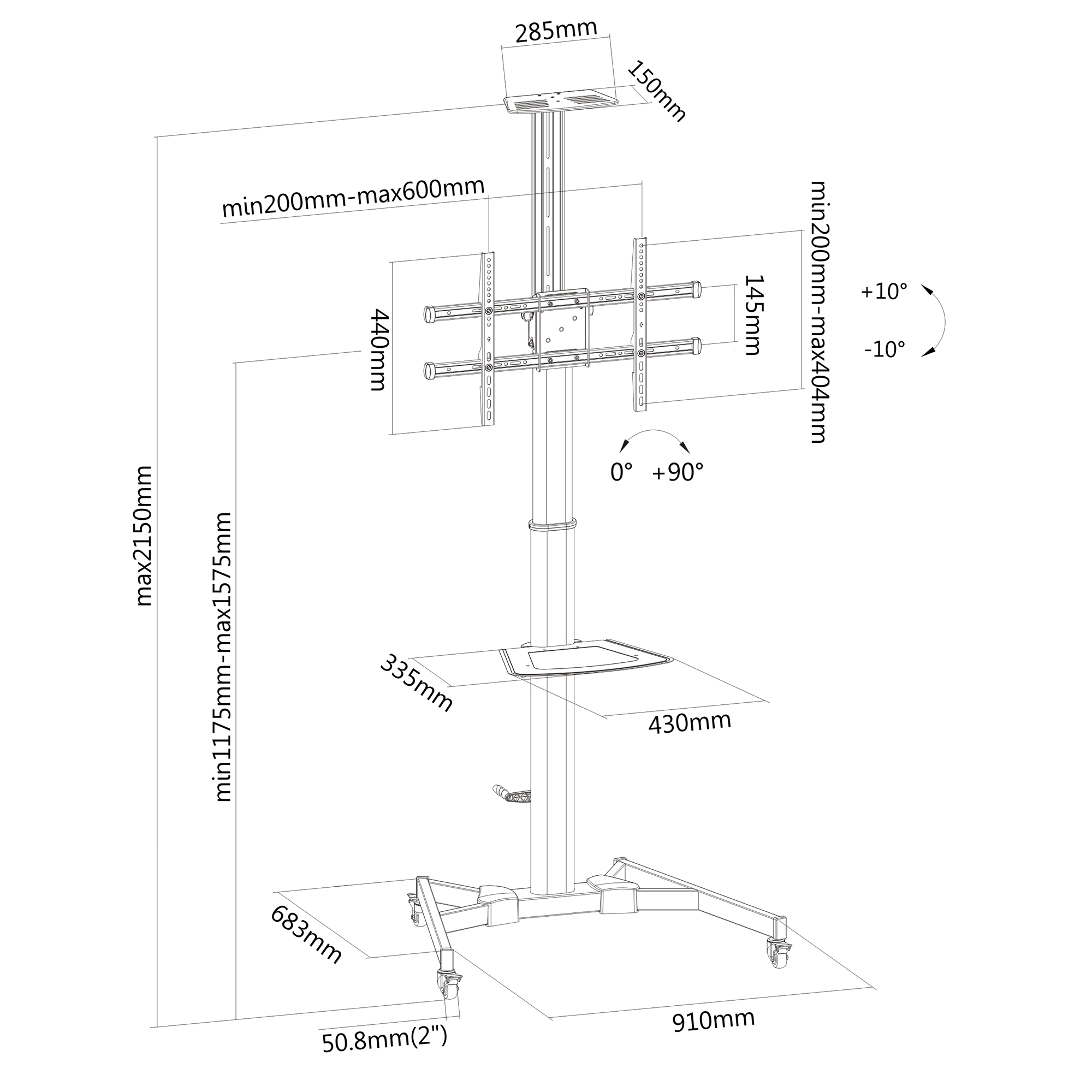

  • PureMounts DS TV cart with max. load capacity of 50kg incl. camera tray and AV shelf (steel, 5kg) || VESA 200x200 up to 600x400 || Material: Steel / Plastics || Colour: Black
  • Height adjustment without increments by hand crank between 1285mm and 1605mm | Max. height of 2180mm incl. fully extended camera tray
  • Integrated cable guide for neat cable management || Shock absorbing wheels
  • Tilt: +10° up to -10° || Rotation: 0° up to +90° || Swivel: 360° (wheels)
  • Delivery Content: 1x Cart PM-CART-70CB + 1x Shelf for Peripherals + 1x Tray for Camera
PureMounts
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
PureMounts Mounting Solutions - Always a Great Choice!
PureMounts DS TV cart PM-CART-70CB for LCD / LED / Plasma screens from 37 "to 70", seamlessly height adjustable, 50kg load max., VESA 600x400mm, black
Many Functions, Fair Conditions
The PM-CART-70CB TV cart is compatible with LED, LCD and plasma TVs with a VESA hole size of 200x200 to 600x400 (app. 37" to 70").
It has a maximum load capacity of 50kg and supports the VESA hole dimensions 200x200, 300x300, 400x200, 400x400, 600x400.
The cart is made of powder-coated steel with plastic applications and is therefore not susceptible to corrosion.

Full-Motion

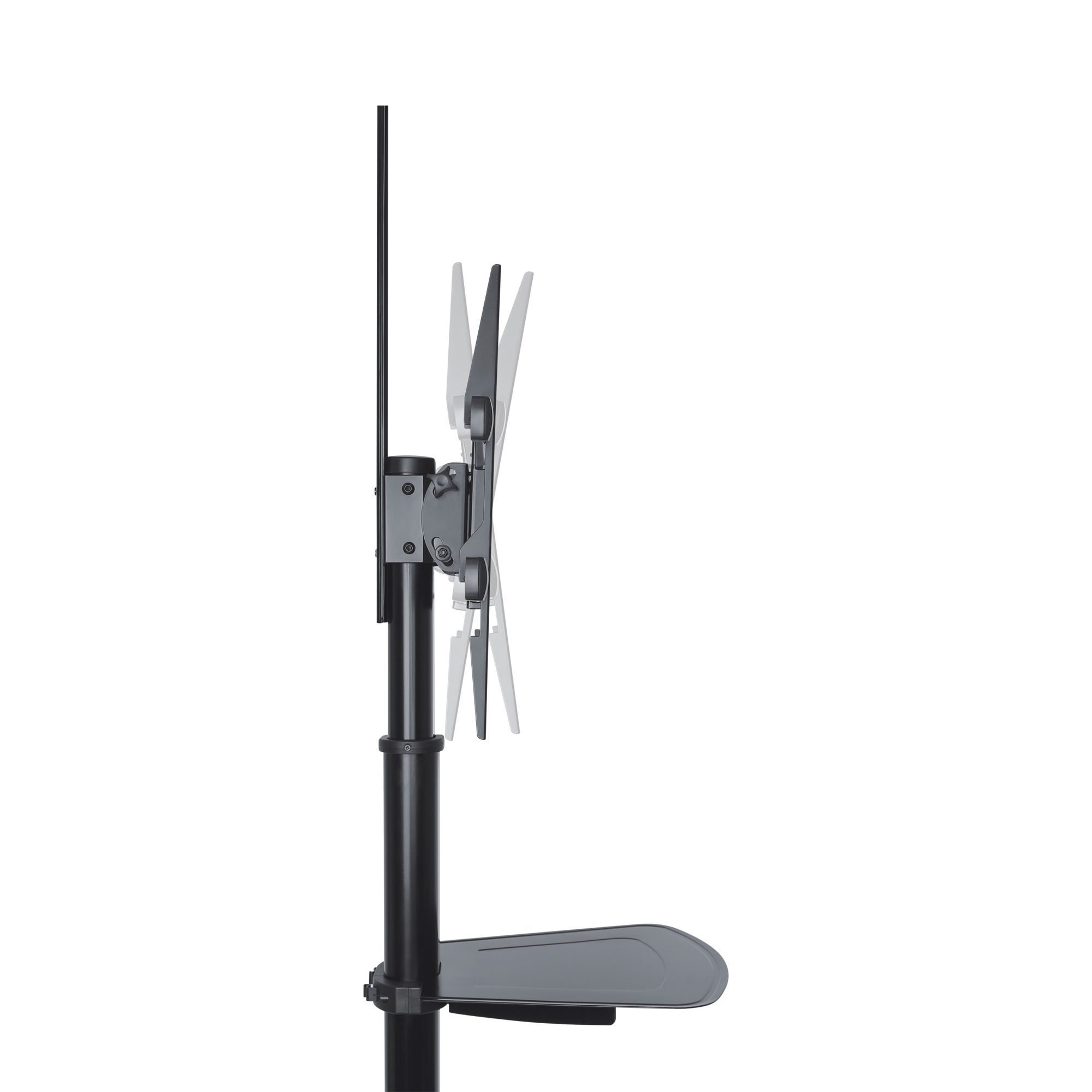

The special feature of this trolley is the 90° rotation / rotation of the supplied television / monitor in one direction (0° to + 90°) with only a few hand movements. Furthermore, the suspension of the TV unit can be tilted from +10° to -10°, so that the appropriate angle of inclination can easily be adjusted, For example, to avoid reflections.
Thanks to its good ground adhesion with lockable rollers, it can also be swiveled 360°.
The height adjustability of the trolley by means of a practical hand crank allows a stepless height adjustment between 1285mm and 1605mm.

Many features
The integrated cable duct at the rear of the trolley ensures a clean and visually appealing cable routing.
The mobility is ensured by four pieces of shock-absorbing rollers on the underside.
This keeps your TV set always mobile and can easily be placed in any room situation.

delivery
The scope of delivery of the roller bearings also includes a storage surface with a max. Load capacity of 5kg (eg for BluRay player, etc.) and a top camera storage area, also with 5kg load capacity.

Available for B2B in the OneAV Webshop:
https://oneav.eu/en/racks-mounts-screens/stands-carts/2555/puremounts-tv-cart-single-display-up-to-70
Features
Zurück
Features
PureMounts DS TV cart with max. load capacity of 50kg incl. camera tray and AV shelf (steel, 5kg) || VESA 200x200 up to 600x400 || Material: Steel / Plastics || Colour: Black
Height adjustment without increments by hand crank between 1285mm and 1605mm | Max. height of 2180mm incl. fully extended camera tray
Integrated cable guide for neat cable management || Shock absorbing wheels
Tilt: +10° up to -10° || Rotation: 0° up to +90° || Swivel: 360° (wheels)
Delivery Content: 1x Cart PM-CART-70CB + 1x Shelf for Peripherals + 1x Tray for Camera
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 21,9
Product 1. Gross Weight in Kg 25,5
Packaging 1. Weight in Kg 2
Product 1. Length in cm 91
Product 1. Width in cm 40
Product 1. Height in cm 20
Packaging 1. Length in cm 117,
Packaging 1. Width in cm 43,9
Packaging 1. Height in cm 21,9
Master Carton Length in cm 117,
Master Carton Width in cm 43,9
Master Carton Height in cm 21,9
Product Information
Europeans Customs Tariff Nr. 94032080000
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 1
Specifications
Zurück
Mounts
Max. VESA 600x400
Recommended display sized (from-to) 32-65" (81-165cm)
Max. load capacity 50kg
Tilting 10° / -10°
Swivel 360°
Rotation 0° / 90°
Height adjustment 1285-1605mm
Material Steel / Plastic
Cable management Yes
Weiteres
further Certificates CE
Colour Black
Warranty 3 Years Manufacturer's Warranty

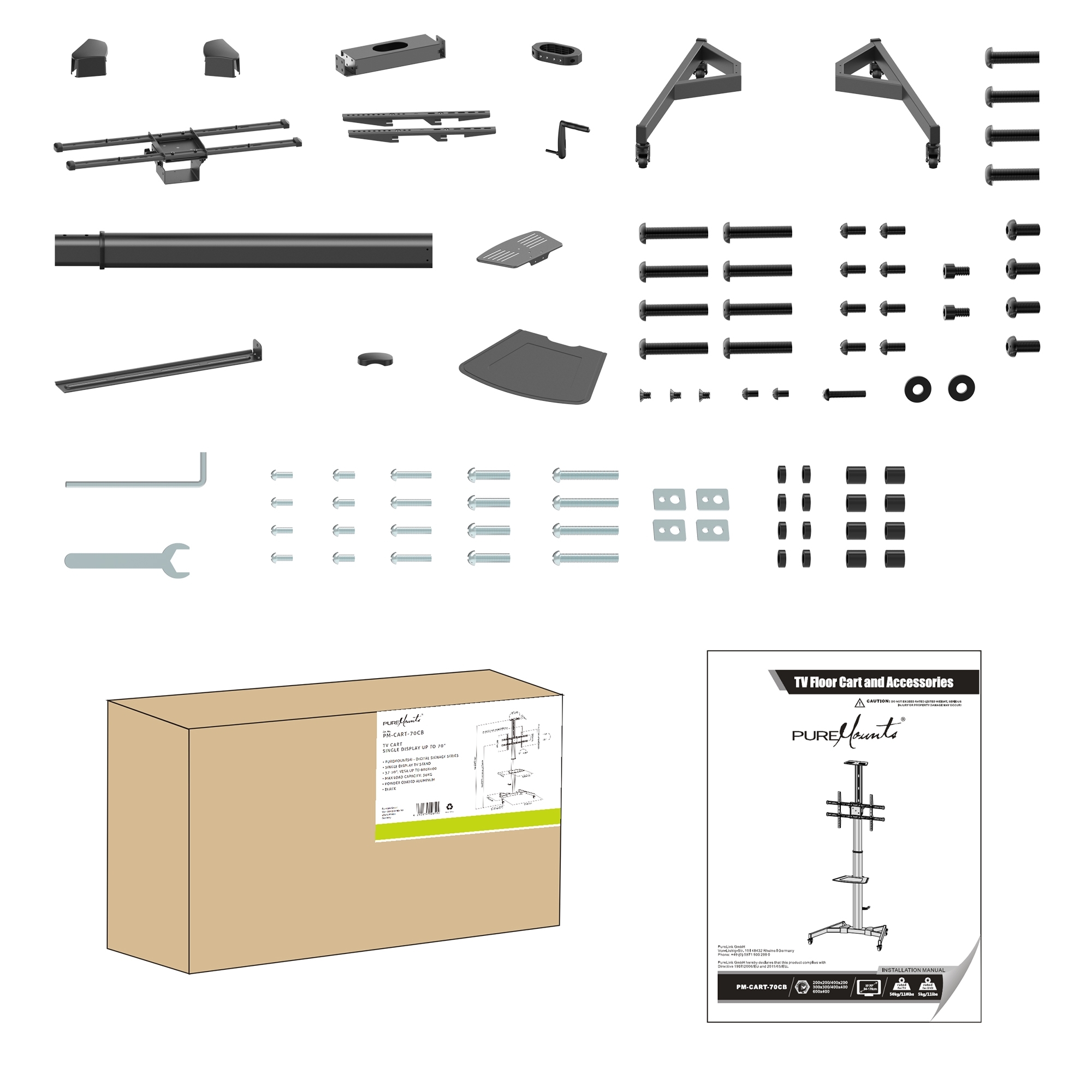

Delivery Content
Zurück
Delivery Content
1x PM-CART-70CB Cart
1x Set of Screws
1x Installation Manual
Dokumente
Zurück
Dokumente "PureMounts® TV Cart - Single Display up to 70""
