PM-BT400

TV Mount - Tilt - VESA 400x400

Preview: PureMounts® TV Halterung - Tilt - VESA 400x400 Preview: PureMounts® TV Halterung - Tilt - VESA 400x400 Preview: PureMounts® TV Halterung - Tilt - VESA 400x400 Preview: PureMounts® TV Halterung - Tilt - VESA 400x400 Preview: PureMounts® TV Halterung - Tilt - VESA 400x400 Preview: PureMounts® TV Halterung - Tilt - VESA 400x400
PureMounts® TV Halterung - Tilt - VESA 400x400
PureMounts® TV Halterung - Tilt - VESA 400x400
PureMounts® TV Halterung - Tilt - VESA 400x400
PureMounts® TV Halterung - Tilt - VESA 400x400
PureMounts® TV Halterung - Tilt - VESA 400x400
PureMounts® TV Halterung - Tilt - VESA 400x400

PureMounts
ONEAV B2B-SHOP
Features
  • Tilt: 0° up to -14°
  • Wall-Distance 35mm
  • Load Capacity 35kg

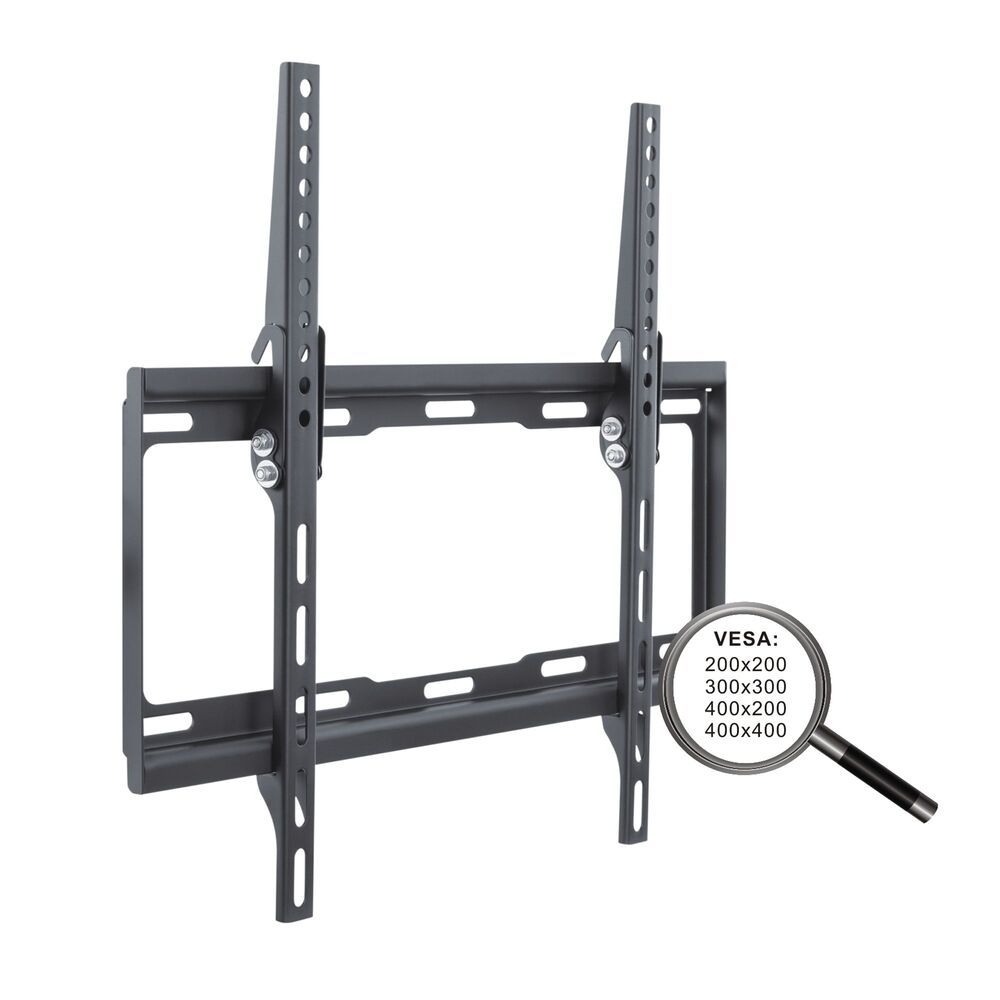

  • Supports VESA 200x200, 300x300, 400x200, 400x400 for displays with a diagonal of 66cm (26") up to 132cm (52")
PureMounts
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
PureMounts® LED/LCD TV Halterung: Tilt -14°, Wall-Distance 35mm, Load Capacity 35kg, VESA 200x200, 300x300, 400x200, 400x400. Supports 26"-52" displays.

PureMounts® LED/LCD TV Mount, Tiltable: 0°/-14°, Wall Distance: 25mm, Load Capacity: 35kg, VESA 200x200, 400x200, 300x300, 400x400
Enhance your viewing experience with the PureMounts® LED/LCD TV Mount. This versatile mount offers a range of features to ensure optimal positioning and stability for your TV.

  • Tilt: Adjust the tilt of your TV from 0° up to -14° to find the perfect viewing angle.

  • Wall Distance: With a wall distance of 25mm, this mount keeps your TV close to the wall for a sleek and space-saving installation.

  • Load Capacity: The mount is designed to support TVs weighing up to 35kg, providing secure and reliable mounting for your TV.

  • VESA Compatibility: The PureMounts® LED/LCD TV Mount supports VESA 200x200, 400x200, 300x300, and 400x400, making it compatible with a wide range of TV models. It is suitable for displays with a diagonal size ranging from 66cm (26") up to 132cm (52").

Many Functions, Fair Conditions
Available at B2B Webshop OneAV:
https://oneav.eu/en/racks-mounts-screens/wall-mounts/tilt/1560/puremounts-tv-mount-tilt-vesa-400x400

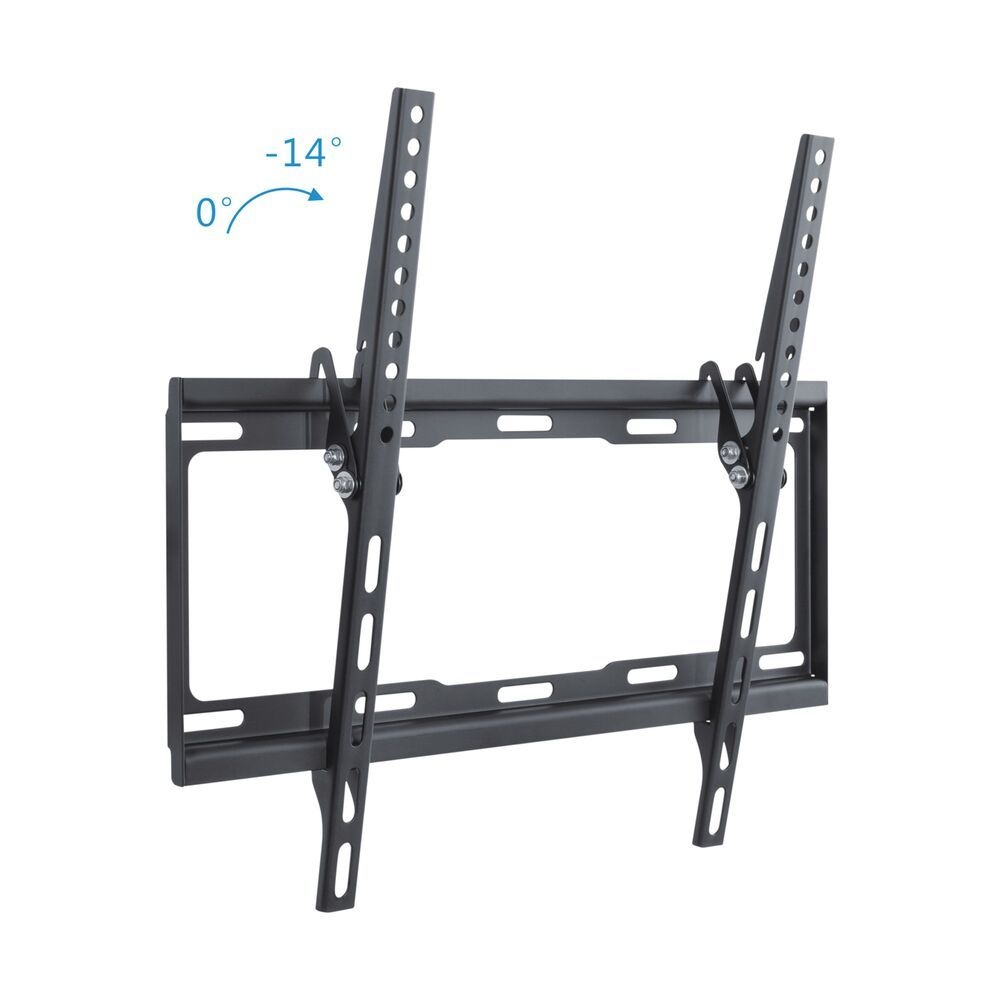

The tiltability from 0 ° to -14 ° can eliminate interfering aperture effects and reflections.

The load capacity of max. 35kg is guaranteed by a high-quality material selection (steel).
This allows the fixtures to fit from 66cm (26 ") to 132cm (52") screen diagonals.

Function and design in perfect combination!
The holder is black. This color combination is ideally suited for use with the mostly black TV sets.

Easy to assemble - everything included!
The installation guide is clear, self explanatory and contains a table of contents.
It is also illustrated with drawings and pictograms.
Scope of delivery: The complete mounting material!

The mentioned compatible display formats are based on experience.
VESA hole size and weight of your TV only determine the compatibility with our wall brackets.
With VESA 200x200, 300x300, 400x200, 400x400 and 35kg load capacity, the mount is universally applicable.
Features
Zurück
Features
Tilt: 0° up to -14°
Wall-Distance 35mm
Load Capacity 35kg
Supports VESA 200x200, 300x300, 400x200, 400x400 for displays with a diagonal of 66cm (26") up to 132cm (52")
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 1,08
Product 1. Gross Weight in Kg 1,24
Product 1. Length in cm 47,9
Product 1. Width in cm 43,5
Product 1. Height in cm 2,5
Packaging 1. Length in cm 48,5
Packaging 1. Width in cm 21,5
Packaging 1. Height in cm 3
Master Carton Length in cm 20
Master Carton Width in cm 23
Master Carton Height in cm 31,5
Product Information
Europeans Customs Tariff Nr. 73269098900
Country of Origin China
Packaging Material Paper
VPE Information
Master Packaging Unit (pcs) 10
Specifications
Zurück
Weiteres
Warranty 3 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content

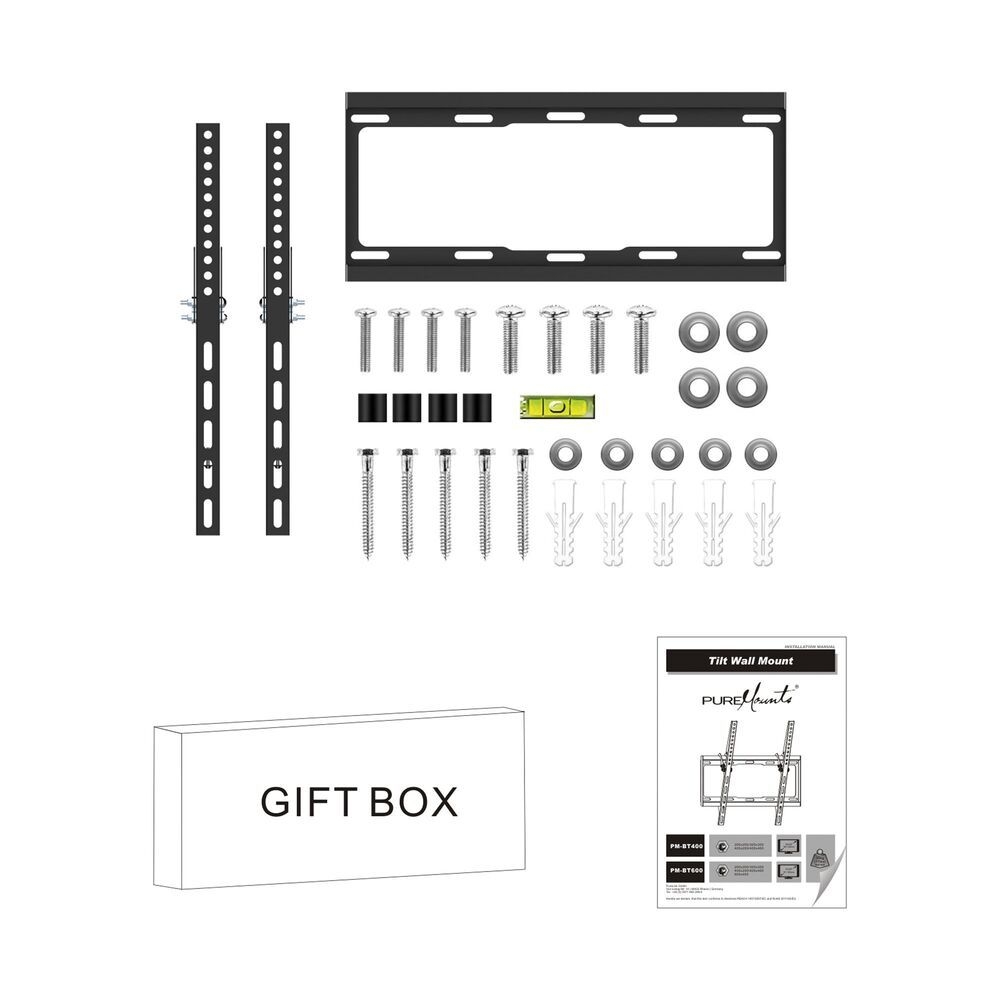

1x PM-BT400 Wall Mount
1x Set of Screws
1x Installation Manual
