PT-C-HDADE

4K 18Gbps HDMI Audio De-Embedder

Preview: PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4) Preview: PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4) Preview: PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4) Preview: PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4)
PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4)
PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4)
PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4)
PureTools - HDMI Audio De-Embedder, 4K (60Hz 4:4:4)

PureTools
ONEAV B2B-SHOP
Features
  • Audio de-embedding from 1 HDMI signal to 1 HDMI and 2 D/A audio outputs
  • Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
  • 3 audio modes: pass-through, bitstream and PCM, formats up to DTS-HD / TrueHD
  • Pass-through for CEC, EDID management for increased AVR compatibility
  • No screen connection required for audio output
PureTools
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
HDMI Audio De-Embedder 4K (60Hz 4:4:4) with HDR
The PT-C-HDADE is an HDMI2.0a audio extractor with a variety of audio extraction ports supporting the full HDMI bandwidth making it ideally suited for home cinema and high end professional installations. 18Gbps video is passed through and audio is extracted from the stream in both digital and analogue formats. The device has the ability to mask the display EDID so that if for instance, the TV does not support Dolby Digital audio, DTS can still be extracted and passed directly to an AVR. This intelligent feature ensures compatibility with any 4K TV or monitor.
Extracts PCM, Dolby Digital, DTS, and DTS-HD regardless of the audio format supported by the display
CINEMA SOUND EXTRACTION
Extracts PCM, Dolby Digital, DTS, and DTS-HD regardless of the audio format supported by the display. Audio is output via balanced Phoenix, stereo RCA or digital COAX making it ideal for pro home cinema.

CEC AND EDID MANAGEMENT
Designed for flawless operation and simple usage. CEC pass through simplified control and EDID management including fixed EDID masking for AVR compatibility ensure impeccable communication between devices.

FULL 18GBPS AND HDR
Compatible with the latest Ultra High Definition sources and displays, displaying signals at resolutions up to 4K @60 4:4:4 (18Gbps) and shows crystal clear HDR media to its best ability.

ULTRA SLIM DESIGN
All of this technology is packed into a slim line enclosure, for installation into furniture or snugly behind the TV.
Features
Zurück
Features
Audio de-embedding from 1 HDMI signal to 1 HDMI and 2 D/A audio outputs
Supports 18Gbps for resolutions up to 4K UltraHD 60Hz
3 audio modes: pass-through, bitstream and PCM, formats up to DTS-HD / TrueHD
Pass-through for CEC, EDID management for increased AVR compatibility
No screen connection required for audio output
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 0,24
Product 1. Gross Weight in Kg 0,50
Product 1. Length in cm 12,9
Product 1. Width in cm 7,7
Product 1. Height in cm 2,15
Packaging 1. Length in cm 19,5
Packaging 1. Width in cm 14,5
Packaging 1. Height in cm 6,5
Master Carton Length in cm 41
Master Carton Width in cm 31
Master Carton Height in cm 38
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 20
Specifications
Zurück

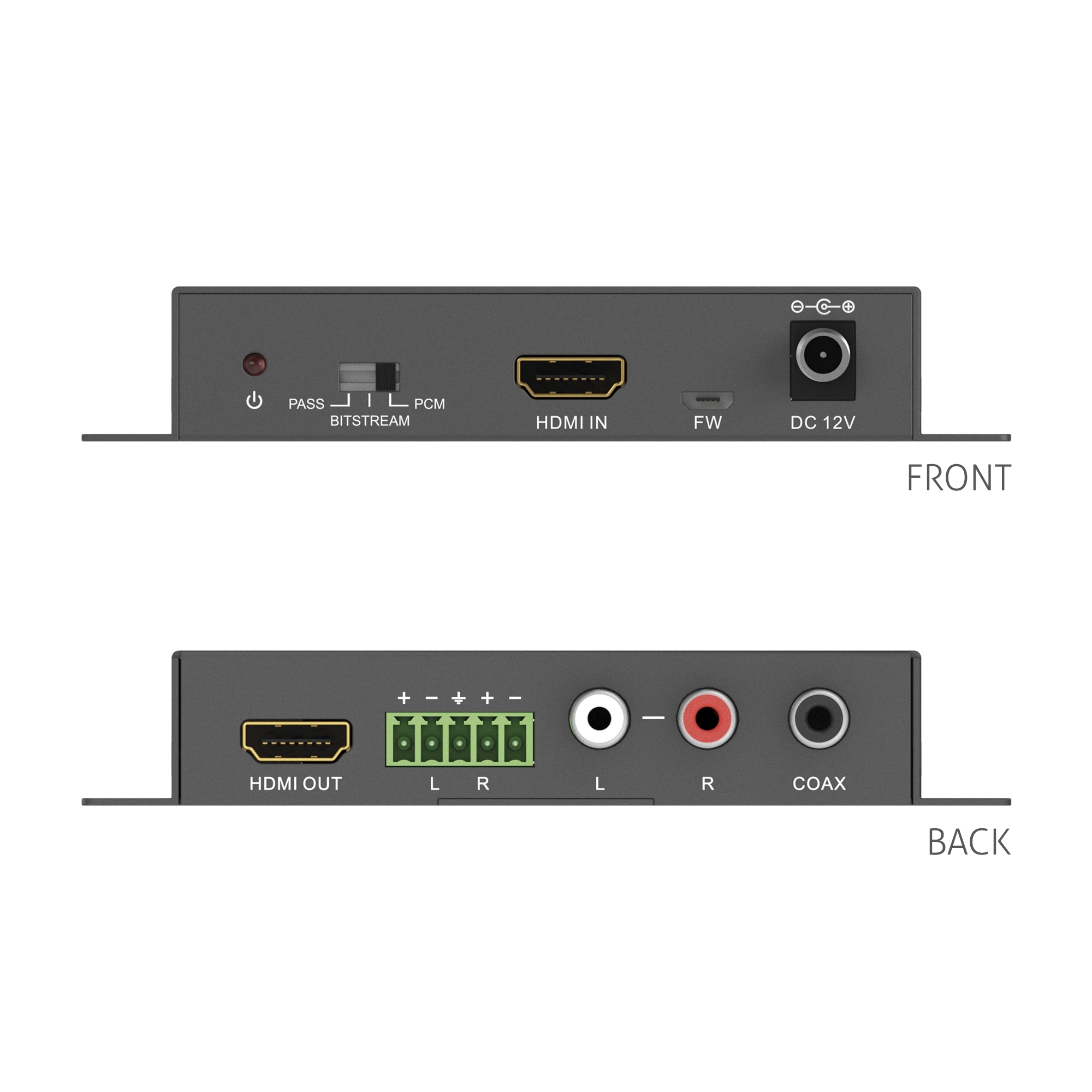

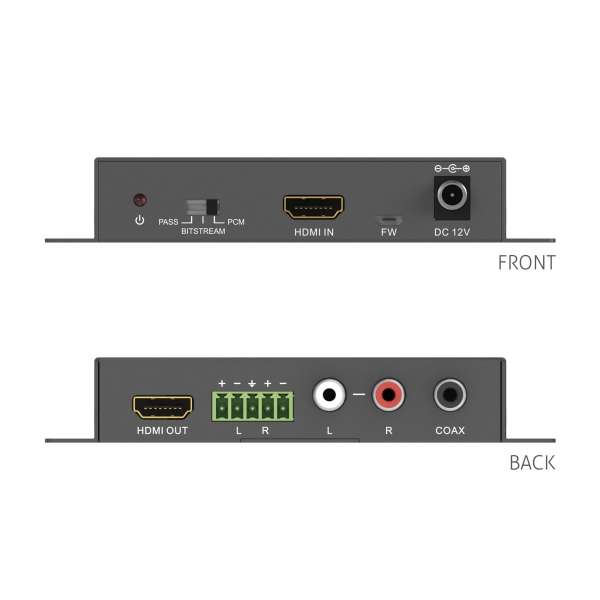

Connections
Input connector(s) 1x HDMI
Output connector(s) 1x HDMI, 1x Digital Audio (RCA), 1x Analog Stereo (L/R RCA), 1x Analog Bal. Stereo (5 pin Phoenix)
Power connector(s) 12VDC 1A
Control connector(s) Control Port 1x FW Port (USB Micro), Button Contro
Mechanical
Power supply 3W max.
Power consumption 12VDC 1A - Locking B
Operating temperature -10° C ~ 55° C
Humidity 10% ~ 90%
Dimensions 129mm x 21.5mm x 77m
Weiteres
Safety CE, FCC
Colour black
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x PT-C-HDADE HDMI 2.0a Audio Extractor
1 x Power Adaptor (12VDC,1A)
4 x Plastic Cushions
1 x 5-pin Phoenix Connector
1 x User Manual
