Features
- HDMI via AOC hybrid fiber over up to 100m for resolutions up to 4K@30 or FullHD / 1080p
- HDMI via AOC hybrid fiber over up to 100m for resolutions up to 4K@30 or FullHD / 1080p
- Different pre-assembled cable lengths available: From 10m to 100m
- All HDMI data is being transferred (hybrid cable of copper and fiber channels)
- AOC Technology - no external power supply needed
AV SIGNAL EXTENSION VIA FIBER / COPPER HYBRID

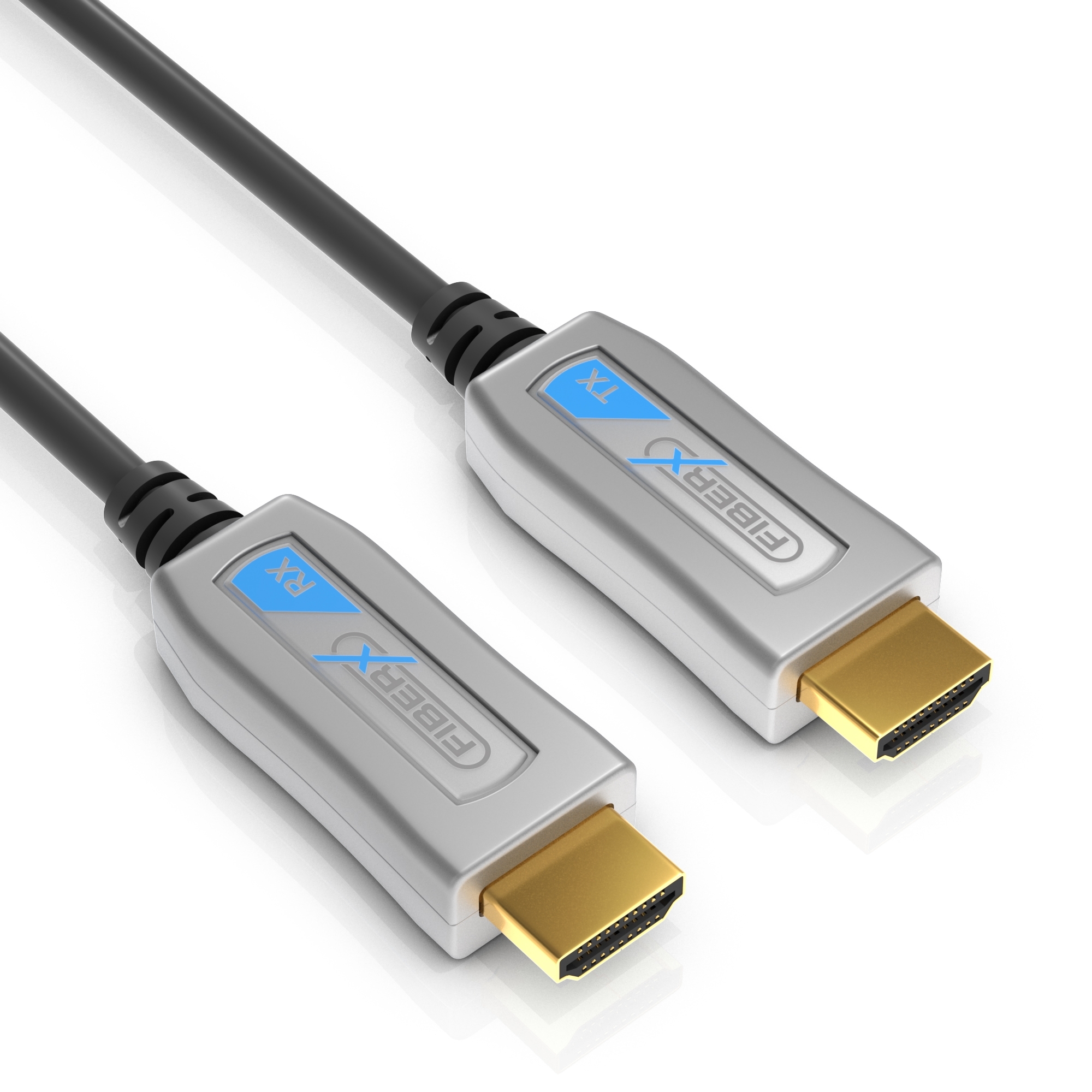

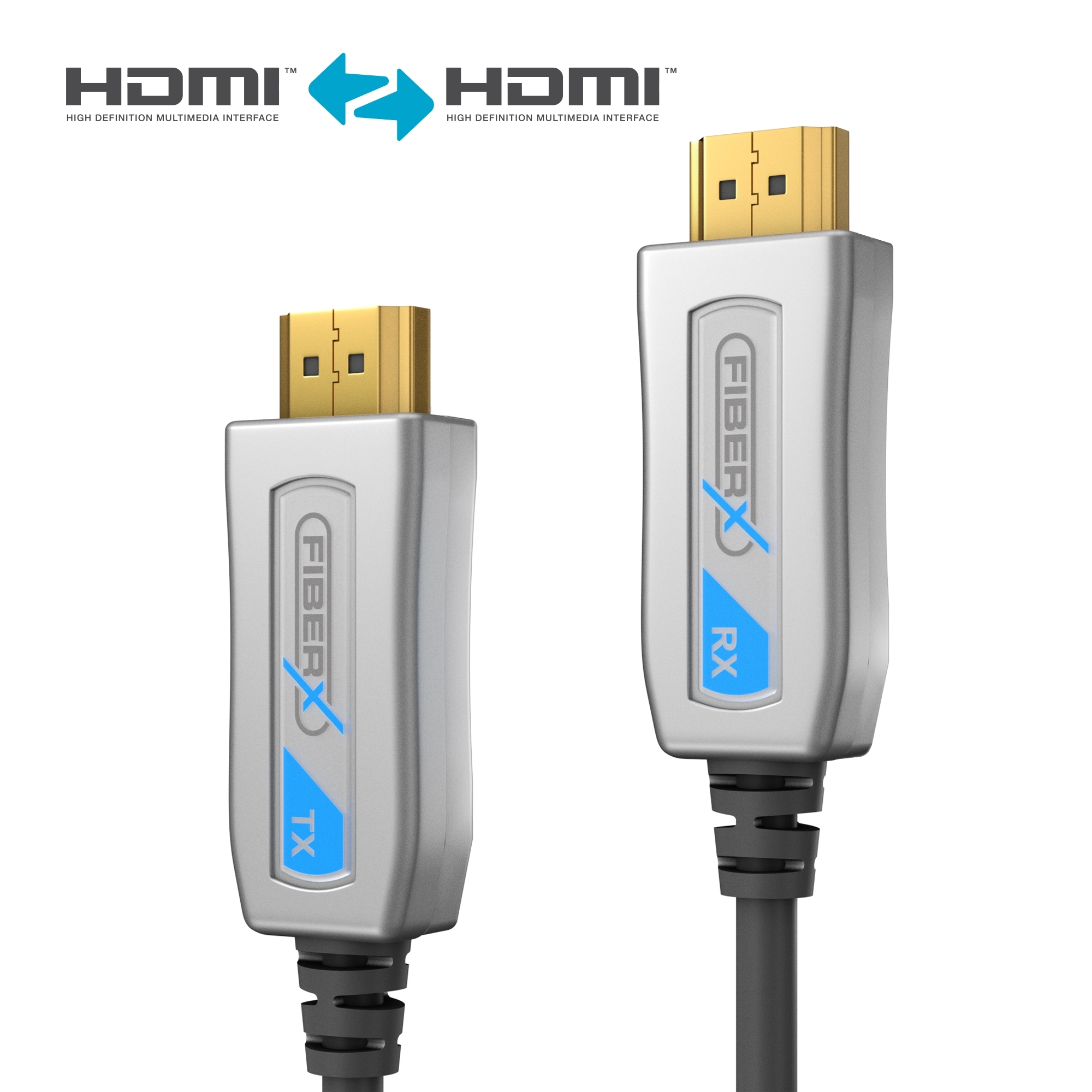

This HDMI AOC cable provides full 4K HDMI signal transmission up to 100 meters including all HDMI data, using a hybrid fiber / copper implementation! With the "integrated" fiber-optic HDMI cable FX-I330, included in our FiberX series, loss-free and uncompressed transmission for UltraHD / 4K signals with 30Hz is possible in up to 100 meters. The highlight of this cable is the hybrid structure of fiberglass and copper conductors. This is the first available technical solution with full HDCP / EDID / CEC / 5V support. The "integrated" variants also transmit a digital audio signal thanks to the latest chipset. The cables are available in fixed lengths from 10 meters to 100 meters.
FiberX AOC Cables Combine the Best of Copper and Fiber Technologies

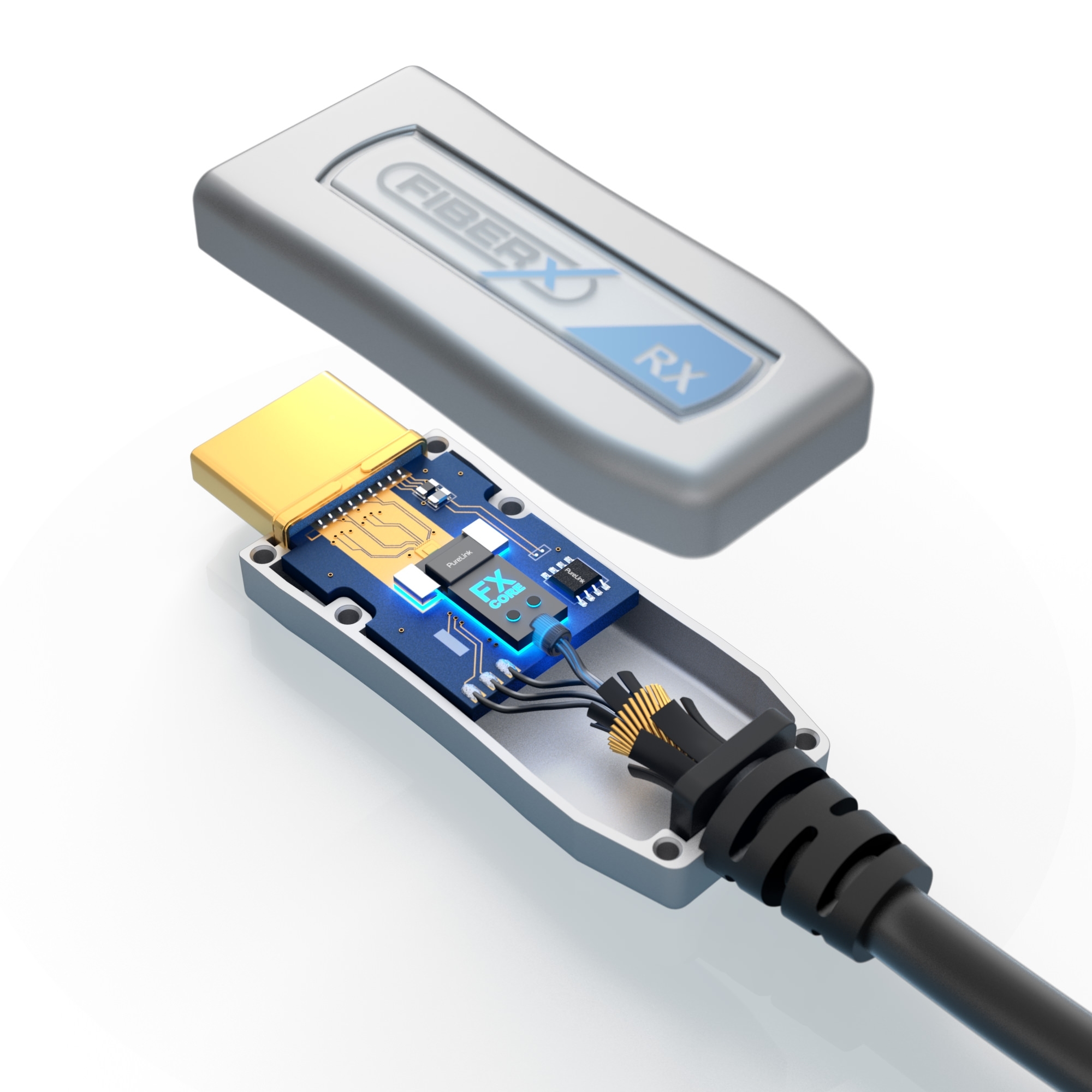

The products included in the FiberX Series are the ideal solution for transmitting video and audio signals over long distances, using a hybrid fiber connection. The FX-I330 AOC hybrid cable is made of copper and fiber conductors and thus allows full 2160p @30Hz / 1080p @60Hz transmission over up to 100m. The latest technology Due to the use of hybrid technology, all HDMI data (e.g. EDID, HDCP, CEC, etc.) can be transmitted from the transmitter to the receiver for the first time. This also includes the 5V line of a conventional HDMI connection, which unfortunately can not be transmitted with pure glass fiber connections. All products in the series are 3D-capable and provide the full support of HDCP and "Real Pass through EDID" in real-time, which makes EDID learning unnecessary. The built-in chipsets are also equipped with a reclocking function and also support digital audio. Pre-assembled lengths The FX-I330 series is available in the lengths of 10m up to remarkable 100m, each with pre-assembled HDMI connectors on both sides. Please note The cable must not be connected to the wrong port - the ends are clearly marked. The successful connection to an HDMI adapter can not be guaranteed. For professional applications and installations All FiberX products are manufactured exclusively in state-of-the-art manufacturing facilities and are 100% tested before shipment. During the manufacturing process, the products undergo more than ten quality tests, making them the most reliable choice on the market.
Features |
HDMI via AOC hybrid fiber over up to 100m for resolutions up to 4K@30 or FullHD / 1080p |
HDMI via AOC hybrid fiber over up to 100m for resolutions up to 4K@30 or FullHD / 1080p |
Different pre-assembled cable lengths available: From 10m to 100m |
All HDMI data is being transferred (hybrid cable of copper and fiber channels) |
AOC Technology - no external power supply needed |
Logistics Information | |
Product 1. Net Weight in Kg | 3,58 |
Product 1. Gross Weight in Kg | 4,22 |
Packaging 1. Weight in Kg | 1 |
Product 1. Length in cm | 35 |
Product 1. Width in cm | 35 |
Product 1. Height in cm | 9 |
Packaging 1. Length in cm | 3,88 |
Packaging 1. Width in cm | 3,65 |
Packaging 1. Height in cm | 1,13 |
Product Information | |
Europeans Customs Tariff Nr. | 85176990000 |
Country of Origin | China |
Packaging Material | Paper |
VPE Information | |
Master Packaging Unit (pcs) | 1 |
Connections | |
Connector material | Metal |
Contact material | gold-plated, long-life design |
Shielding | Yes |
Connector 1 | HDMI-A male (19pin) |
Connector 2 | HDMI-A male (19pin) |
Dimensions Con.1 | 20,4 x 65,3 x 11,0 mm |
Dimensions Con.2 | 20,4 x 65,3 x 11,0 mm |
Contacts | gold-plated, long-life design |
Electric signal | |
Standards | Integrated Hybrid Fiber AOC |
Digital video formats | HDMI 4K / UltraHD / 2160p @30Hz |
Digital audio formats | Digital audio support, formats device dependant |
HDCP | Yes |
CEC | Yes |
EDID | Yes |
Cable | |
Type | Round, HDMI AOC |
Lenght | 100,0m |
Inner conductor material | Fiber, Copper |
AWG | AWG28 / OM2 - OM3 |
Number of shieldings | 3 |
Shielding 1 | Twisted copper conductors: Polyethylen |
Shielding 3 | Aluminium Mylar |
Outer material | Flame-retardant PVC |
Outer diameter | 4.2 mm |
Mechanical | |
Power supply | Power over HDMI |
Operating temperature | 0°C - 75°C |
Storage temperature | -20°C - 70°C |
Humidity | 10% - 85% |
Enclosure | Metal / Plastics |
Signal transmission | |
Supported standards | HDCP 2.2, High Speed HDMI (no HEAC), Fiber |
Transmission modes | Digital Audio- and video signals |
Supported Colors | 16/24 bit RGB/YUV, Deep Color, x.v.Color™ |
Supported audio standards | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, SD Audio, etc. |
Maximum resolution | 2160p / UltraHD / 4K @30Hz at max. 100m |
Further standards | Fiber / Copper Hybrid AOC |
Weiteres | |
Safety | CE, FCC |
EMI / EMC | 100% free of EMI |
Colour | black / grey |
Warranty | 3 Years Manufacturer's Warranty |
Delivery Content |
1x FX-I330 AOC HDMI via Hybrid Fiber-Cable 100,0m |
1x User Manual |
Dokumente "FiberX Series - Active HDMI 4K Fiber Extender Cable Integrated - 100m"
