4K Premium High Speed HDMI Multi Mode Fiber Optic Extender Set, ULS™

The products included in the FiberX Series are ideal to transmit audio- and video-signals via glass fiber over great distances. Limitations of hybrid-systems are being prevented.

The Latest Technology

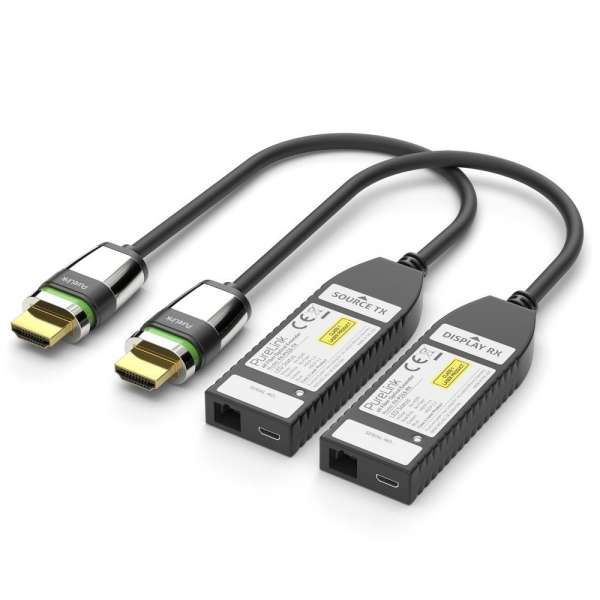

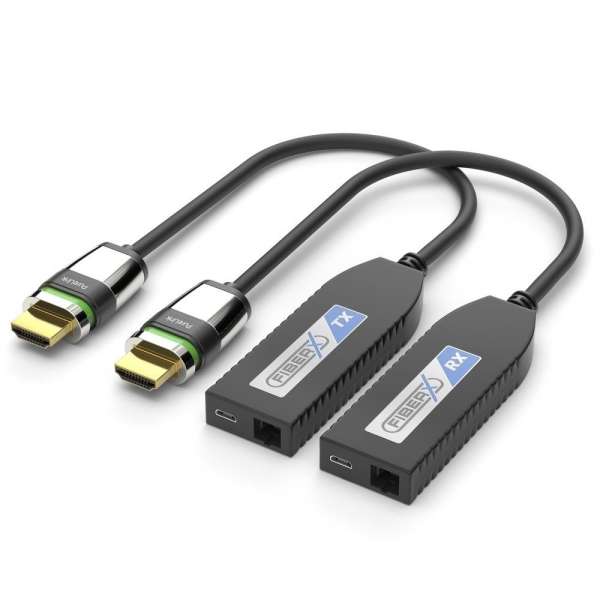

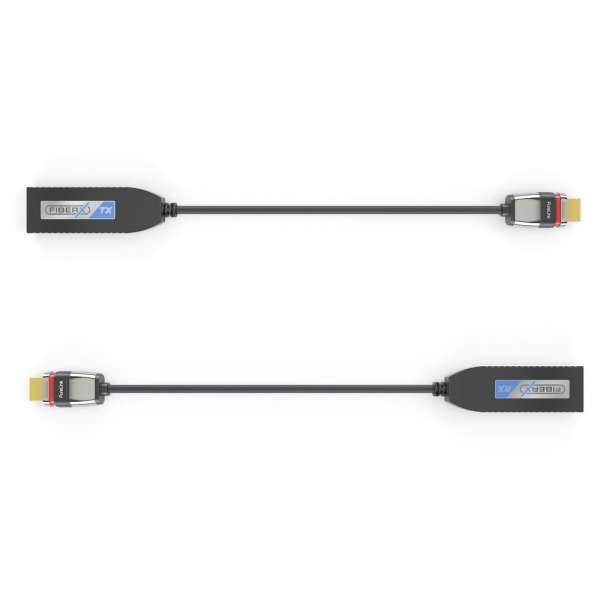

The detachable HDMI Pigtail-Extender offers some advantages over conventional solutions and is designed for HDMI. Resolutions up to UltraHD / 2160p / 4K @60Hz are supported over distances up to 1,000 meters. Another special feature is the reclocking properties of the integrated chipsets. Due to the jitter-reducing circuits, they also work with sources that have strong EMI emissions.

Patented Ultra-Lock-System™

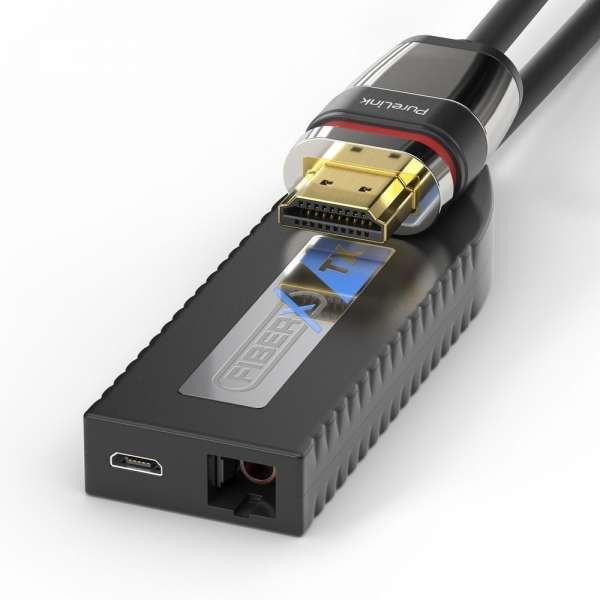

ULS™ technology has been developed specifically for the uninterrupted and secure use of HDMI connections. The innovative design locks the connector securely into the socket and is unique on the market. The safety lock can be used universally with any HDMI socket and can be easily switched between the locked and unlocked positions by using a 360° locking switch.

Fast and Practical
The perfect fiber cable for this extender is FX-SC! The FiberX FX-SC fiber cables are detachable single handedly. Therefore, transmitters and receivers can be replaced without having to re-lay the cable. Their compact shape makes them a perfect fit for places without much space and an ideal solution for permanent installations. The extremely small diameter of of the FiberX cables allow for the installation of many glass fiber cables within one system. They are shielded with Kevlar and PVC to ensure top quality even over greater distances. A small bending radius of ca. 4.5 cm is great for installations in small and hard to reach spaces. The cables are also free of halogens, fire retardant and offer protection from humidity.

Please Note
Glass fiber cables are very sensitive - the plugs tip should not be touched if possible. A separate power supply of the receiver is necessary, in some cases, the transmitter needs additional power supply.


Different transmission distances with different fiber types:
OM2OM3OM3OM3OM4OM4OM4500 MHz1250 MHz2000 MHz2750 MHz3000 MHz4000 MHz6000 MHz1080p, 12bit (~6.75Gbps)520m1.260m1.940m2.210m2.270m2.430m2.580m4K@30Hz, 4:4:4 , (~9Gbps)320m800m1.230m1.610m1.730m1.890m2.030m4K@60Hz, 4:4:4, (~18Gbps)150m380m580m760m820m1.000m1.220m

For Professional Purposes and Installations
All FiberX products are manufactured in only the most modern production facilities and are tested a 100% before shipping. During the manufacturing process, the products undergo over ten quality tests, making them the most reliable choice on the market.
