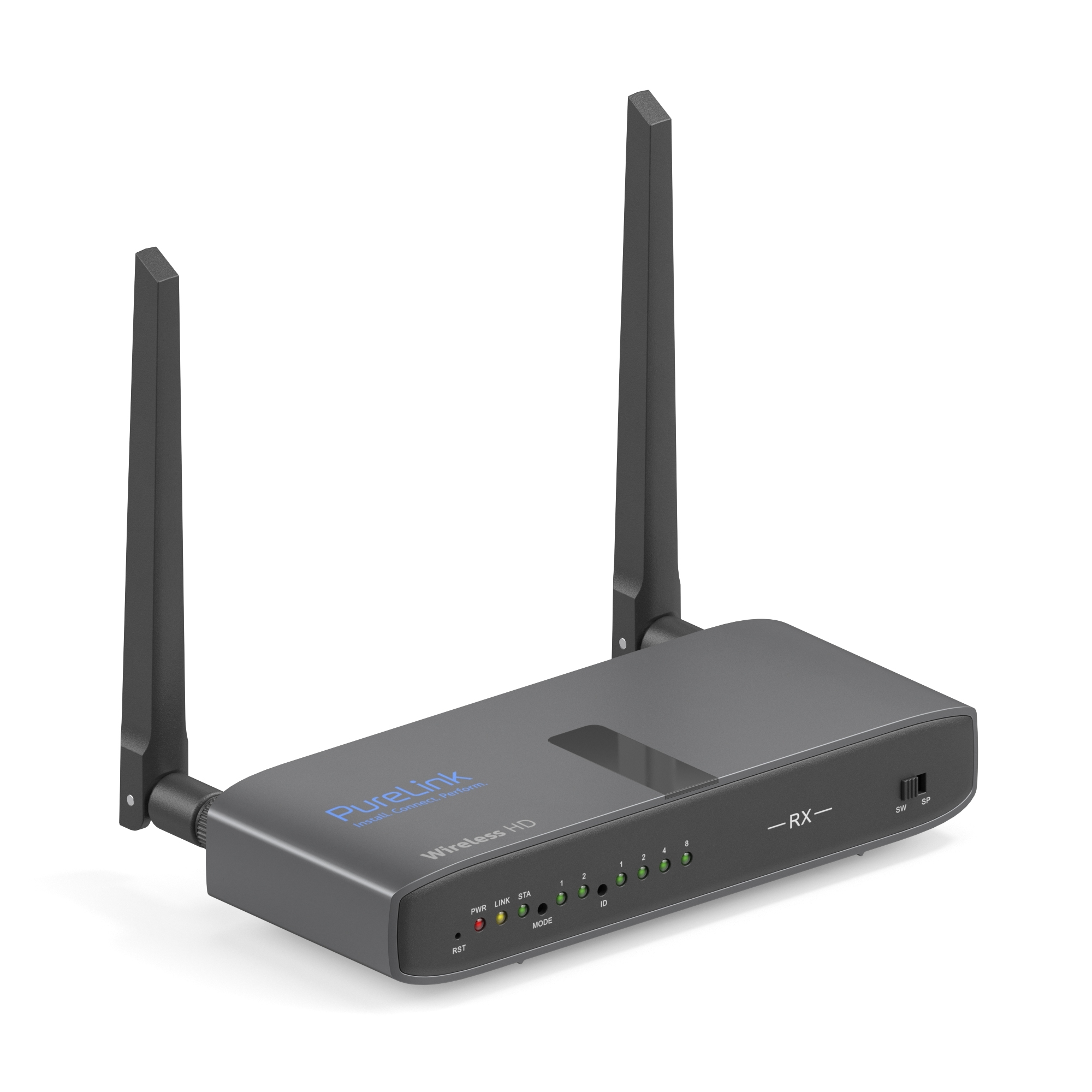

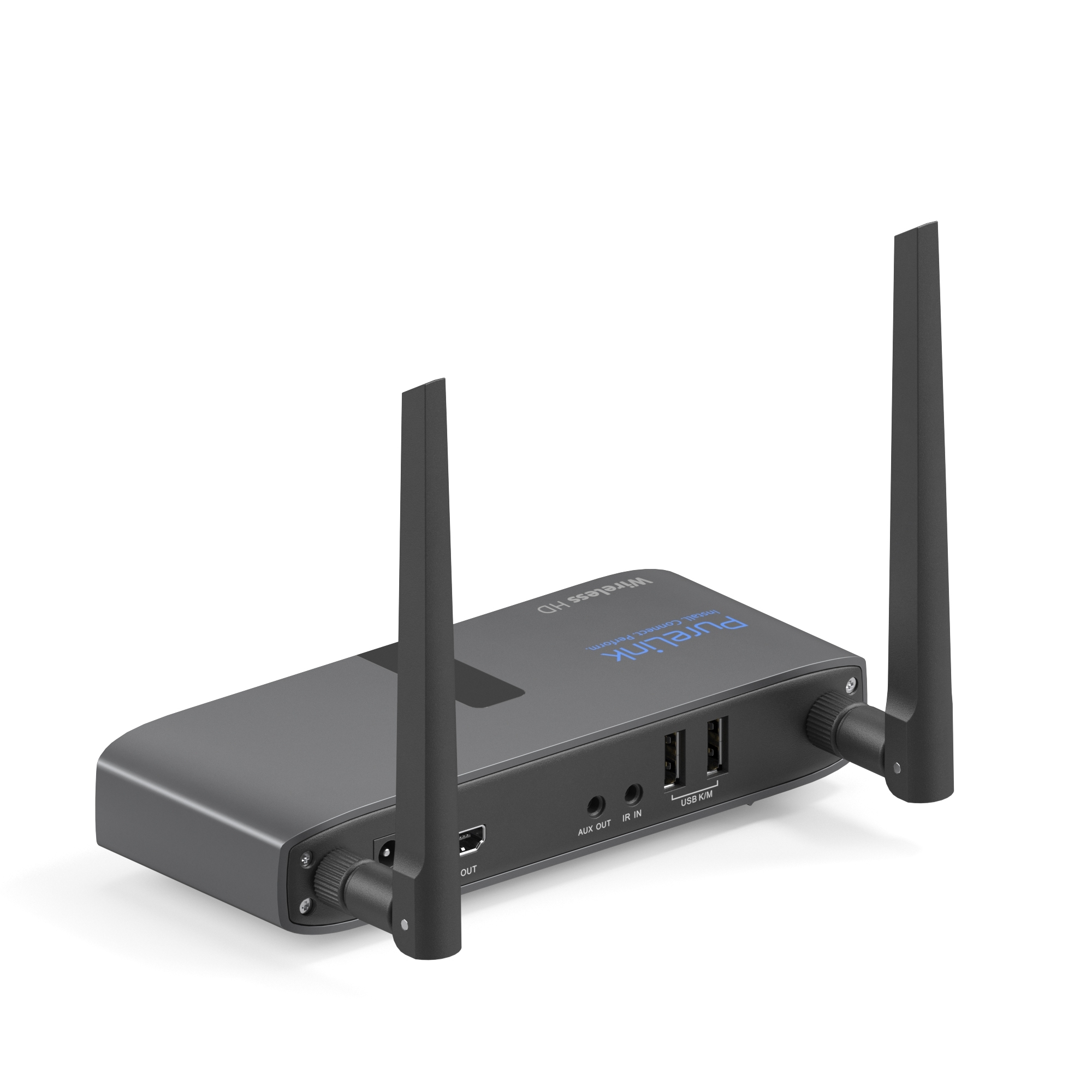

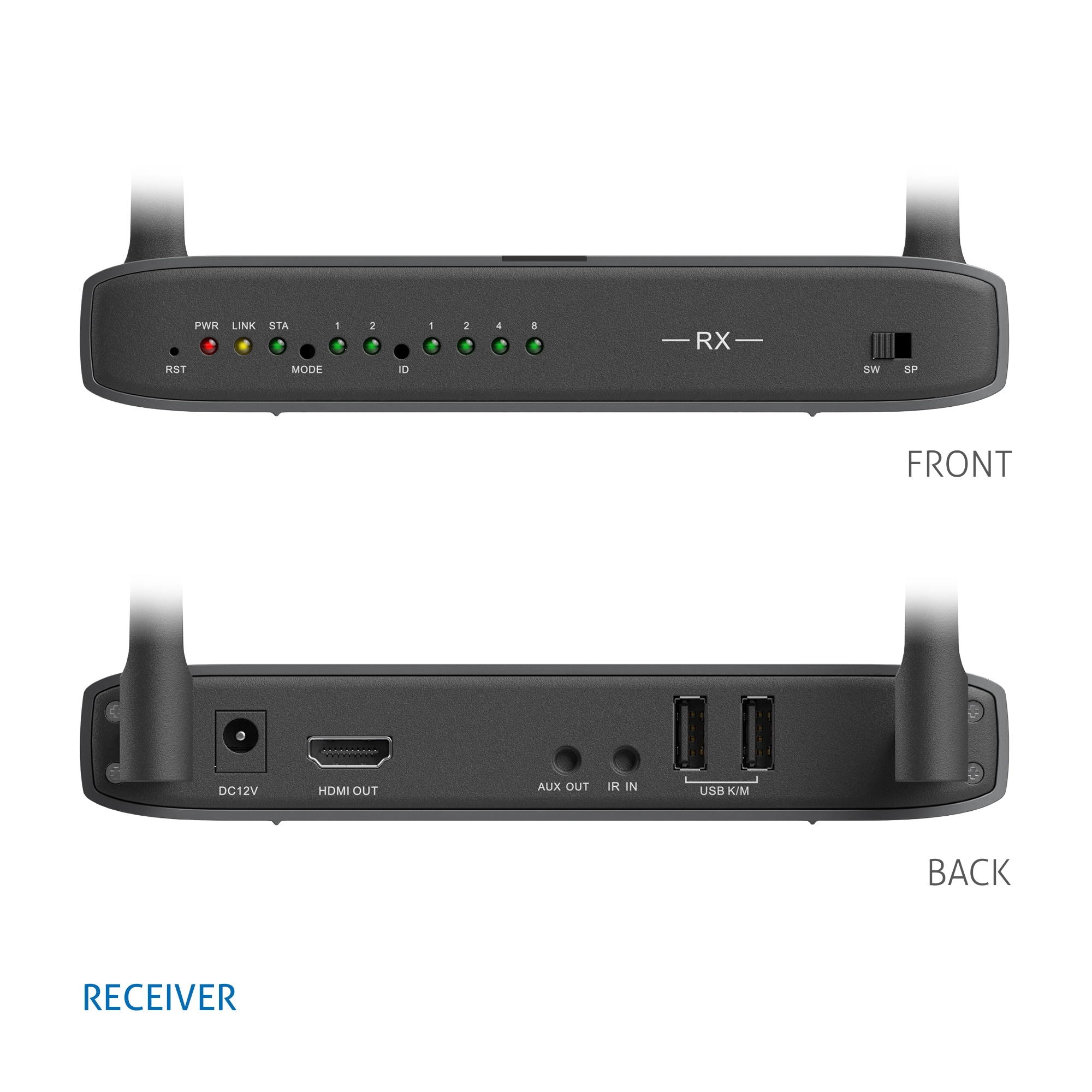

CSW320-RX

Wireless KVM Extender Receiver, 100m

Features
  • Wireless 1080p Receiver – Transmission distance: 100m in line of sight (LOS)
  • 5Ghz band for up to 1080p@60Hz and USB 2.0 data
  • Switch/Splitter function for maximum device flexibility
  • <300ms latency for fluid HID control
  • Audio extraction and up to 2x USB 2.0 HID
Cinema Series Wireless KVM Receiver, 100m
The CSW320-RX is the ideal addition to your CSW320 extender pair when you want to show an additioanl screen output for your home or office application. Unlike other wireless extension systems that only send HDMI video, the CSW320 is able to provide full HD video and send control signals for HID devices, such as mouse keyboard or touch screens. The CSW320 is ideal for Home Theatre applications, cross-room HDMI wireless, meeting rooms, or game room applications. CSW320 also includes an IR and USB extending control function, providing easy remote control extension via the IR and USB pass-through function, allowing control of your Set Top Box, Blu-ray player, other streaming players, PCs or Laptops. Multiple receivers or transmitters can also be integrated into your system for remote source switching or multiple screen applications.
Wireless Full HD and USB2.0 Data Signal Transmission up to 100 meters
PureLink Cinema Series Wireless HD and USB Extender Reciver with less than 300ms seconds of delay provides full video and USB data KVM extension for connected devices. The IR extender control function, allows the source device to recognize remote commands from a remote location as well as a loop-through HDMI output on the transmitter to connect a local display.Fully HDCP compliant room to room low power HDMI/USB wireless transmission. Add additional transmitters for switching function or additional receivers for splitter function - check manual for full details
Features
Wireless 1080p Receiver – Transmission distance: 100m in line of sight (LOS)
5Ghz band for up to 1080p@60Hz and USB 2.0 data
Switch/Splitter function for maximum device flexibility
<300ms latency for fluid HID control
Audio extraction and up to 2x USB 2.0 HID

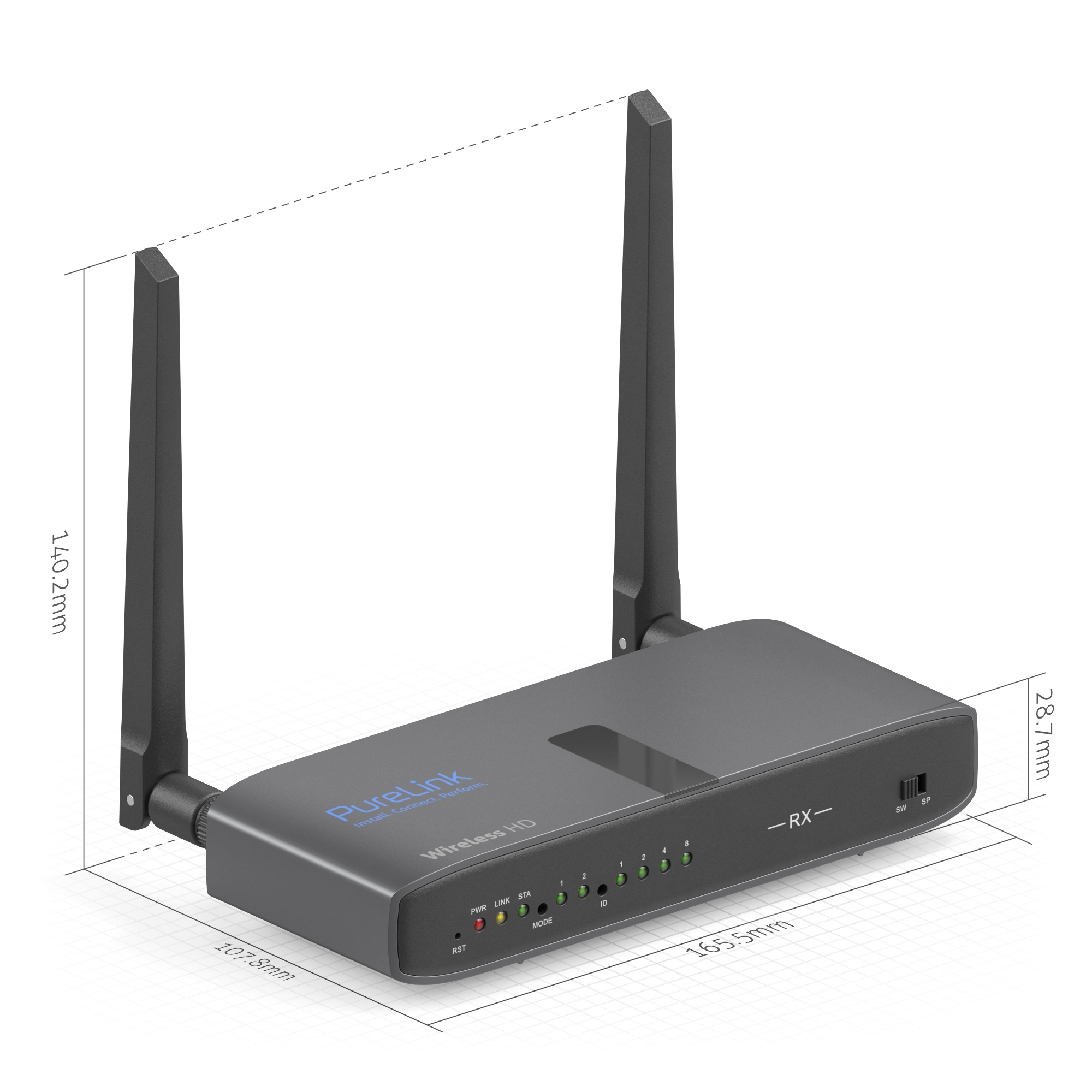

Logistics Information
Product 1. Net Weight in Kg 0,29
Product 1. Gross Weight in Kg 0,46
Product 1. Length in cm 16,5
Product 1. Width in cm 6,8
Product 1. Height in cm 3
Packaging 1. Length in cm 24
Packaging 1. Width in cm 9
Packaging 1. Height in cm 6
Master Carton Length in cm 31
Master Carton Width in cm 20
Master Carton Height in cm 26
Product Information
Europeans Customs Tariff Nr. 85176200000
Country of Origin Taiwan
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 10
Dokumente "Wireless KVM Extender Receiver, 100m"
