PT-SP-HD116DA

1x16 4K 18Gbps HDMI Splitter with Scaler and Audio De-Embedding

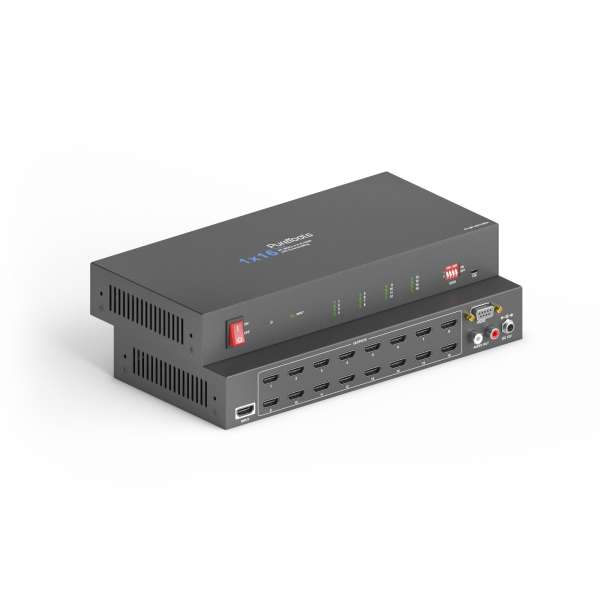

PureTools - HDMI Splitter 1x16, 4K (60Hz 4:4:4), Down-Scaling, Audio und EDID Management
PureTools
ONEAV B2B-SHOP
Features
  • Distributes 1 HDMI signals to up to 16 HDMI outputs
  • Supports HDMI 2.0 with 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Incl. 4K to 1080p downscaler and signal repeater for longer HDMI runs
  • EDID management, 6-fold cascading
  • Audio de-embedding analog stereo (L/R RCA)
PureTools
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
1x16 4K 18Gbps HDMI Splitter with Downscaler and Audio De-Embedding
The PT-SP-HD116DA 1x16 HDMI 2.0 splitter distributes one HDMI input to sixteen HDMI outputs. The splitter supports resolutions up to UltraHD 4K 60Hz (4:4:4) incl. HDR 10 and Dolby Vision. It features an advanced EDID management option using the 4-pin DIP switch on the front panel of the unit. It also supports downscaling, so a 4K video input can automatically be downscaled to a 1080p output when connecting a 1080p display. A stereo analog audio output is provided for audio de-embedding from HDMI. The splitter supports control options via CEC and RS232.
The PureTools Series - High Quality AV Products for Commercial Applications
- 1x16 HDMI 2.0 Splitter with 1 HDMI input and 16 HDMI outputs
- 18Gbps UltraHD 4K 60Hz (4:4:4) incl. HDR10 and Dolby Vision
- HDCP 2.2 compliant
- AOC cable support - each port delivers up to 5V/100mA
- Auto 4K to 1080p downscaling
- Stereo analog audio de-embedding from HDMI
- Smart HDCP management
- Smart EDID EDID management via DIP switch
- RS232 and CEC control
Features
Zurück
Features
Distributes 1 HDMI signals to up to 16 HDMI outputs
Supports HDMI 2.0 with 18Gbps for resolutions up to 4K UltraHD 60Hz
Incl. 4K to 1080p downscaler and signal repeater for longer HDMI runs
EDID management, 6-fold cascading
Audio de-embedding analog stereo (L/R RCA)
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 1,26
Product 1. Gross Weight in Kg 1,42
Product 1. Length in cm 27
Product 1. Width in cm 13
Product 1. Height in cm 4,5
Packaging 1. Length in cm 31,5
Packaging 1. Width in cm 24,5
Packaging 1. Height in cm 8
Master Carton Length in cm 41
Master Carton Width in cm 31
Master Carton Height in cm 38
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 5
Specifications
Zurück
Connections
Input connector(s) 1x HDMI, 1x RS232 (9 pin D-Type)
Output connector(s) 16x HDMI, 1x Analog Stereo (2x L/R RCA)
Weiteres
Colour black
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x 1x16 4K Splitter
1x RS232 cable (D-Dub 9-pin)
2x Mounting ears, 4x Screws, 4x Plastic cushions
1x Power Adaptor (24V DC 1.25A)
1x User Manual
Dokumente
Zurück
Dokumente "1x16 4K 18Gbps HDMI Splitter with Scaler and Audio De-Embedding"
