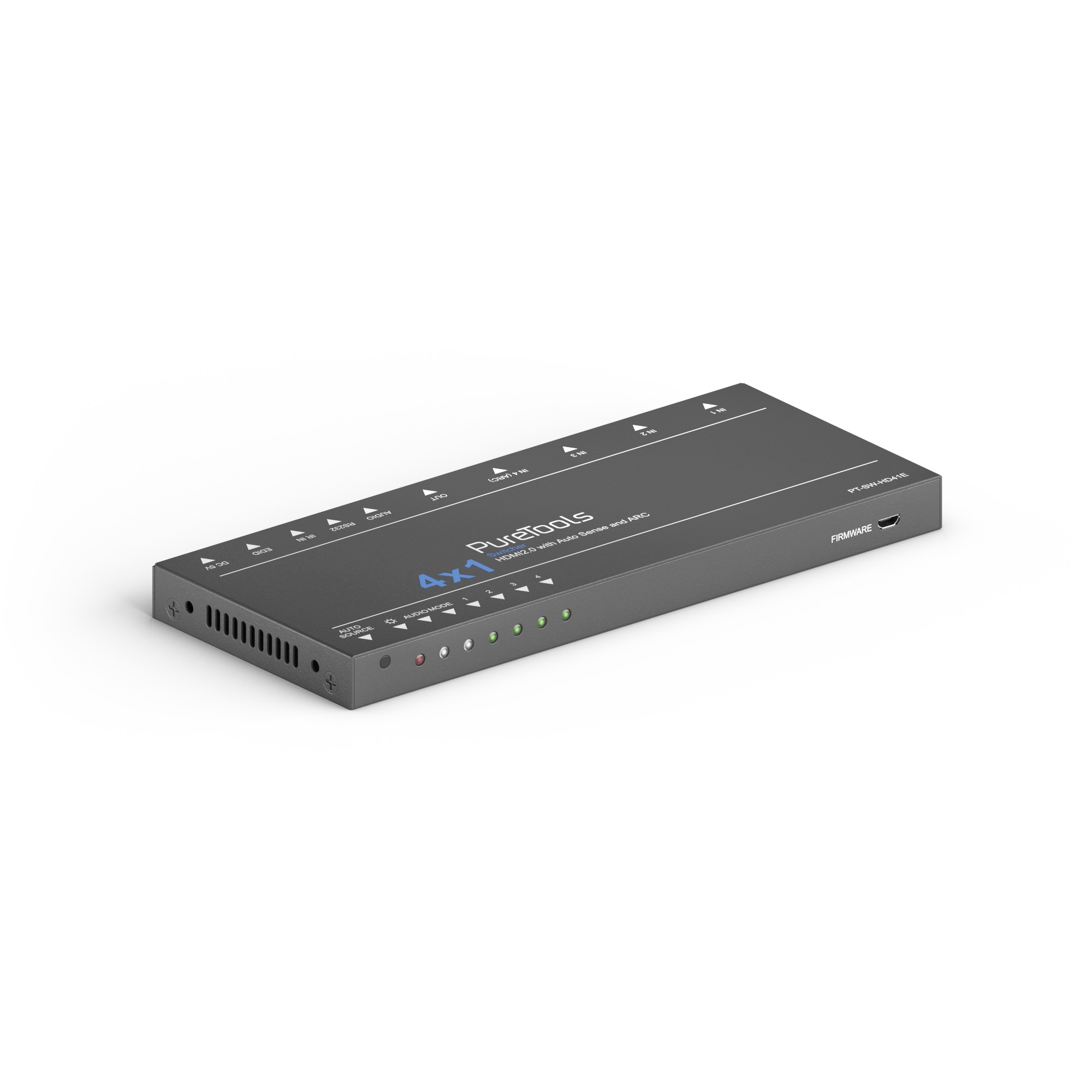

PT-SW-HD41E

4x1 4K 18Gbps HDMI Switcher with TMDS Switching and ARC

Preview: PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management Preview: PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management Preview: PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management Preview: PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management
PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management
PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management
PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management
PureTools - 4x1 HDMI Switcher 4K (60Hz 4:4:4), Audio-De-Embedding, ARC, IR, TMDS Auto-Switching, RS232- und EDID-Management

PureTools
ONEAV B2B-SHOP
Features
  • Switching of 4 HDMI signals to 1 HDMI output
  • Supports HDMI 2.0 with 18Gbps for resolutions up to 4K UltraHD 60Hz
  • Auto Sense: HDMI 5V (HPD) or active video stream (TMDS switching)
  • DIP switch for EDID mode, RS232 and IR control, stereo audio de-embedding
  • Supports CEC commands, ARC functions, EDID management
PureTools
ONEAV B2B-SHOP
Description Features Logistics Specifications Delivery Content Dokumente
Description
Zurück
4x1 4K 18Gbps HDMI Switcher with TMDS Auto Sense and ARC
High-grade elctronic products for commercial applications
The PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.
The PureTools Series - High Quality AV Products for Commercial Applications
Features:
- 4 switchable HDMI-A inputs to 1 HDMI-A output incl. audio de-embedding (3.5mm stereo)
- Input and output resolutions up to 4K@60Hz, 4:4:4 incl. HDR with full 18Gbps and HDCP 2.2 compatibility
- Two special "Auto Sense" modes: Either detects the HDMI 5V line (HPD) or detects an active video stream (TMDS sensing)
- EDID DIP switches as well as 3.5mm inputs for RS232 and IR control signals
- Also supports CEC commands, FW updates via USB and ARC functions
- New firmware with new RS232 functions: HDMI Status Monitor (HDMI connected / disconnected for each port) and new RS232 command "SYSInfo" to query the HDMI status on each port
Features
Zurück
Features
Switching of 4 HDMI signals to 1 HDMI output
Supports HDMI 2.0 with 18Gbps for resolutions up to 4K UltraHD 60Hz
Auto Sense: HDMI 5V (HPD) or active video stream (TMDS switching)
DIP switch for EDID mode, RS232 and IR control, stereo audio de-embedding
Supports CEC commands, ARC functions, EDID management
Logistics
Zurück
Logistics Information
Product 1. Net Weight in Kg 0,32
Product 1. Gross Weight in Kg 0,73
Product 1. Length in cm 19,4
Product 1. Width in cm 8,1
Product 1. Height in cm 1,5
Packaging 1. Length in cm 24,8
Packaging 1. Width in cm 13,9
Packaging 1. Height in cm 4,8
Master Carton Length in cm 41
Master Carton Width in cm 31
Master Carton Height in cm 28
Product Information
Europeans Customs Tariff Nr. 85437090990
Country of Origin China
Packaging Material Plastic/Paper
VPE Information
Master Packaging Unit (pcs) 6
Specifications
Zurück
Connections

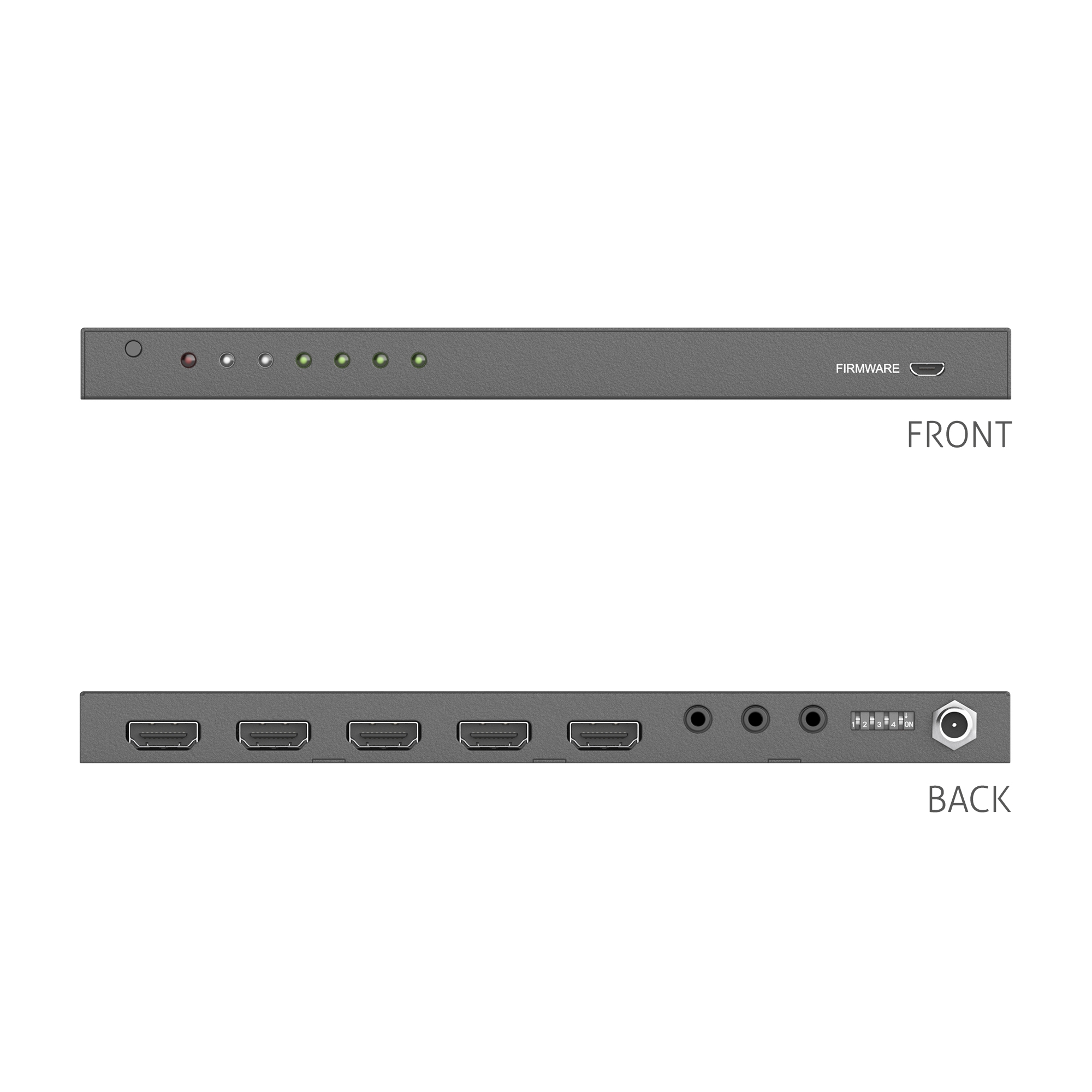

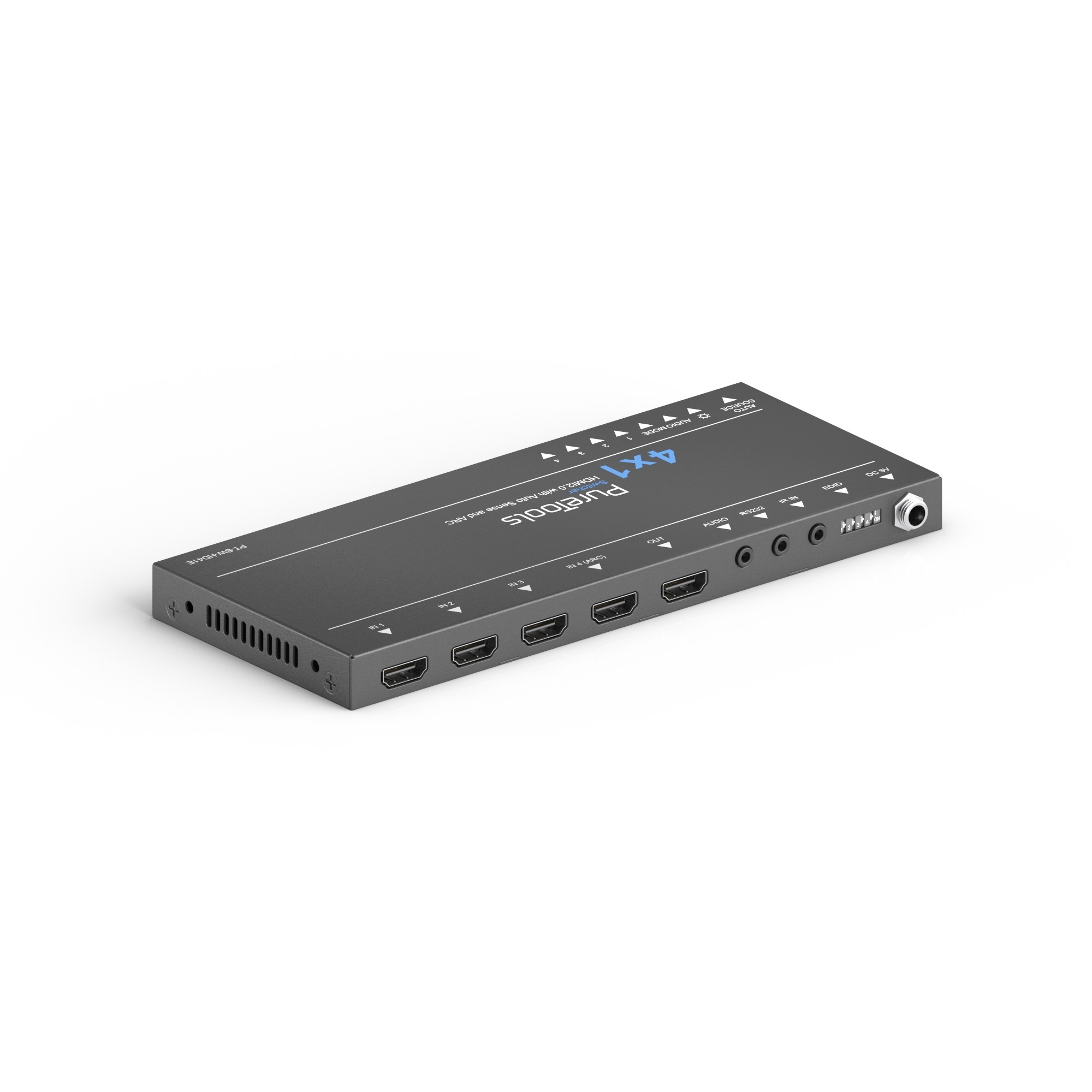

Input connector(s) 4x HDMI, 1x IR (3.5mm Jack), 1x RS232 (3.5mm Jack)
Output connector(s) 1x HDMI, 1x Analog Stereo (3.5mm Jack)
Weiteres
Warranty Optional 5 Years Manufacturer's Warranty
Delivery Content
Zurück
Delivery Content
1x PT-SW-HD41E - 4x1 4K 18Gbps HDMI Switcher with TMDS Auto Sense and ARC
1x Accessory-Kit (2x Mounting Ears, 4x Mounting Screws, 4x Plastic Cushions)
1x RS232 Cable (3.5mm to DB9)
1x IR Kit (1x IR Remote, 1x IR Receiver)
1x Power Adapter (5V DC 1A), 1x User Manual
